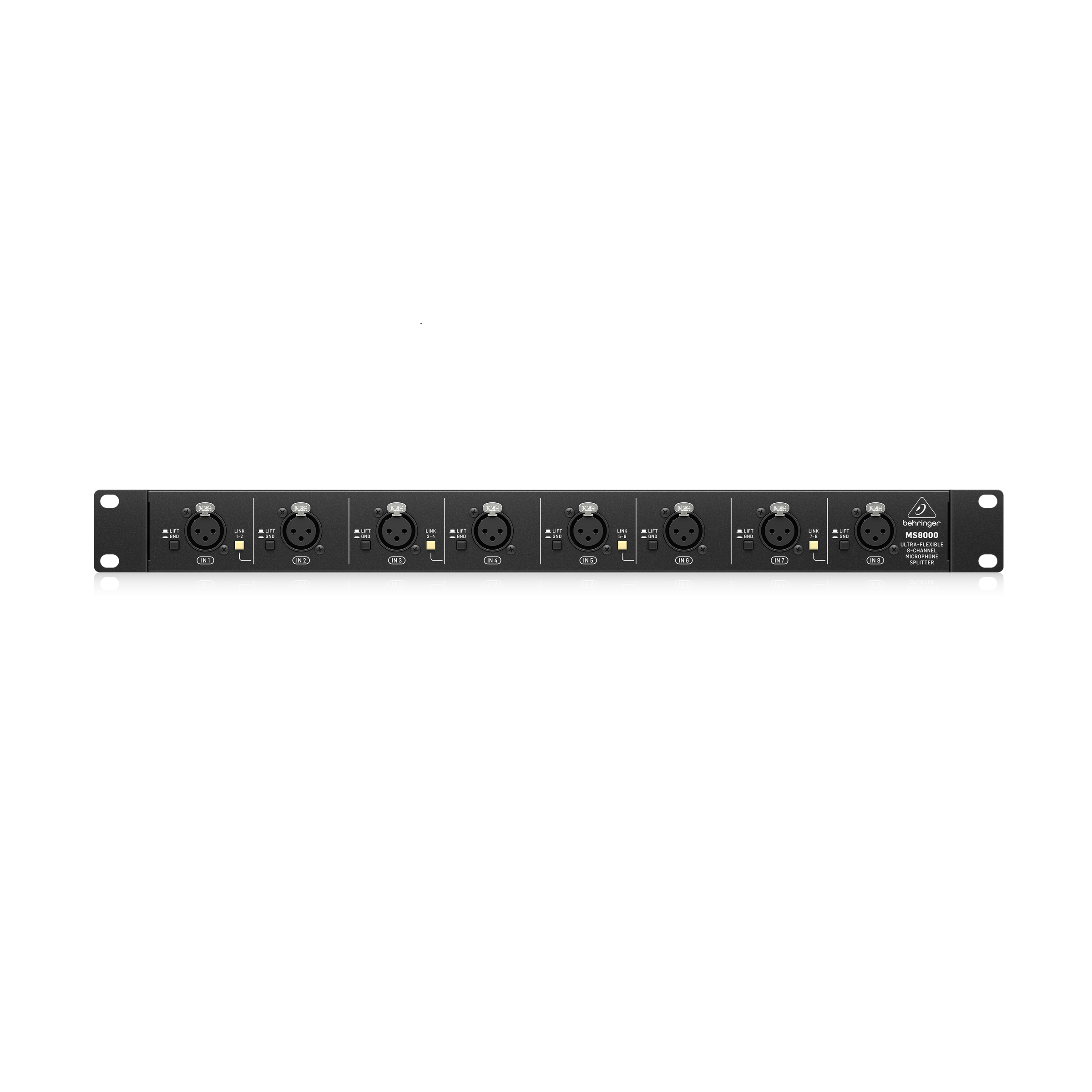

Audio Inputs
| Connectors | 8 x XLR |
| Impedance | 1 kΩ, balanced |
| Max. input level | 30 dBu @ 1 kH |
| Controls | Link
Lift/Ground |

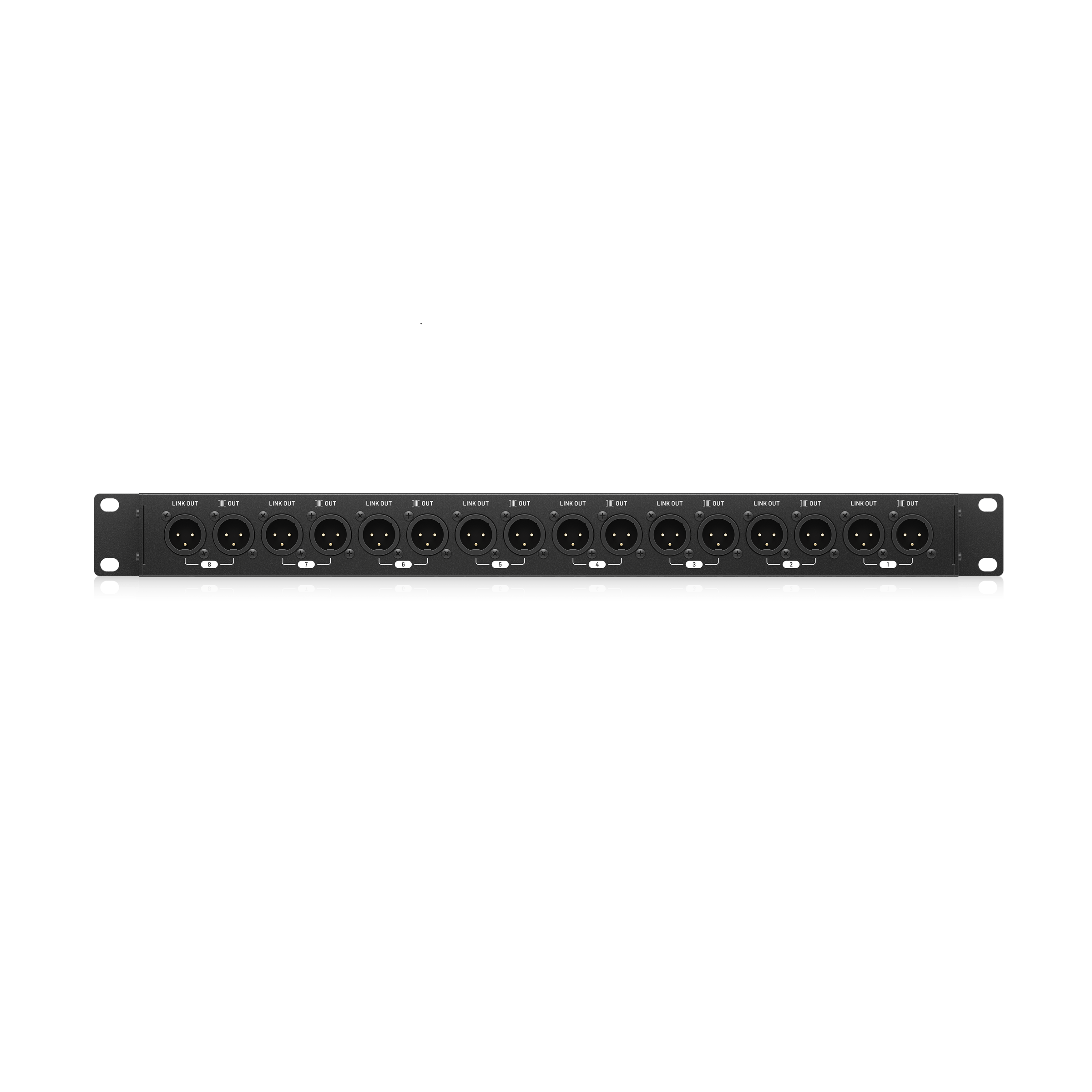

Audio Outputs
| Link connectors | 8 x XLR, parallel to inputs |
| Direct out connectors | 8 x XLR |
| Voltage transformation ratio | 1 : 1.2 |
| Impedance | 2.7 kΩ, balanced |
| Max. output level | 38 dBu @ 1 kHz |
System
| Frequency response | 30 Hz to 30 kHz (±0.5 dB @ +4 dBu) |
| THD + N (Distortion) | 0.02% @ 1 kHz, input level +4 dBu |
| Signal-to-noise ratio | 104 dBu |
| CMRR | >80 dB, typical |
| Insertion loss | +8 dB @ 100 kΩ
-5 dB @ 600 Ω |
| Power requirement | Passive |
Dimensions/Weight
| Dimensions (H x W x D) | 44 x 483 x 65 mm (1.7 x 19.0 x 2.6″) |
| Weight | 1.1 kg (2.4 lbs) |
