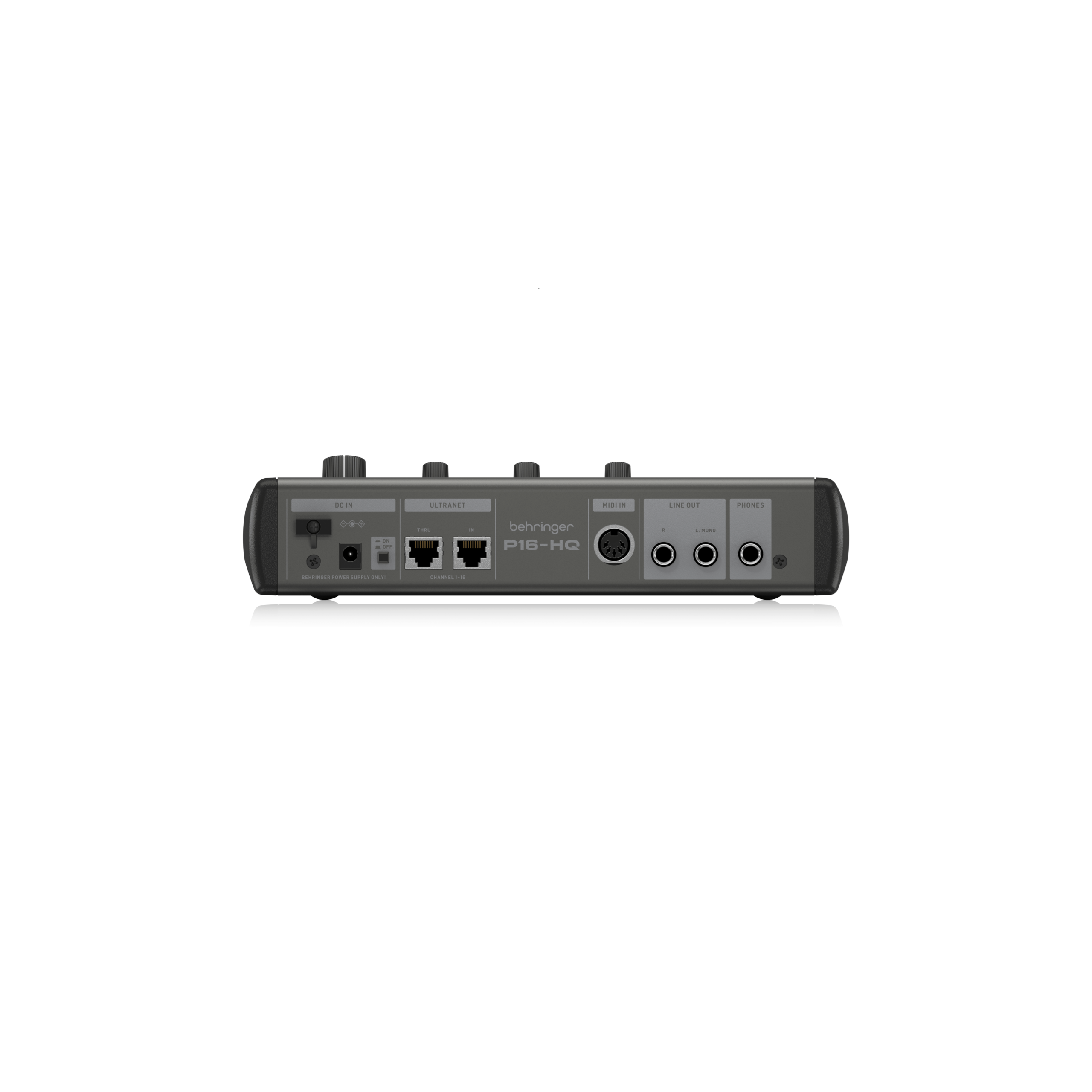

Audio Connections
| Phones | 1/4″ TRS, stereo |
| Line out | 2 x 1/4″ TS, unbalanced |
| Ultranet Thru / In | 2 x RJ45 |
| MIDI in | 5-pin MIDI connector |
Performance Line Out
| Frequency response | 20 Hz – 20 kHz (+0 / -0.5 dB) |
| THD+N | 0.002 % typ. |
| Residual noise | -99 dBu unweighted / -102 a-weighted |
| Crosstalk L / R | <-75 dB |
| Output impedance | 1 kΩ |
| Max. output level | +12.5 dBu @ 200 kΩ load / +2,7 dBu @ 600 Ω load |
Performance Phones Out
| Frequency response | 20 Hz – 20 kHz (+0 / -0.1 dB) |
| THD+N | typ. 0.002 % / 0.007 % @ 350 mW output power |
| Residual noise | -94.5 dBu unweighted / -97.5 dBu A-weighted |
| Crosstalk L / R | <-90 dB |
| Max. output level | 50 mW @ 600 Ω load 100 mW @ 300 Ω load 400 mW @ 30 Ω load |
Controls
| Equalizer | Bass: ±12 dB @ 100 Hz, shelving Mid: ±12 dB, semi-parametric Frequency: 100 Hz to 10 kHz, adjustable Treble: ±12 dB @ 10 kHz |
| Output | Limiter: Ratio ∞: 1 Level: -20 to +15 dBu (Phones) |
