| System Type | 1 Way 1 Speaker Bass Reflex |
| Frequency Range(-10dB) *1 | 45Hz~3.1kHz |
| Frequency Response(±3dB) *1 | 50Hz~3.0kHz |
| Sound Pressure Level *2 | 93dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 | 120dB(Peak 126dB) |
| Power Capacity | Continuous 500W, Program 1000W, Peak 2000W |
| Dimensions(H×W×D) | 465mm×580mm×488mm (18.3″×22.8″×19.2″) |
| Shipping Dimensions(H×W×D) | 597mm×706mm×615mm (23.5″×27.8″×24.2″) |
| Net Weight | 24.0kg(52.9lbs) |
| Shipping Weight | 30.6kg(67.5lbs) |

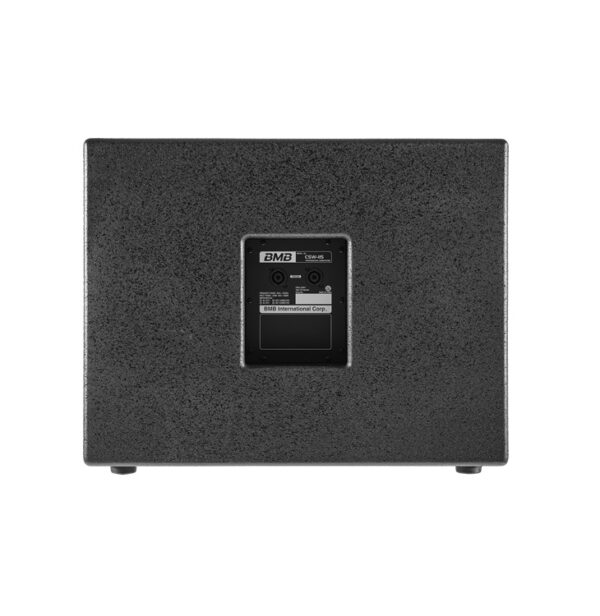

| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4″), Depth 96mm(3.8″) |
| LF Driver | 380mm(15.0″) Cone, 75mm(3.0″) Voice Coil×1 |
| Enclosure Construction | 15mm(0.6″) Plywood |
| *1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
|

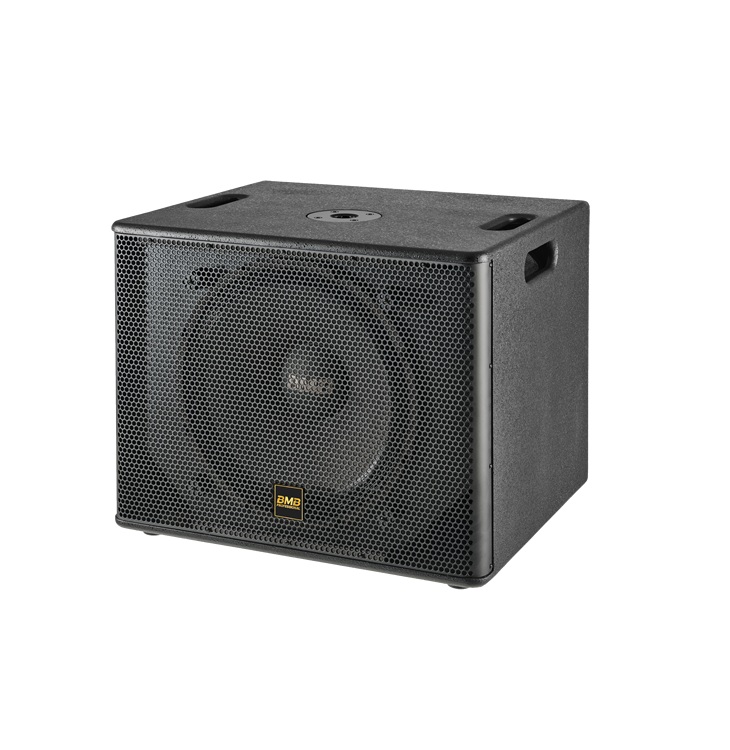

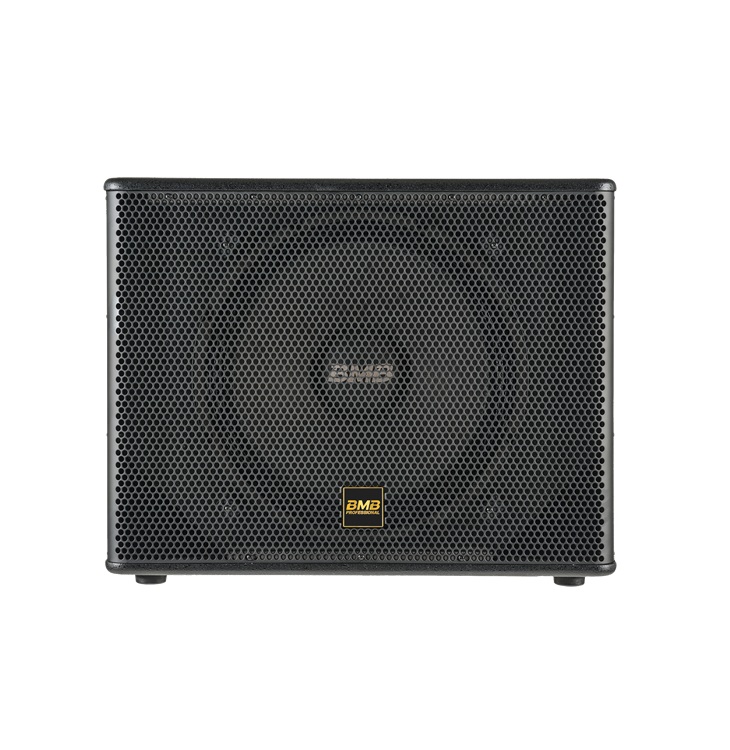

BMB CSW-115 15″ High power subwoofer
A subwoofer for karaoke developed by karaoke maker BMB that pursues comfortable singing.
By adopting a triangular bass reflex hole, you can make a speedy beat even though it is a bass reflex type.
In addition, the height of the main body can be lowered, resulting in a compact housing.

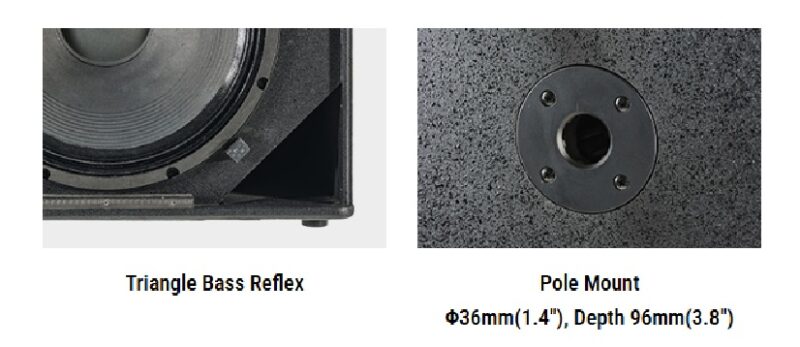

- Triangle Bass Reflex
Will provide comfortable and speedy beat. - Pole Mount
Add speaker on the top of subwoofer via pole.
