FEATURES
- Remote light tracking technology
- Long distance, fiber optic cabling, low latency
- Real-time tracking cursor and target cursor
- Support import/export light library, show files

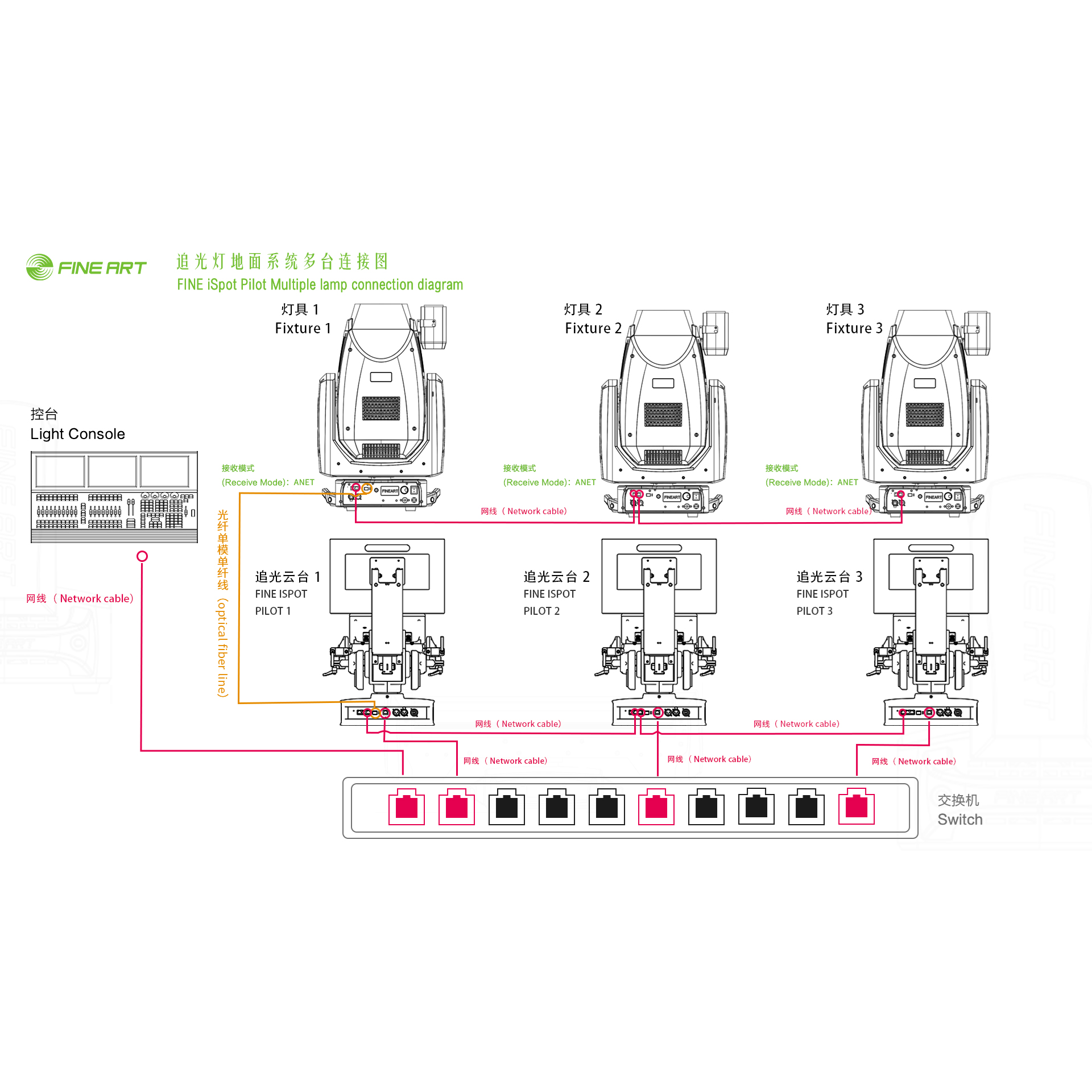

- Multi-device control, can support 12 devices to track the same target
- Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment
- Support PosiStageNet (PSN) protocol
- Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs
- The storage of color material and position material under multi-device is independent from that of single light
- Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights
SHAKE PARAMETERS
- X-axis movement range: -80~80°
- Y-axis movement range: -40~40°
CONTROL AND PROGRAMMING
- Tracking Control: Manual
- Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction
- 4 physical command buttons
- 4-way custom encoder
- 2-way entity attribute adjustment push rod L=60mm
- Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols
ELECTRONIC CONTROL TECHNOLOGY
- Optical fiber communication technology, communication distance, low delay;
- Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning
ELECTRICAL AND INTERFACE
- Input voltage range: 100-240V~ 50/60Hz
- Input power: 30W
- power factor: ≥0.92
- Fiber port: single-mode LC fiberx1
- Ethernet port: RJ45 x 3(Video/PSN)
- ArtNet port: RJ45x1working environment
WORKING TEMPERATURE
- -10°C ~40°C
SIZE AND WEIGHT
- Product size: 380 x 630 x 577mm
- Packing size: 813 x 570 x 906mm
- Net weight: 14 kg (30lbs)
- Gross Weight: 75 kg(165lbs)
PACKAGE
- 1pc / flight case
INSTALL
- Horizontal or bracket installation
IP RATE
- IP 20
