Mixer
| Mixing capabillity | 8 inputs with confi gurable routing – 2 outputs |
Audio Inputs
| Mic/Line with priority/ducking input | 2 x 5-pin Euroblock connector (channel A, E) |
| Mic/Line with summed RCA | 6 x 3-pin Euroblock connector,
6 x stereo RCA (channel B, C, D, F, G, H) |
| Impedance | Balanced mic/line: 20 kΩ
Unbalanced line and RCA: 10 kΩ |
| Maximum input level | 4.88 V (+16 dBu) |
| Microphone phantom power | 48 V |
Audio Outputs
| Output | 2 x 3-pin Euroblock connector |
| Gain range | -(infinity sign – +10dB |
| Output max level | 9.6 V (+22 dBu) |
Controls

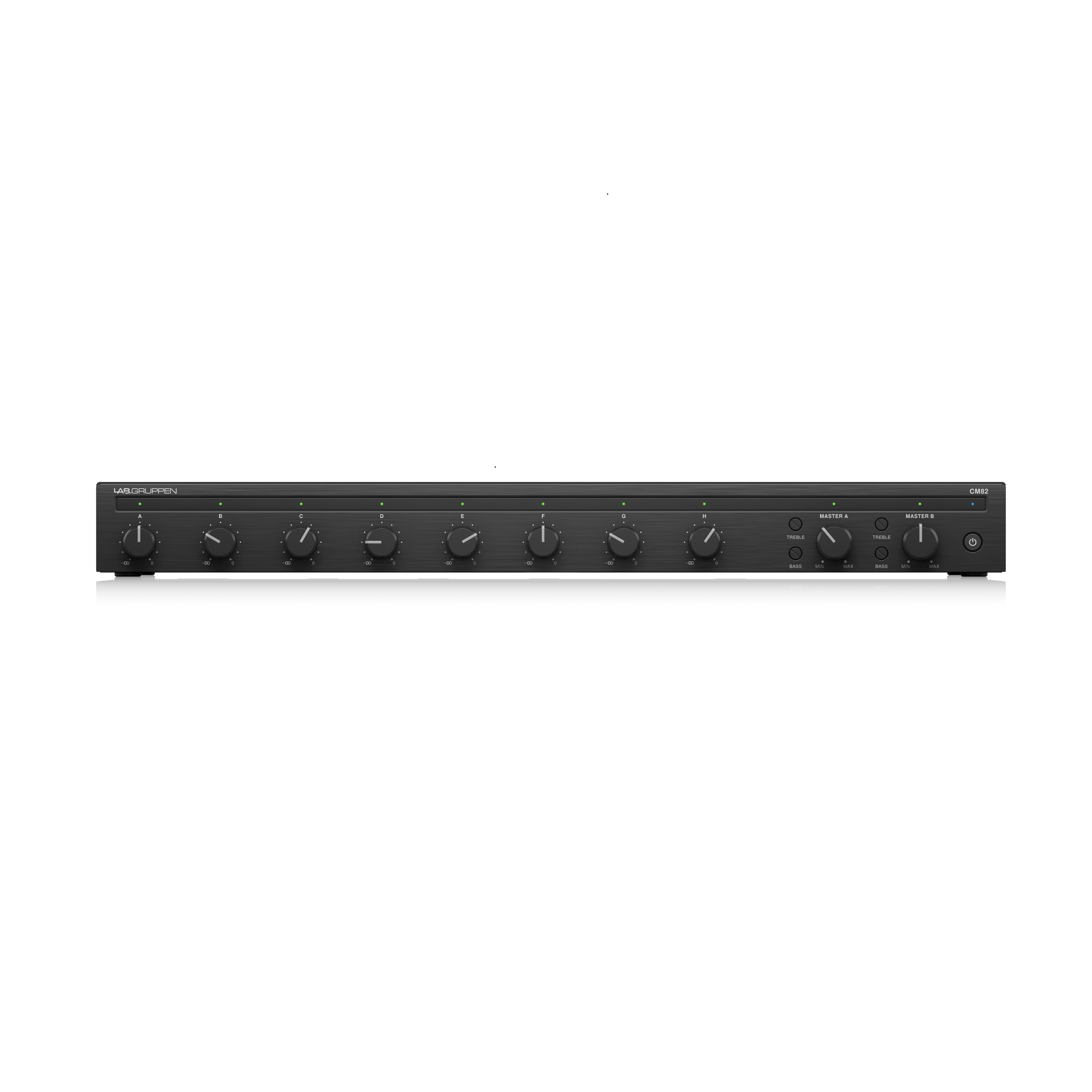

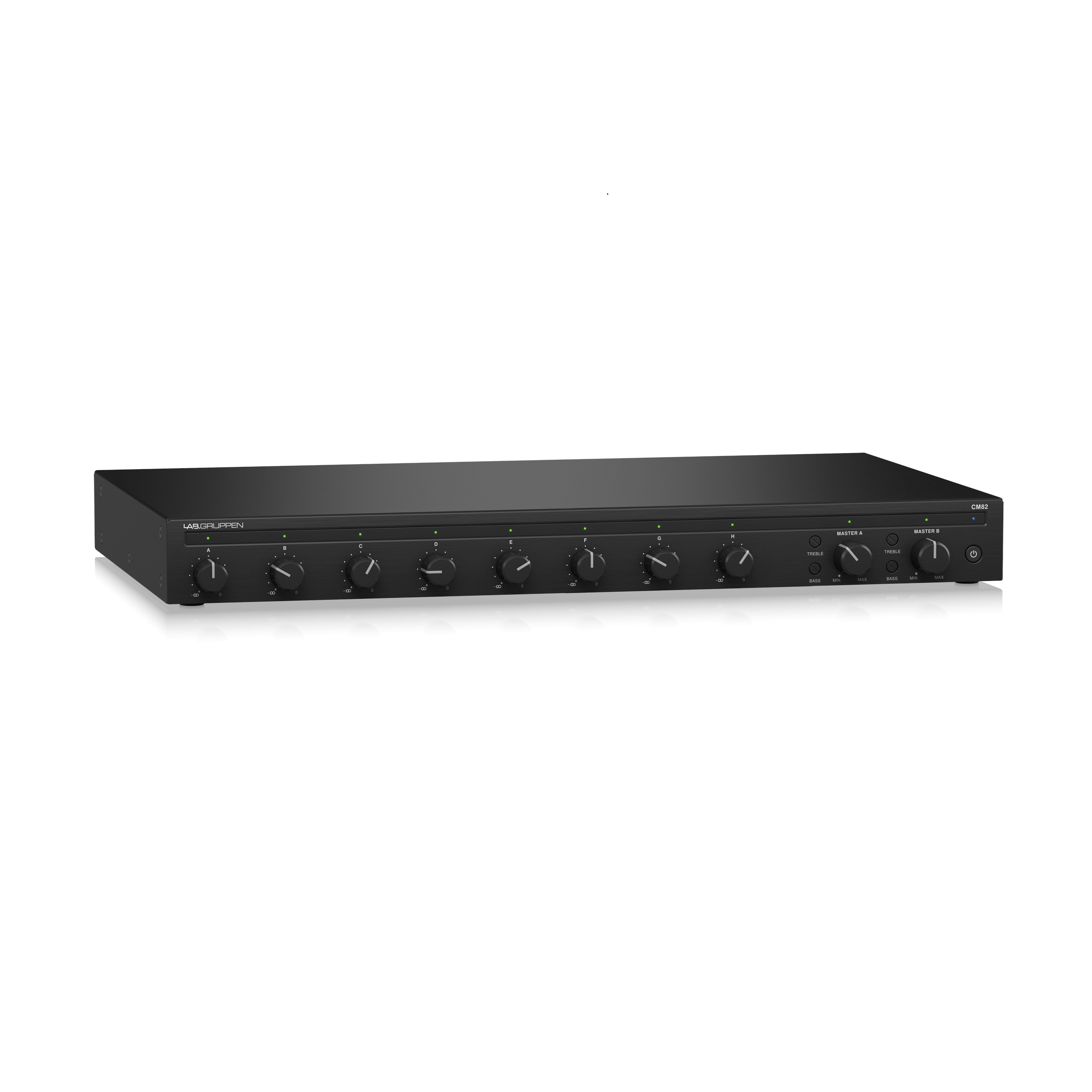

| Front | Power standby button, input and output gain control, tone controls – bass and treble |

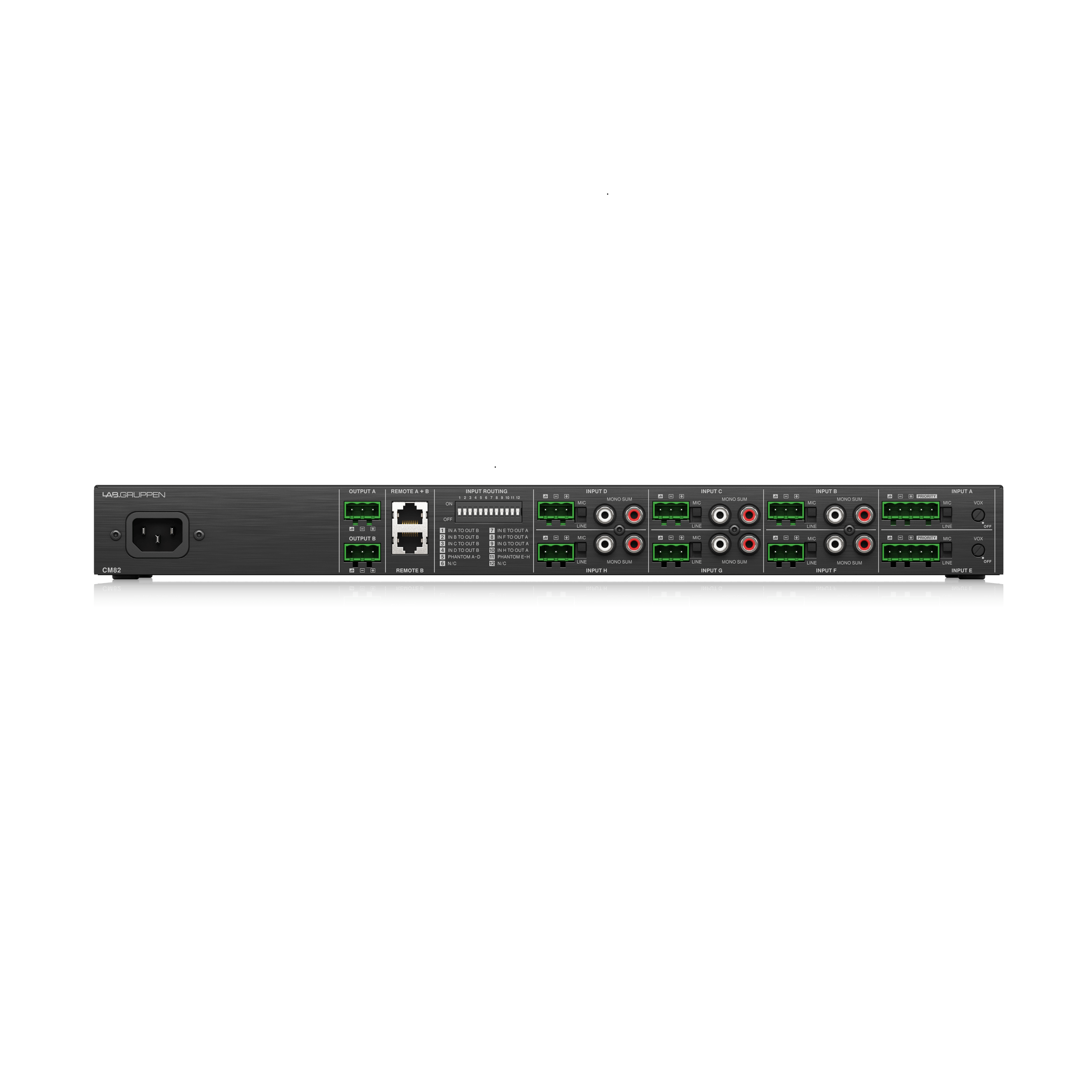

| Rear | mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only) |
Tone Controls
| Bass | ±10 dB @ 100 Hz |
| Treble | ±10 dB @ 10 kHz |
Indicators
| Power | On (blue), force standby (red), standby (yellow) |
| Inputs | |
| Signal (green LED) | >12.3 mV (-36 dBu) |
| Clip (red LED) | 4.88 V (+16 dBu) |
| Master | |
| Signal (green LED) | >-50 dBu |
| Limit (red LED) | 3 V (+12 dBu) |
System
| Remote connector | 2 x RJ45 Ethernet connector |
Performance
| Distortion | <0.05% |
| Frequency response | 20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk (2 channel models) | >70 dB |
| Signal-to-noise | >97 dBA |
Power Supply, Voltage (Fuse)
| Main voltage | Universal 100-240 V~, 50/60 Hz |
| Fuse | T 3.15 A H 250 V |
| Power consumption | 20 W |
| Mains connector | Standard IEC connector |
