Specifications
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Display Backlit LCD
Capsule Modules MU-90A condenser or MU-59A dynamic. Accepts some other brands’ with similar
specifications
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
5 switchable levels: -6 dB to 6 dB
RF Power Output 10 mW / 50 mW switchable (country dependent)
Spurious Emission < 4 nW
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging MP-800 / MP-820 charging station or USB Type-C
Dimensions 51 × 272 mm (Ø × L)
Weight Approx. 330 g

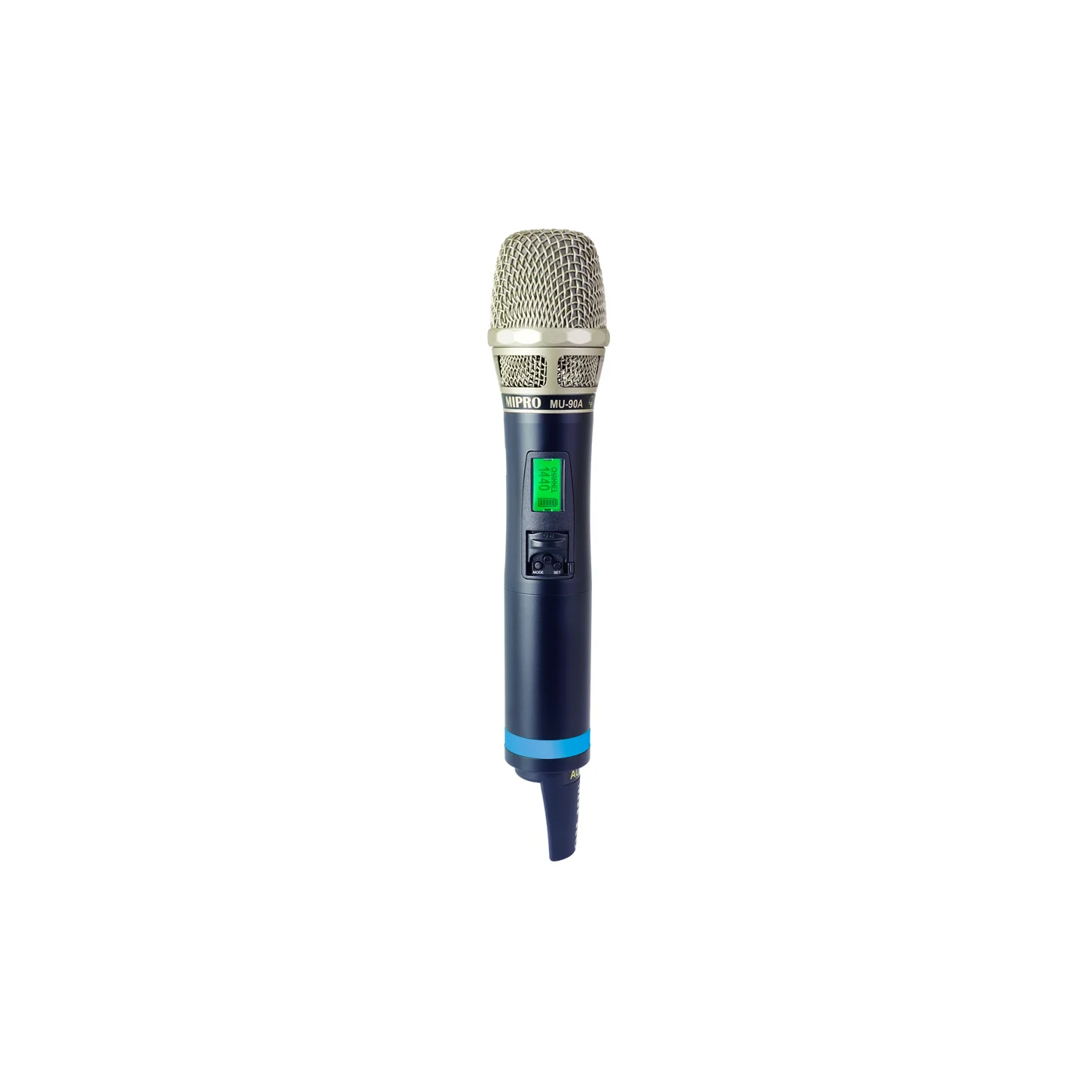

MIPRO ACT-700H UHF Analog Handheld Transmitter
The ACT-700H is a UHF analog wideband handheld transmitter with a metal housing, low handling noise, and MIPRO’s patented multifunction control module. It supports interchangeable condenser and dynamic capsules and offers AA or 18500 Li-ion battery operation with USB-C charging, making it suitable for professional stage use.
- MIPRO’s analog wideband handheld transmitter designed for the ACT-700 Series receivers, ensuring stable and reliable performance.
- Ergonomic matte black metal housing offers a comfortable grip, ultra-low handling noise, and a professional, understated appearance.

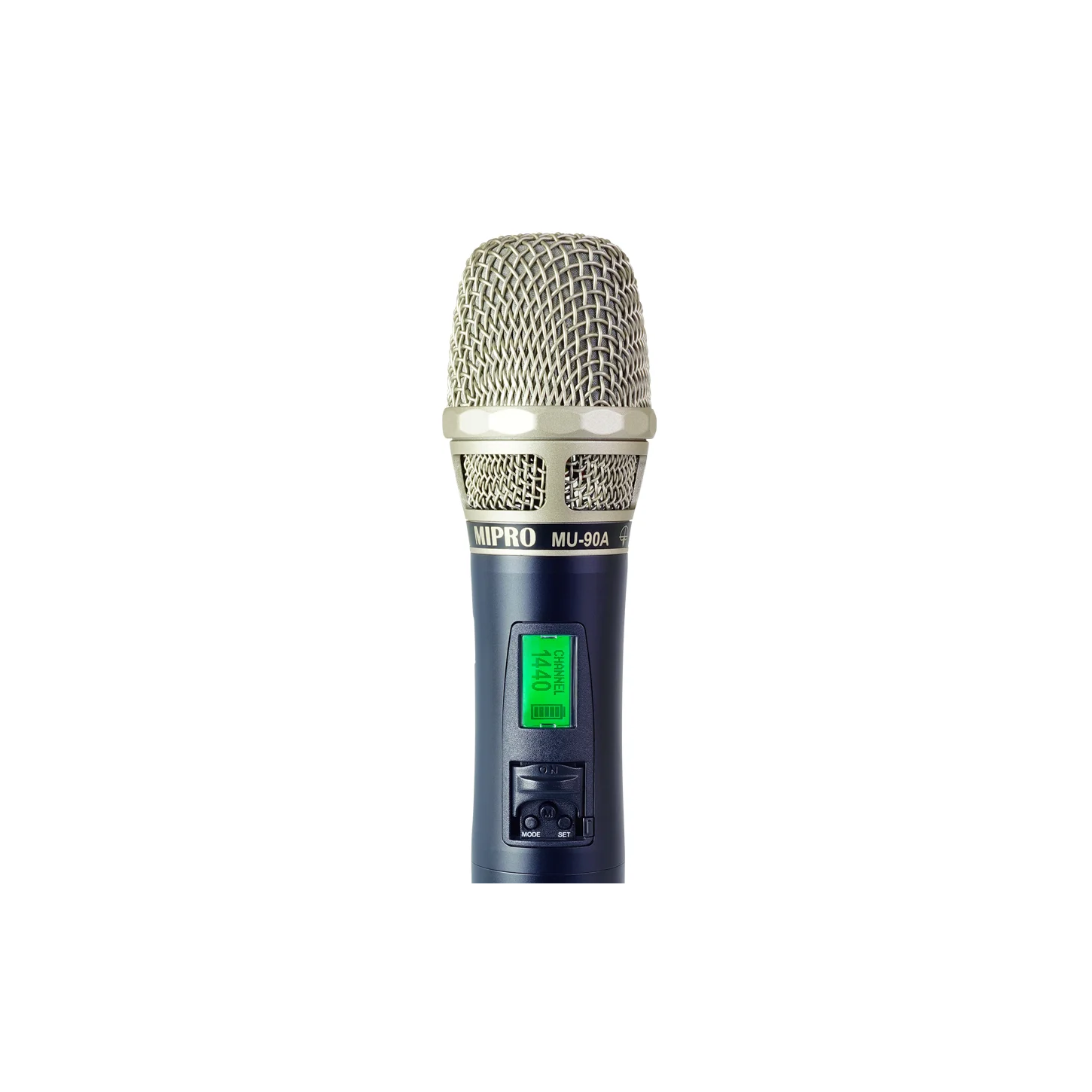

- Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and a locking slider to prevent accidental operation.
- Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for protection against impact, rolling, and pop noise.
- Standard with MU-90A supercardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules and compatible ones from other brands.
- Supports essential functions including mute mode, input sensitivity, and RF output power with clear, user-friendly display.
- Five-stage gain adjustment ensures optimal audio input across varying vocal applications.
- Incorporates MIPRO’s exclusive ACT™ function for quick and accurate frequency synchronization.

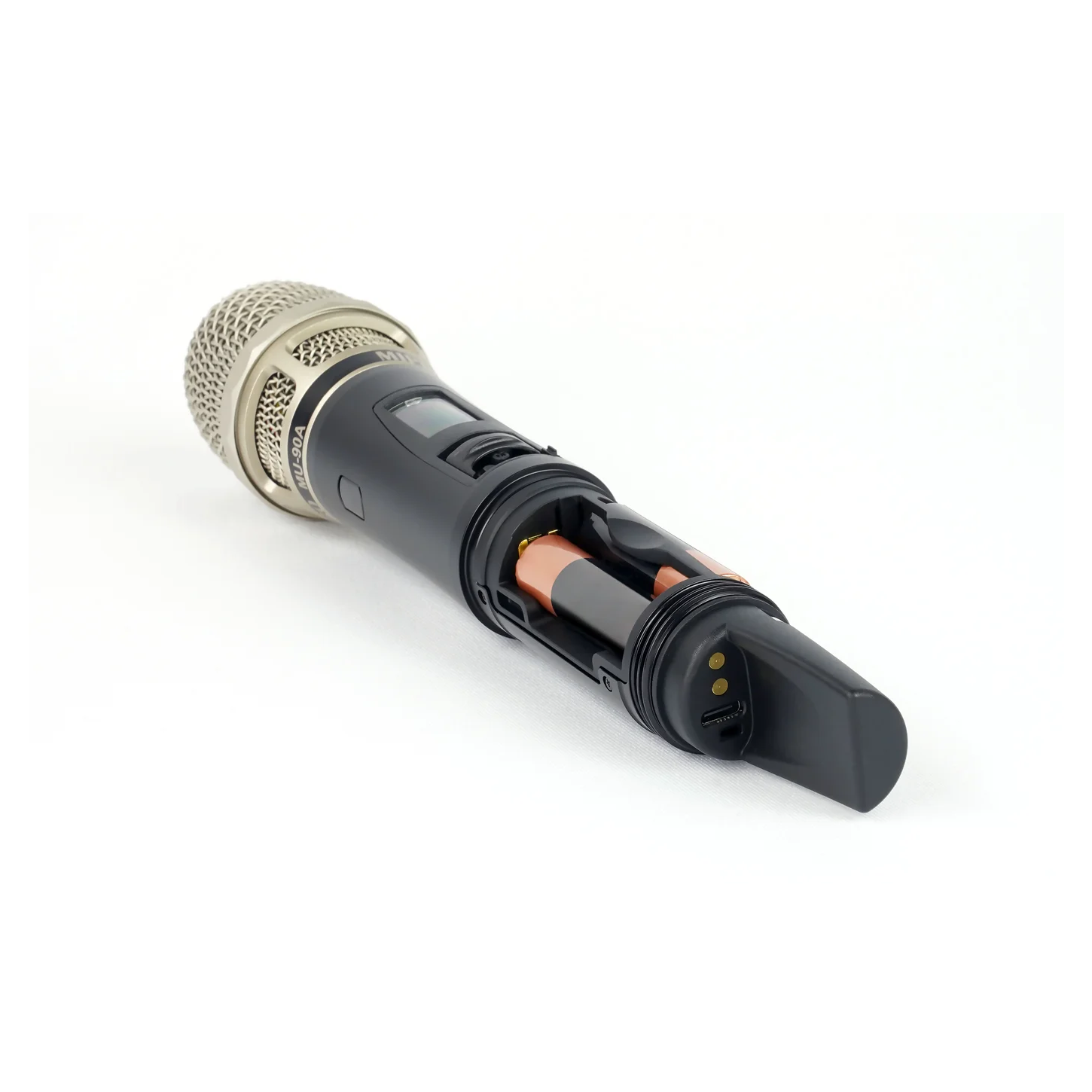

- Patented dual-purpose battery compartment allows easy switching between AA and rechargeable Li-ion batteries.

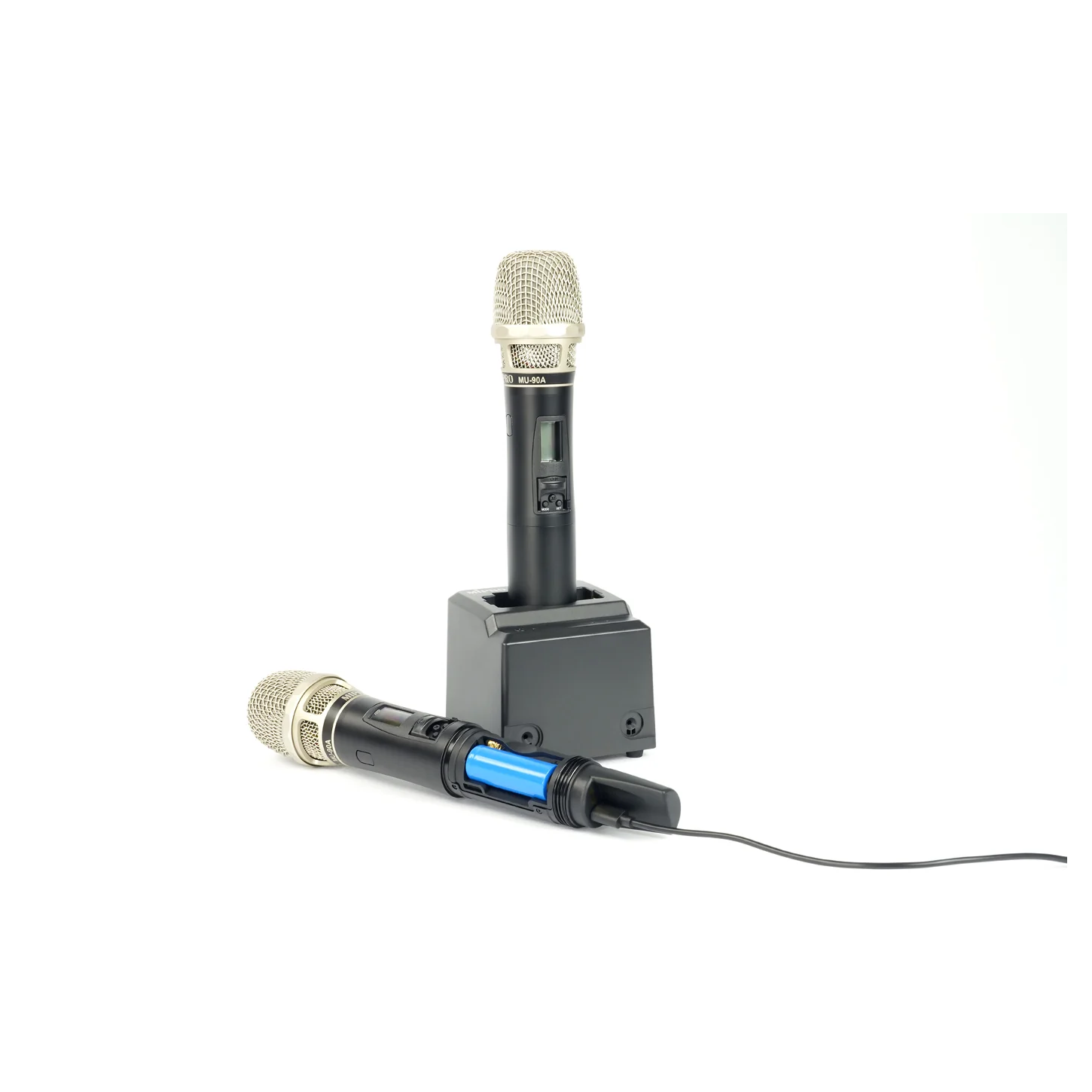

- Built-in USB Type-C charging port and charging contacts with protection circuitry support both cable and drop-in charging.
- Lower housing features a replaceable color-coded ID ring for channel identification. A patented antenna cover houses a high-efficiency wideband transmitting antenna.
ACT-700H 為 UHF 類比寬頻手握式發射器，採金屬外殼與低手持雜音設計，搭載 MIPRO 專利多功能操作模組。支援電容或動圈可換式音頭，電源可選 AA 電池或 18500 鋰電池並支援 USB-C 充電，適合專業舞台使用。
- MIPRO 類比寬頻系列專用手握式發射器，適用於搭配 ACT-700 系列接收機，性能穩定可靠。
- 採用符合人體工學設計的霧黑色全金屬管身，握感舒適，具備超低手持雜音特性，展現專業與沉穩形象。
- 搭載專利設計的多功能操作模組，整合電源開關、靜音、設定與選項鍵、LCD 顯示器與開關固定推鈕，操作直覺並防止誤觸。
- 裝備獨家造型音頭模組，上網罩可拆洗，下網罩採外螺牙固定，具防滾、防摔與防噗功能，聲音清晰自然。
- 音頭採模組化設計，標配 MU-90A 超心型電容式音頭，亦可更換 MIPRO 各式電容或動圈式音頭，並支援他牌相容規格音頭。
- 支援常用功能設定：靜音模式、靈敏度調整、發射功率，操作簡便，資訊一目了然。
- 提供五段增益控制，可依音量大小調整輸入強度，提升收音品質。
- 採用 MIPRO 獨創的 ACT 自動對頻技術，與接收機快速精準同步頻率。
- 首創電池座兩用專利設計，可快速更換 AA 電池或鋰離子充電電池，提升使用彈性。
- 整合 USB Type-C 充電介面與充電座電極，具防呆設計與充電保護電路，支援充電線與專用充電座兩種方式。
- 下管身可更換色環作為頻道識別，尾部搭載專利天線保護蓋，內藏高效率寬頻發射天線，結構堅固、操作便利。
