Specifications
Frequency Band UHF 470 – 1000 MHz
Gain Attenuation 3.5 dB (typ.)
Max. RF Input Power 30 dBm (1 W)
Input Connectors 1 × TNC
Output Connectors 2 × TNC
System Impedance 50 Ω
Dimensions 55 × 90 × 25 mm (W × H × D)
Weight Approx. 110 g
MIPRO AD-12 Passive Antenna Divider / Combiner
The AD-12 is a passive UHF antenna divider/combiner supporting 1-to-2 or 2-to-1 configurations for multi-receiver systems.
- Distributes one antenna signal to two receivers, or combines two antenna signals into one receiver, offering flexible configurations for multi-channel reception.
- Compatible with MPB-30 booster and MP-10 power supply to integrate long-distance antenna signals and minimize cable loss.
- Passive distribution and power isolation design reduce ground loop noise and enhance system stability.
AD-12 為 UHF 被動式天線分配 / 整合器，適用於一分二或二合一配置。
- 可將單一天線訊號分配至兩台接收機，或反向整合兩支接收天線訊號至一部接收機，靈活應用於多頻道接收或特殊天線架構。
- 可搭配 MPB-30 強波器與 MP-10電源供應器 ，整合遠距離天線訊號，有效減少長距電纜的訊號衰減。
- 採用被動分配與電源隔離設計，降低地迴路雜訊干擾風險，提升系統穩定性。
相關商品
Mipro
貨號：
MIPRO TA-80 UHF Digital Plug-on Transmitter
Mipro
貨號：

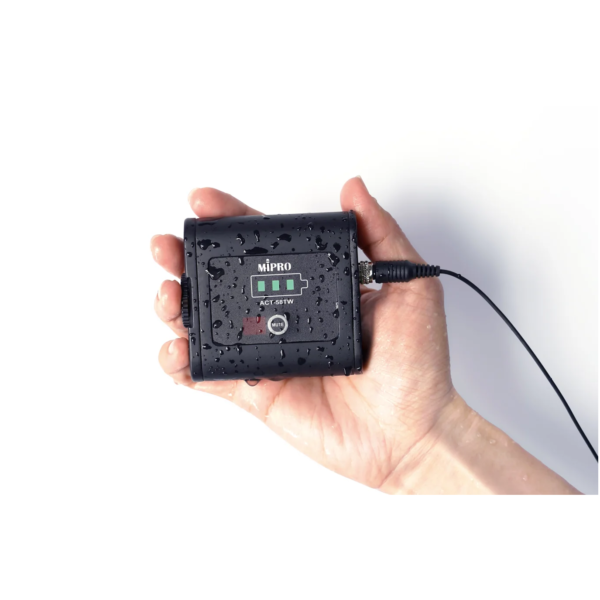

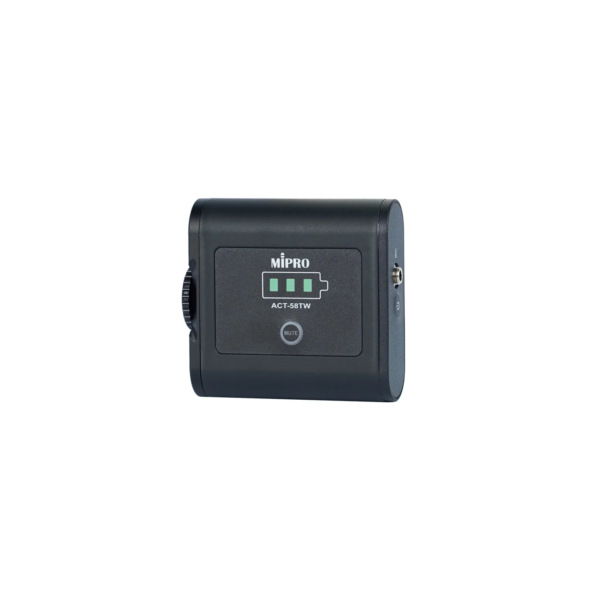

MIPRO ACT-58TW 5 GHz Digital Bodypack Transmitter
Mipro
貨號：

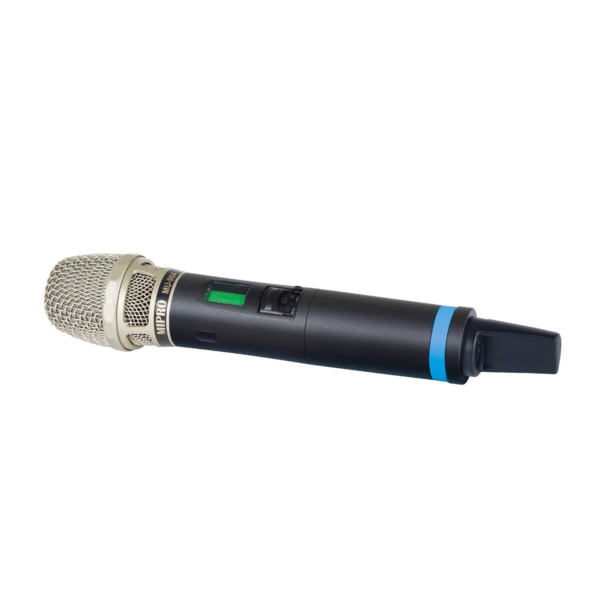

MIPRO ACT-240H 2.4 GHz Digital Handheld Transmitter
Mipro
貨號：
MIPRO ACT-700T UHF Analog Bodypack Transmitter
Mipro
貨號：
Mipro MR-823V U頻無線咪
Mipro
貨號：

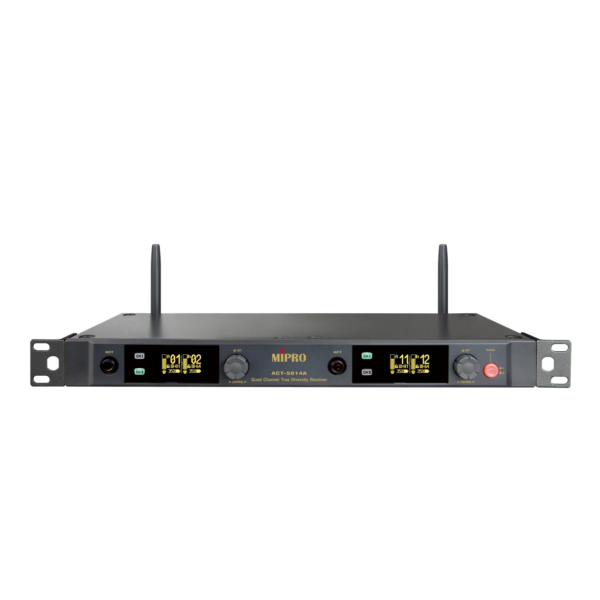

MIPRO ACT-5814A 5.8 GHz Digital Dual-Channel Receiver
Mipro
貨號：

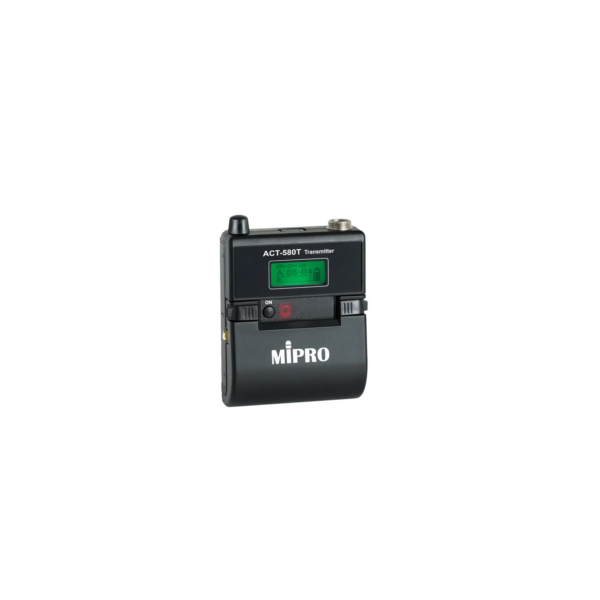

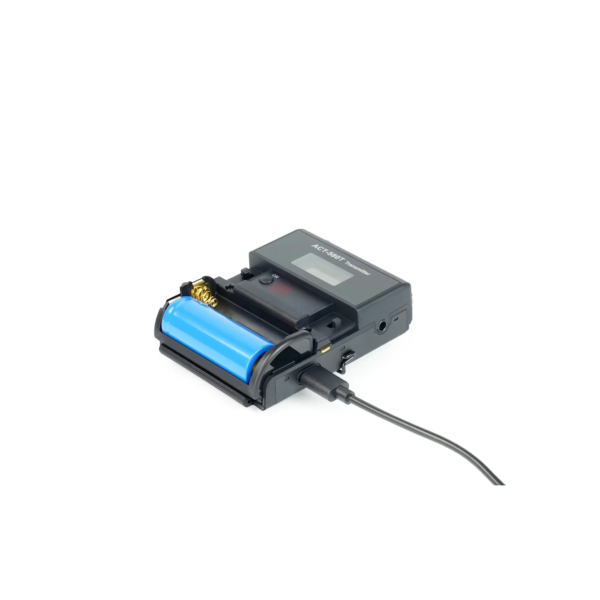

MIPRO ACT-580T 5.8 GHz Digital Bodypack Transmitter
