Specifications
Frequency Band ISM 5.6 – 5.9 GHz
Gain 10 dB
Max. RF Input Power < 13 dBm (20 mW)
Intermodulation
Distortion > 55 dBc
Input Connectors 4 × TNC
Output Connector 1 × TNC
System Impedance 50 Ω
Power Supply DC 12 – 15 V, AC 100 – 240 V
Dimensions 210 × 44 × 101 mm (W × H × D)
Weight Approx. 836 g

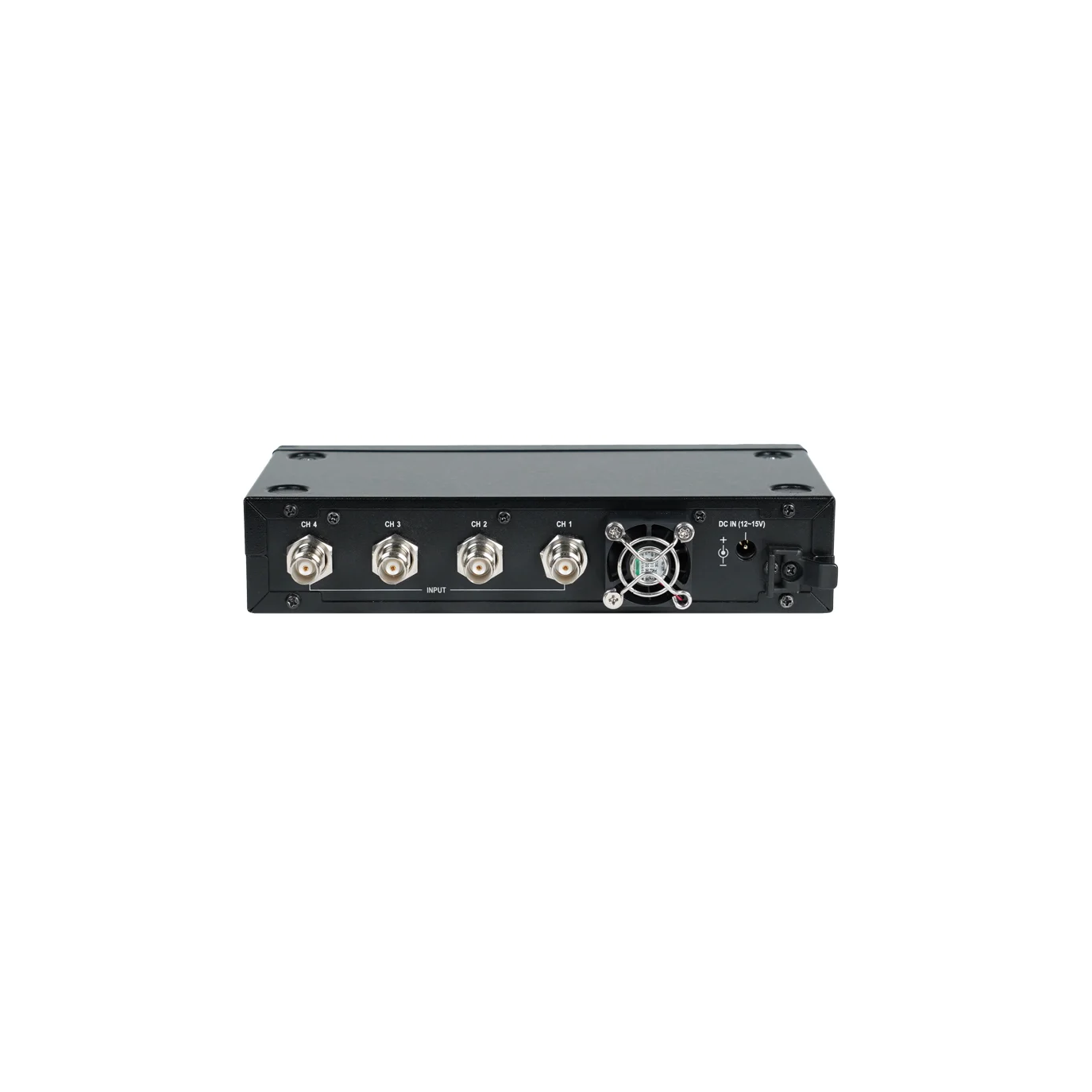

MIPRO AD-58 5 GHz 4-Channel Transmitting Antenna Combiner
The AD-58 is a 5 GHz combiner that merges up to four MI-58 transmitters into a single antenna output. With a built-in 10 dB gain and RF overload indicators, it simplifies installation and ensures clean, interference-free IEM transmission.
- Combines up to four 5 GHz MI-58T / MI-58TD transmitters into a single antenna output, streamlining antenna infrastructure.
- Built-in high-linearity amplifier reduces signal loss and intermodulation distortion, ensuring clear and stable output quality.
- Reduces interference from multiple antennas and simplifies adjustments, enhancing multi-channel transmission stability and reliability.
AD-58 為 5 GHz 天線整合器，可整合最多四組 MI-58 發射器訊號至單一天線。
- 整合最多 4 台 5 GHz 頻段的 MI-58T / MI-58TD 發射器，集中至單一天線發射，有效簡化天線架構。
- 內建高線性放大器，有效降低訊號損失與互調失真，確保清晰穩定的輸出品質。
- 減少多支天線干擾與複雜調整，提升多頻道傳輸的穩定性與可靠性。
