Specifications
Chassis EIA standard half-rack (9.5”) metal case with a rotary control knob
Display Graphic OLED displays all functions and settings. The volume indicators for easily
identifying the input volume so as to make proper status adjustment.
Frequency Band ISM 2.4 GHz
Preset Channels Presets 8 channels. 64 ID codes are allowed to be set for each channel to prevent the
same channel from being interfered within the same field
Channel Setting ACT™ sync
Audio Sampling 48 kHz / 24-bit
RF Power Output < 10 mW (CE compliance) or country dependent
Audio Input 2 × XLR / 6.3 mm TRS combo socket
Audio Output 2 × 6.3 mm TRS (Loop Out)
Earphone Output 1 × 6.3 mm and 1 × 3.5 mm TRS with volume control
Networking Interface 2 × RJ-11 ACT-BUS
Power Supply DC 12 – 15 V, AC 100 – 240 V
Dimensions 210 × 44 × 91 mm

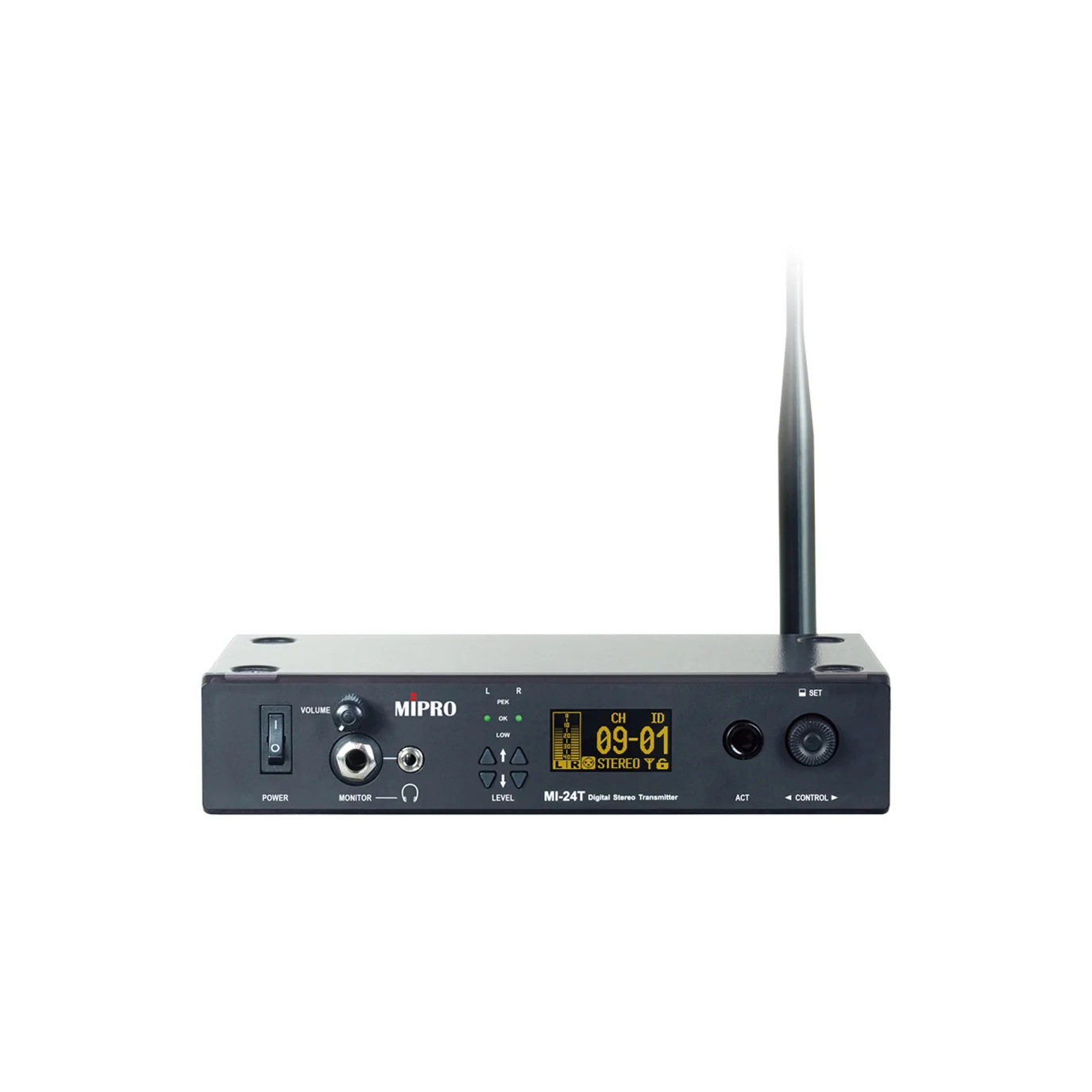

MIPRO MI-24T IEM 2.4 GHz Digital Stereo Transmitter
The MI-24T is a 2.4 GHz digital in-ear monitor transmitter delivering stable transmission and stereo monitoring. It features intuitive operation and easy installation, designed for compact performances and portable setups.
- Compact and versatile, the MI-24T operates in the license-free ISM 2.4 GHz band with 8 selectable channels—ideal for entry-level monitoring or small-scale events.
- Low-latency digital encoding (<3.5 ms) ensures precise, real-time monitoring when paired with compatible receivers.
- Supports 48 kHz / 24-bit digital audio for detailed, high-quality sound reproduction.
- Each channel can be assigned 1–64 user IDs and paired quickly via MIPRO’s ACT automatic synchronization.
- OLED display and jog wheel provide a clear, intuitive interface with a lock function to prevent accidental adjustments.
- XLR / 6.3 mm combo input supports balanced and unbalanced sources; 6.3 mm LOOP OUT allows easy daisy-chaining to other devices.
- Includes 6.3 mm and 3.5 mm headphone outputs with adjustable volume for on-the-spot monitoring.
MI-24T 為 2.4 GHz 數位立體聲入耳式監聽發射器，提供穩定傳輸與立體聲監聽，適合小型演出與行動監聽系統應用。
- 採用 ISM 2.4
- 應用低延遲數位編碼技術，與接收端搭配可實現 <3.5 ms 傳輸延遲，確保精準監聽需求。
- 採用 48 kHz / 24-bit 數位音訊規格，保留更多聲音細節，提供高音質傳輸表現。
- 每組頻道可獨立設定 1～64 組識別碼，搭配 ACT 自動對頻，迅速完成發射與接收配對。
- 配備 OLED 顯示螢幕與飛梭旋鈕，介面直覺易用，具鎖定功能可防止誤觸。
- 音訊輸入為 XLR／6.3 mm 複合式插座，另設 6.3 mm LOOP OUT，可靈活串接其他設備。
- 提供 6.3 mm 與 3.5 mm 耳機輸出，支援音量調整，方便現場即時監聽。
