Connector Type
RJ45 (for Ethernet)
Power Requirements
PoE Class 0
Weight
0.8 lbs. (362 g)
Product Dimensions
1.4 in. x 5.3 in. x 5.3 in. (3.6 x 13.4 x 13.4 cm)
Control Software
Shure Designer
Cable Requirements
Cat 5e or higher
Operating Temperature Range
−6.7 to 40°C (20 to 104°)
Frequency Response
(-3 dB): 100Hz to 20kHz
SKUs

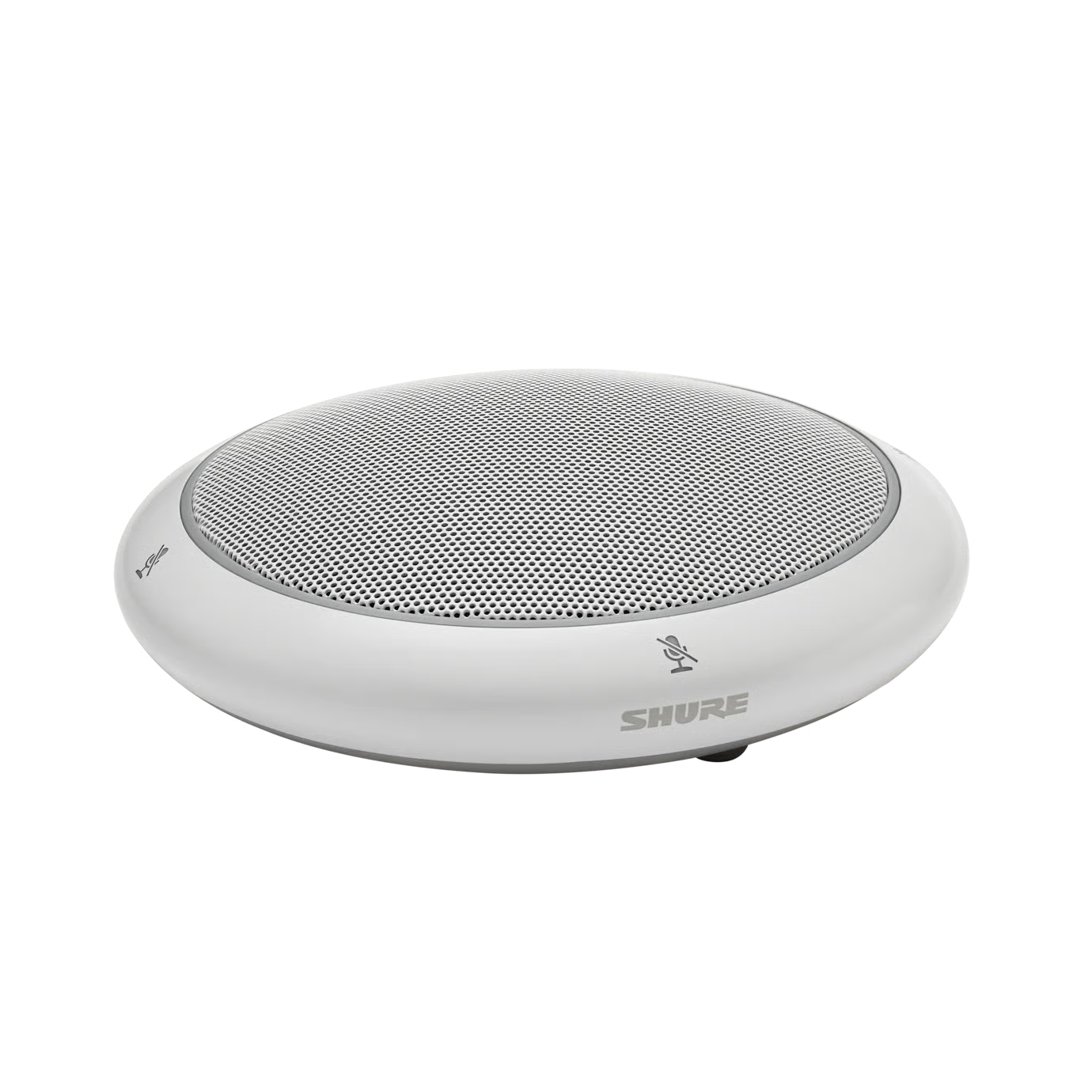

MXA320W
Conferencing Table Array Microphone, White

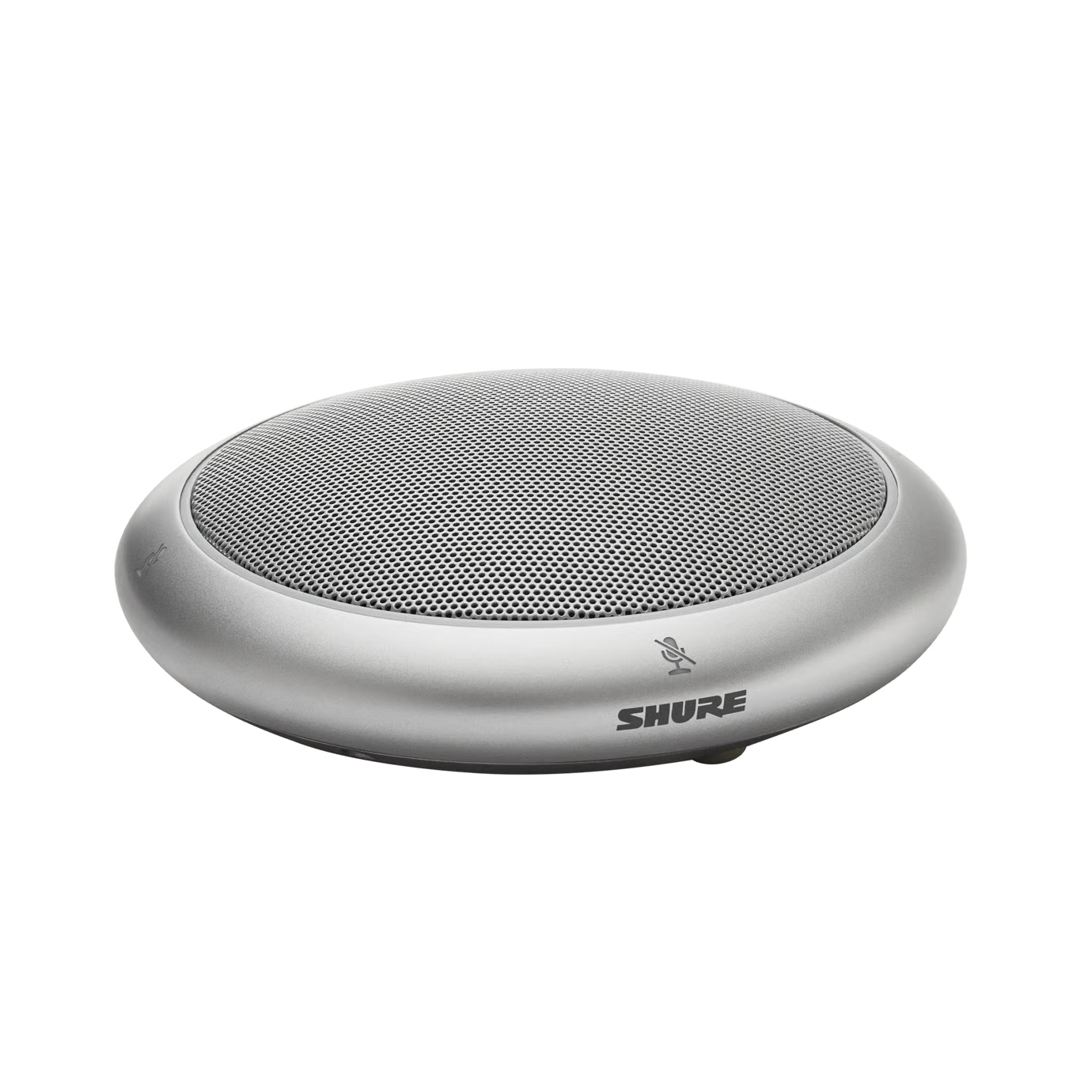

MXA320AL
Conferencing Table Array Microphone, Aluminum

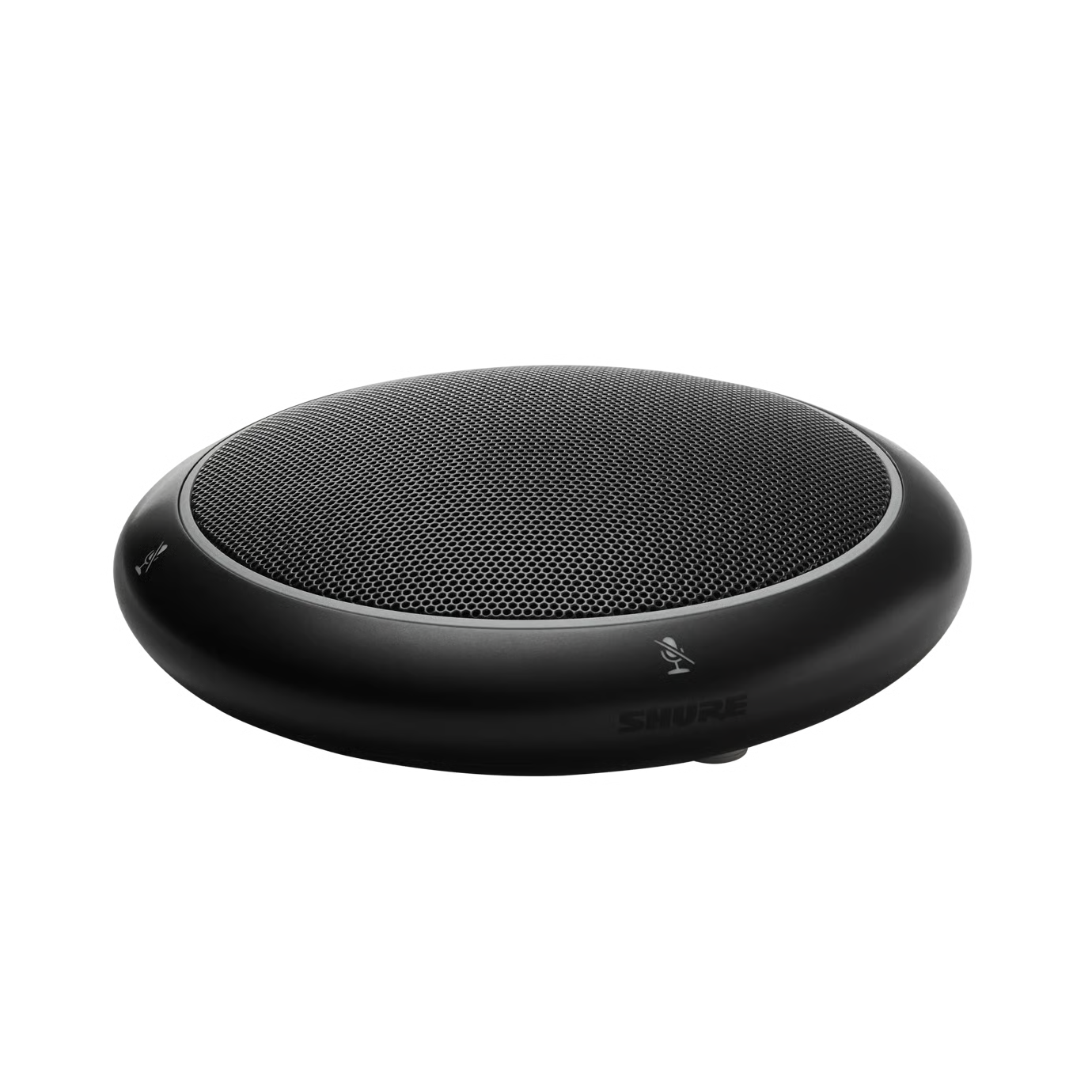

MXA320B
Conferencing Table Array Microphone, Black
AVAILABLE ACCESORIES
A310AL-FM
Flush Mount, Aluminum
A310B-FM
Flush Mount, Black

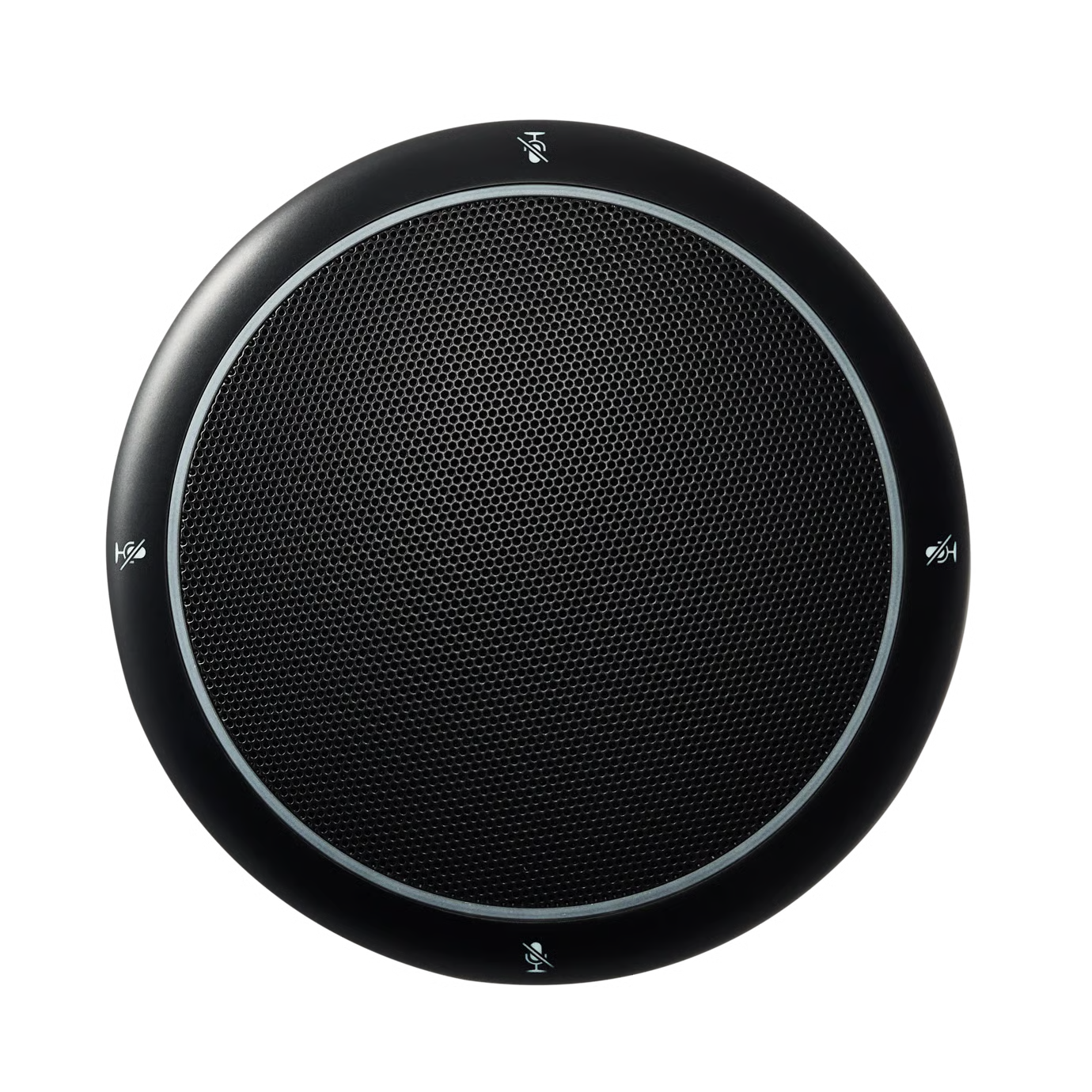

Shure MXA320 Table Array Microphone
The MXA320 is the next evolution of Shure’s table array microphone that provides high quality audio capture and flexible configuration for AV conferencing environments including boardrooms, huddle rooms and conferencing rooms. It features Steerable Coverage™ Technology with onboard IntelliMix® DSP, streamlined deployment with Designer System Configuration Software and intuitive remote management via ShureCloud, all housed in a familiar, compact, low-profile design.
FEATURES
• Steerable Coverage™ Technology lobe accuracy allows users to configure up to four simultaneous polar patterns
• Onboard IntelliMix® DSP includes echo-cancellation and noise reduction to eliminate annoying distractions
• Remote device management, real-time device monitoring of device status and performance, and firmware updates with ShureCloud
• With Designer System Configuration Software, coverage can easily be viewed alongside other Microflex Ecosystem products in the room
• Housed in a familiar compact low-profile design
• Stylish round form factor complements any interior design without drawing attention
• Available in white, black, or aluminum finishes
• PoE powered
• LED status bar with configurable colors and brightness
