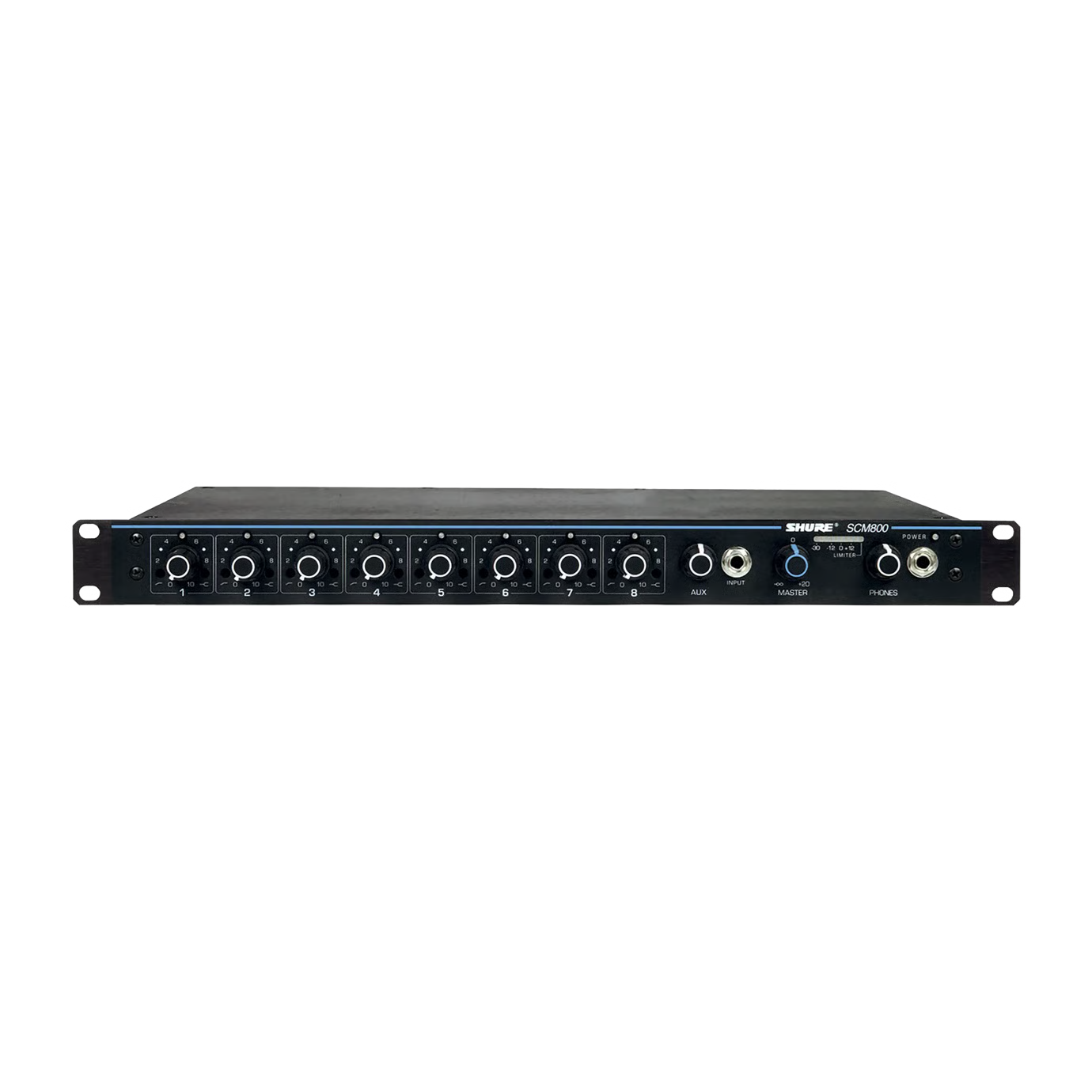

Shure SCM800 Eight Channel Microphone Mixer

8-channel microphone mixer offers compatibility with any low-impedance, balanced microphone, including wireless microphone systems. Includes adjustable EQ, phantom power LED, manual mixing, and peak-responding output limiter.

  • Compatible with Shure SCM410 and SCM810 automatic microphone mixers
  • Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
  • 48 V phantom power selectable for each input
  • Active balanced microphone- and line-level inputs and line level output
  • Highly RF-resistant chassis and circuitry
  • LED indication of channel clipping
  • Linking capability for systems up to 32 microphones
  • Two Aux-level input jacks that feed one channel
  • Insert jack on each channel
  • Manual mixing of input channels
  • Internal Modification permits  120 V operation
  • Front-panel headphones output with level control
  • Peak-responding output limiter with selectable thresholds and LED indicator
分類: ,
Total # Of Inputs
8 Microphone / Line Switchable: Block Connections
1 AUX Input: 1/4″ Phone
Mic/Line Inputs
8 Microphone / Line Switchable: Block Connections
Stereo Line Inputs
None
In-Line Inputs/Returns
None
AUX Sends
None
AUX Returns
None
Inserts
8 – 1/4″ TRS Phone
BUS (Group) Outputs
Stereo Output
2 Trk Master I/O
Block Connector
ALT I/O
Link Out / Link In
Monitor Outputs
Headphone Output: 1/4″ TRS Phone
EQ Section
Low Cut Filter / High Pass Shelving
Solo/Mute
No
Channel Level Control
Rotary Control Pots
Trim/Gain Control
Rotary Control Pots
Phantom Power
48V DC
Metering
Peak LED Metering
Frequency Response
50Hz to 20kHz
Dynamic Range
not specified by manufacturer
Signal-to-Noise Ratio
Equivalent Input Noise: -125 dBV (150Ω source; through 400Hz to 20kHz filter)
Total Harmonic Distortion (THD)
<0.1% at ’18 dBV output level, 50 Hz to 20 kHz (through 20 Hz-20 kHz filter; Input 1 and Master at 5, all other controls full counterclockwise)
Power Supply
SCM800: 120 Vac rated nominal (see Voltage Selection for 230 Vac operation in User Guide), 50/60 Hz, 200 mA
Dimensions
1.75 x 19.01 x 12.48″ (44.5 x 483 x 317mm) HxWxD
Weight
9.57 lbs (4.3kg)
