- DMX Transmitter (Orb TX: 830-3001) or Receiver (Orb RX: 830-3002)
- Power supply DC: USB-C 5 VDC (power supply included)
- Dimensions (W x H x D): 99 x 97 x 43 [mm]

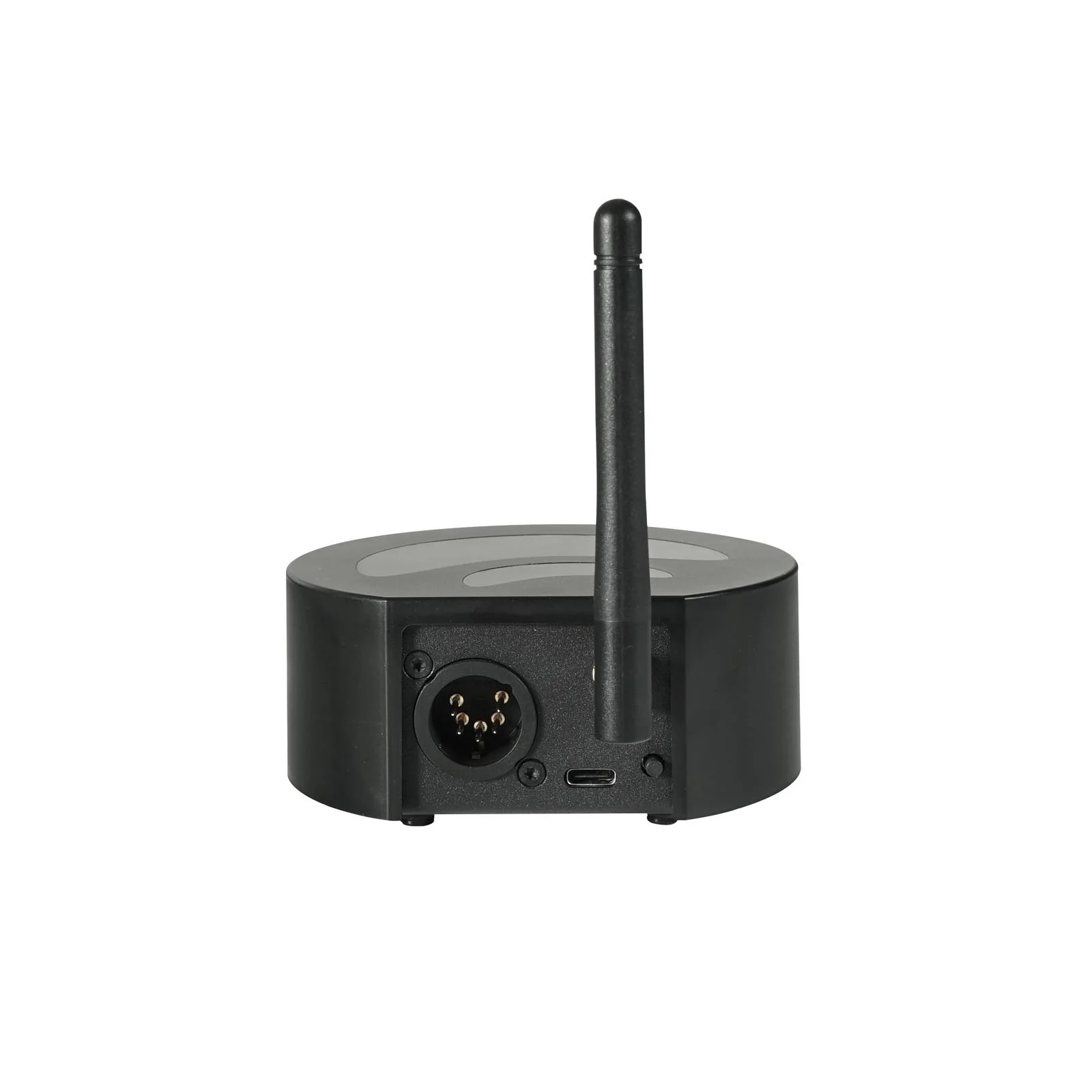

- Antenna connector: RP-SMA
- Frequency range: 2402 – 2480 MHz (ISM band)
- Max. RF output power: 35 mW
- Supported protocols: DMX-512A
- RF protocols (TX): W-DMX G3
- RF protocols (RX): CRMX/CRMX2 & W-DMX G3/G4/G4S/G5

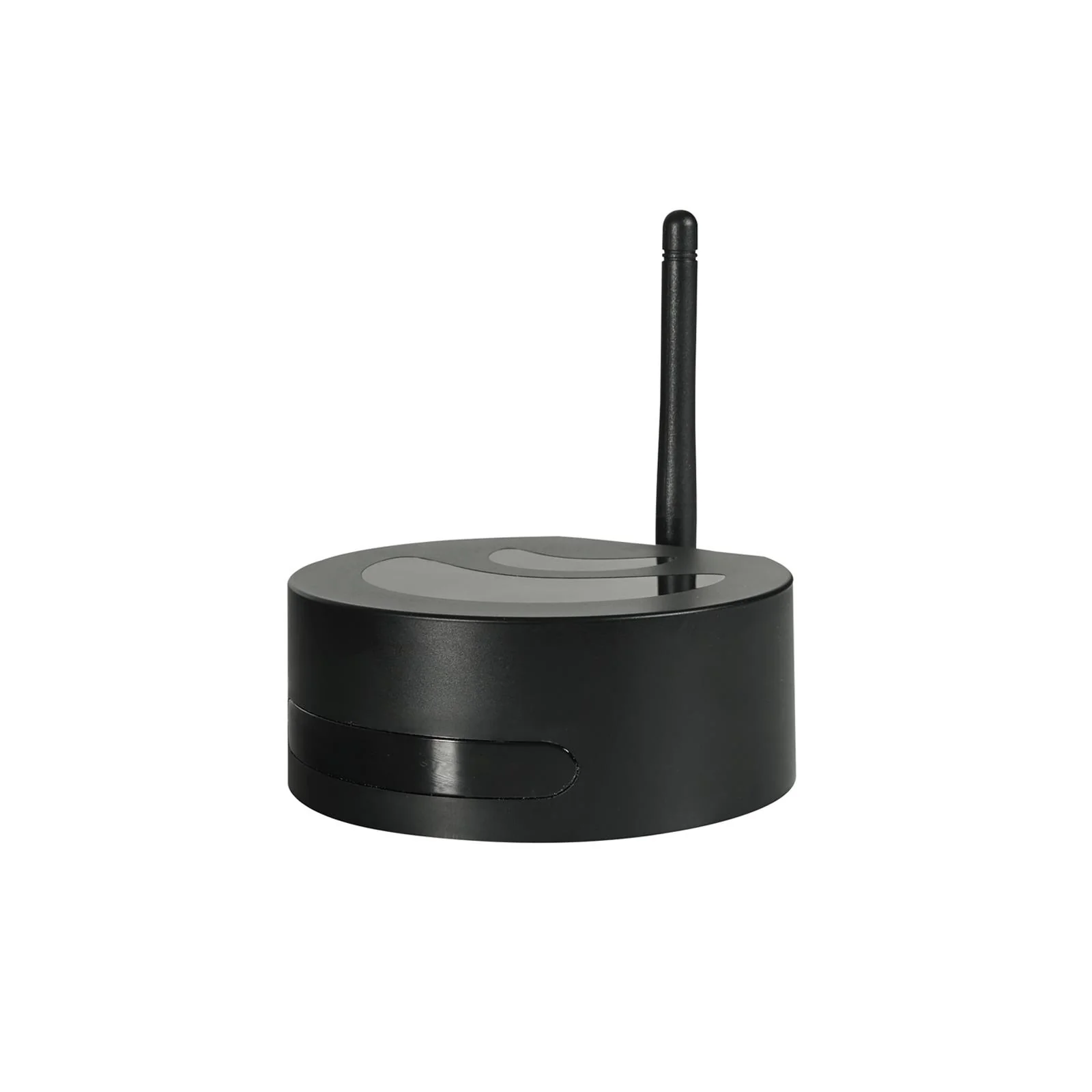

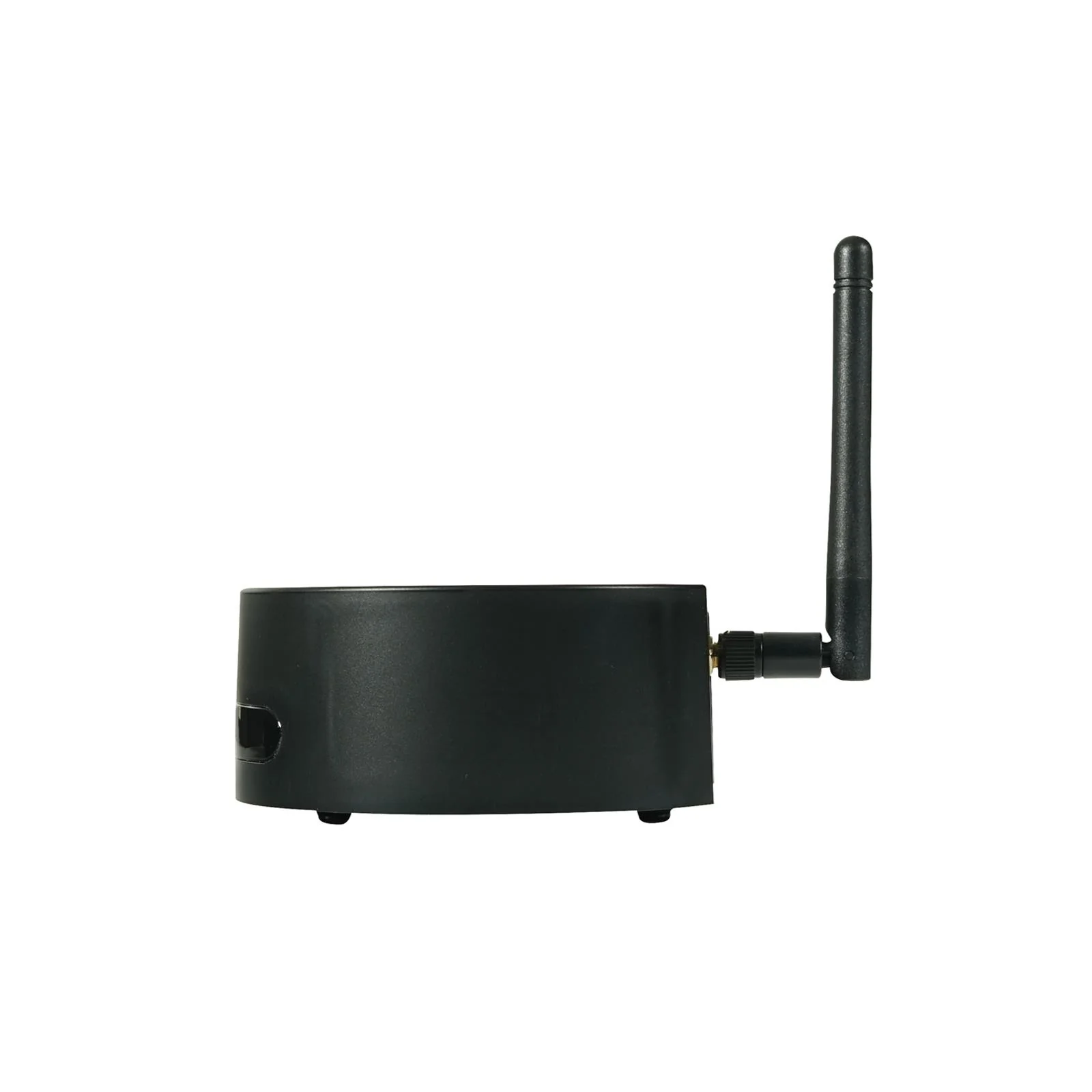

WIRELESS SOLUTION W-DMX ORB TX Transmitter
The Orb DMX Transmitter (TX) gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. The Orb uses W-DMX technology, which is an incredibly reliable wireless alternative to the DMX cable. It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don’t have to replace everything all at once. Start with the Orb and Stick, and later use them together with more advanced products like LumenRadio’s Aurora or Stardust.
DMX Transmitter (TX)
Cable-free control over your lighting set-up
A simple to use, plug and play product
Rock-solid performance which won’t let you down
Wireless DMX technology loved by lighting pros

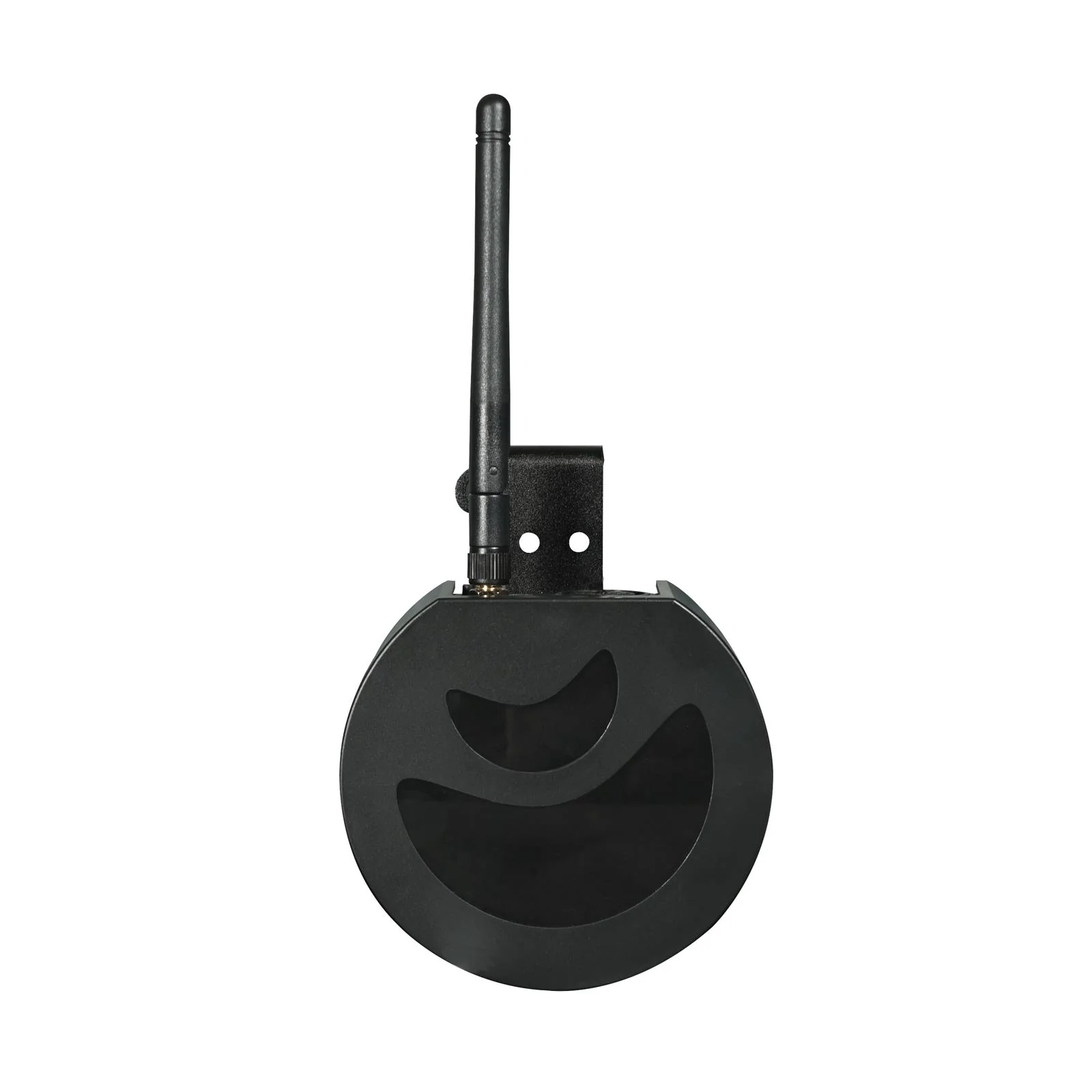

Truss mounting bracket supplied
