XTA DP446 matrixing Speaker Processor

XTA DP446

Using the latest digital signal processing and high sample rates would be wasted if attention is not paid to capturing the signal as faithfully as possible, and reproducing it accurately. The XTA DP446 uses high-performance 24-bit converters on the inputs and outputs, running at 96kHz to give a bandwidth of over 30kHz and a dynamic range in excess of 116dB.

With two or four fully balanced inputs, and up to eight fully balanced outputs, it also offers greatly increased flexibility. Now it’s possible to realise (for example) four two-way monitor systems, or your favourite DP226 configuration with an additional stereo processing channel, all in a single 1U unit.

  • System Control: Full matrix routing, extensive gain/polarity control, 40 memory presets.
  • Linear Array Support: Designed for linear array systems with advanced filtering and phase control.

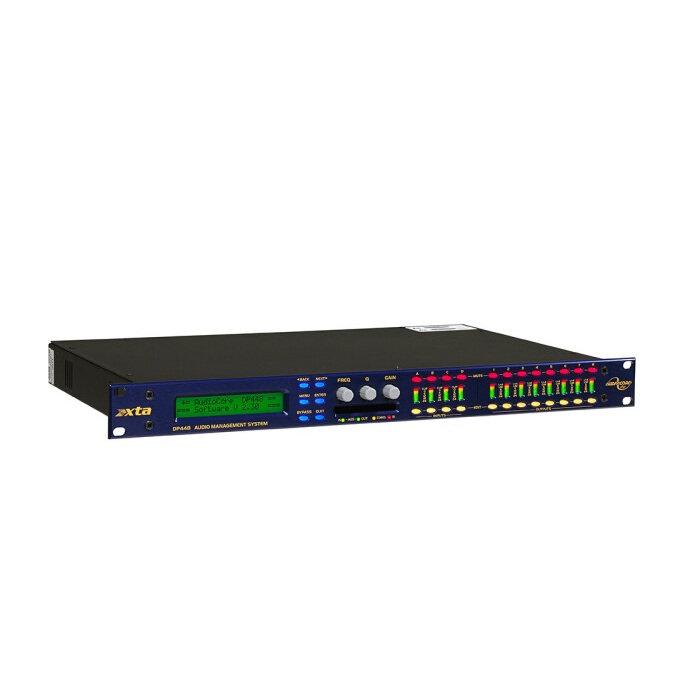

  • User Interface: Intuitive front panel with graphical display for easy setup.
  • Audio Quality: High-resolution processing for pristine sound reproduction.



分類: ,
Specifications
  • Inputs/Outputs: 4 Balanced Inputs, 6 Balanced Outputs.
  • Processing: 96kHz native sample rate, 24-bit converters, >116dB Dynamic Range, <0.001% Distortion.
  • Frequency Response: ±0.5dB from 10Hz – 32kHz.
  • Equalization:
    • Inputs: 28-band Graphic EQ + 8 Parametric EQ (Shelf, Notch, Bandpass, Allpass, Elliptic, VariQ).
    • Outputs: Up to 9 Parametric EQ sections + Crossover Filters.
  • Crossovers: Bessel/Butterworth/Linkwitz-Riley filters (6dB/Oct to 48dB/Oct slopes).
  • Delay: Max 650ms with 0.325µs steps, with precise time alignment.
  • Limiters: RMS & Look-ahead Clip/D-Max Limiters on each output.

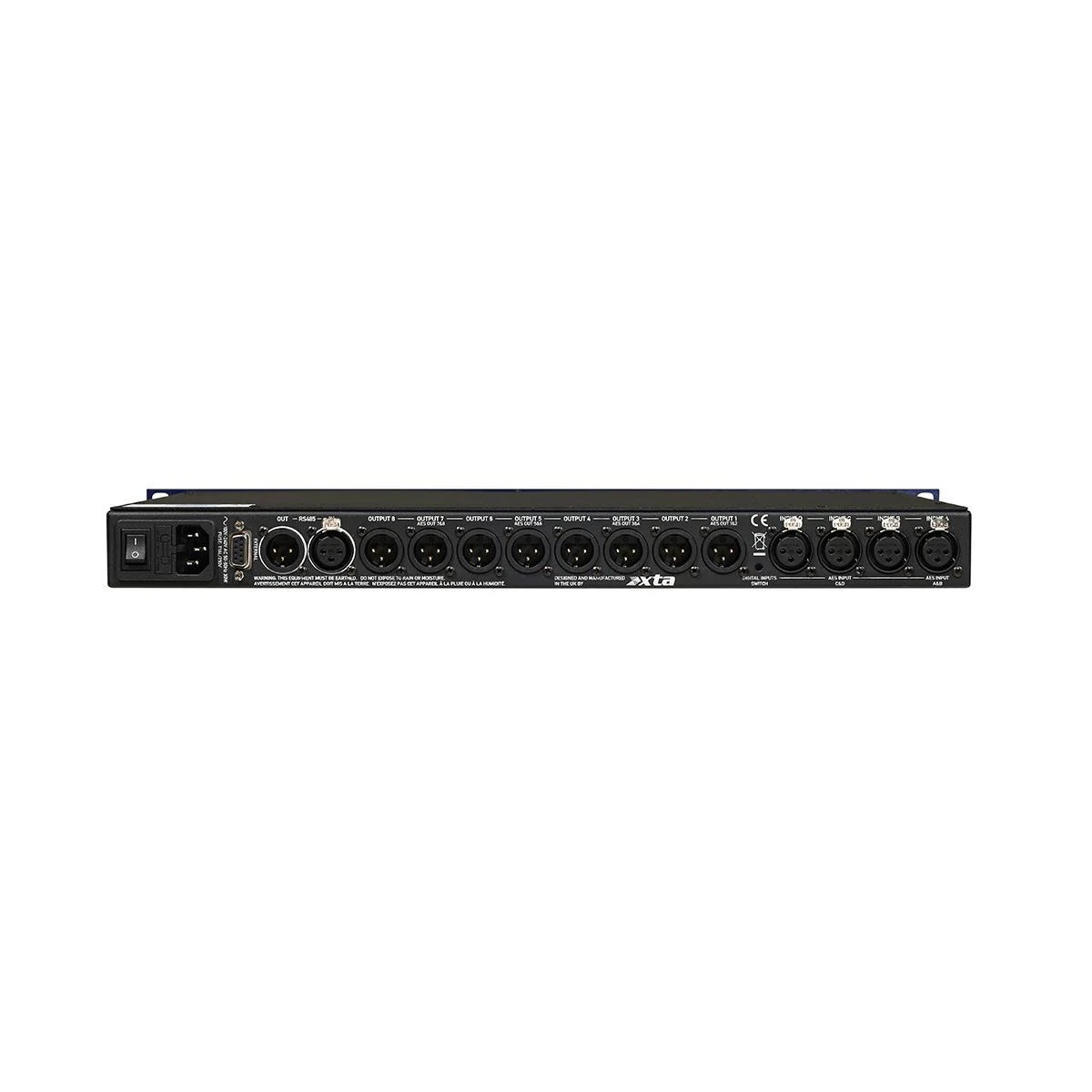

  • Connectivity: XLR Inputs/Outputs, AES/EBU digital I/O, RS485/RS232 control.
  • Power: 60-240VAC, <40W consumption.
  • Physical: 1U Rackmount (44x482x305mm), ~3.5kg.
