Inputs
4 x XLR Electronically balanced Analog Inputs
XLR C & D remote / front panel switchable to AES/EBU
Impedance >10k Ohms CMRR >65dB 50Hz – 10kHz
Analog input to Analog Output latency = 0.5mS
Outputs
8 x electronically balanced analog ouputs.
AES/EBU ( XLR 2,4,6,8) remote / front panel switchable
Source Imp < 600 Ohms
Minimum Load 600 Ohm
Maximum Level +20dBm into 600 Ohm load
Sampling Rate 96kHz internal, up to 192kHz can be
accepted and converted
Frequency Response ±0.5dB 10Hz – 32kHz
Dynamic Range >117dB 20Hz -20kHz.
Unwtd Distortion < 0.001% @ 1kHz, +10dBm
Maximum Delay 650 mS. (increment 0.325 μs steps)
Output gain Adjustable +15dB to -40dB in 0.1 dB
steps and mute

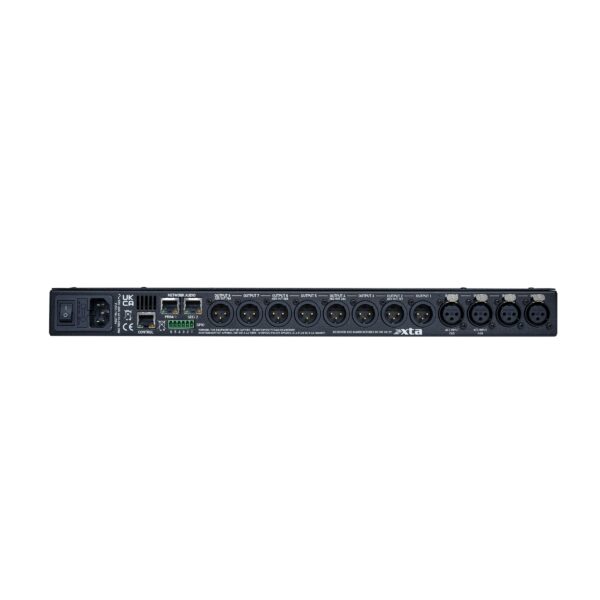

Connectors
Inputs 3 pin female XLR
Outputs 3 pin male XLR
1 X Control port : RJ45 for Audiocore Amped
Edition, globcon and firmware updates
Option Dante Card : 2 x RJ45 – configurable as
primary / redundant or 2 switch ports.
Power 3 pin IEC Power 60VAC – 240VAC
Consumption < 40 watts
Weight 3.5kg. Net (5kg. Shipping)
