| Inputs (Electronic) | Max input level: +26dBu |
| Differential Impedance 10k | |
| PEQ (shelving, variQ, all pass, phase, notch, band pass) | |
| 100Hz CMRR @0dB gain 85dB typ. | |
| 100Hz CMRR @30dB gain 120dB typ. | |
| 1kHz CMRR @0dB gain 85dB typ. | |
| 1kHz CMRR @30dB gain 120dB typ. | |
| Inputs (Transformer Isolated): As above except: | Max broad spectrum level: +26dBu |
| Max LF level: +16dBu (30Hz) | |
| Differential Impedance 5k | |
| Isolation 2.5kV | |
| Outputs (Electronic): | Max output level: +20dBu (600R) |
| Diff. Impedance less than 50ohms | |
| Outputs Transformer Isolated | |
| Max output level: +10dBu (600R) | |
| Nominal level: -10dB | |
| Diff. Impedance less than 150ohms | |
| Isolation 2.5kV | |
| System | Freq. Response 22-22k +0/-0.5dB |
| XFMR Option Freq. Response 22-22k +0/-1.5dB | |
| EIN (0dB gain, 22-22k) less than -101dBu | |
| EIN (30dB gain, 22-22k) less than -124dBu | |
| Power | 90-240VAC, nominal less than 30W |
| Weight | (no options) less than 5.96kg NET (7.2kg Shipping) |

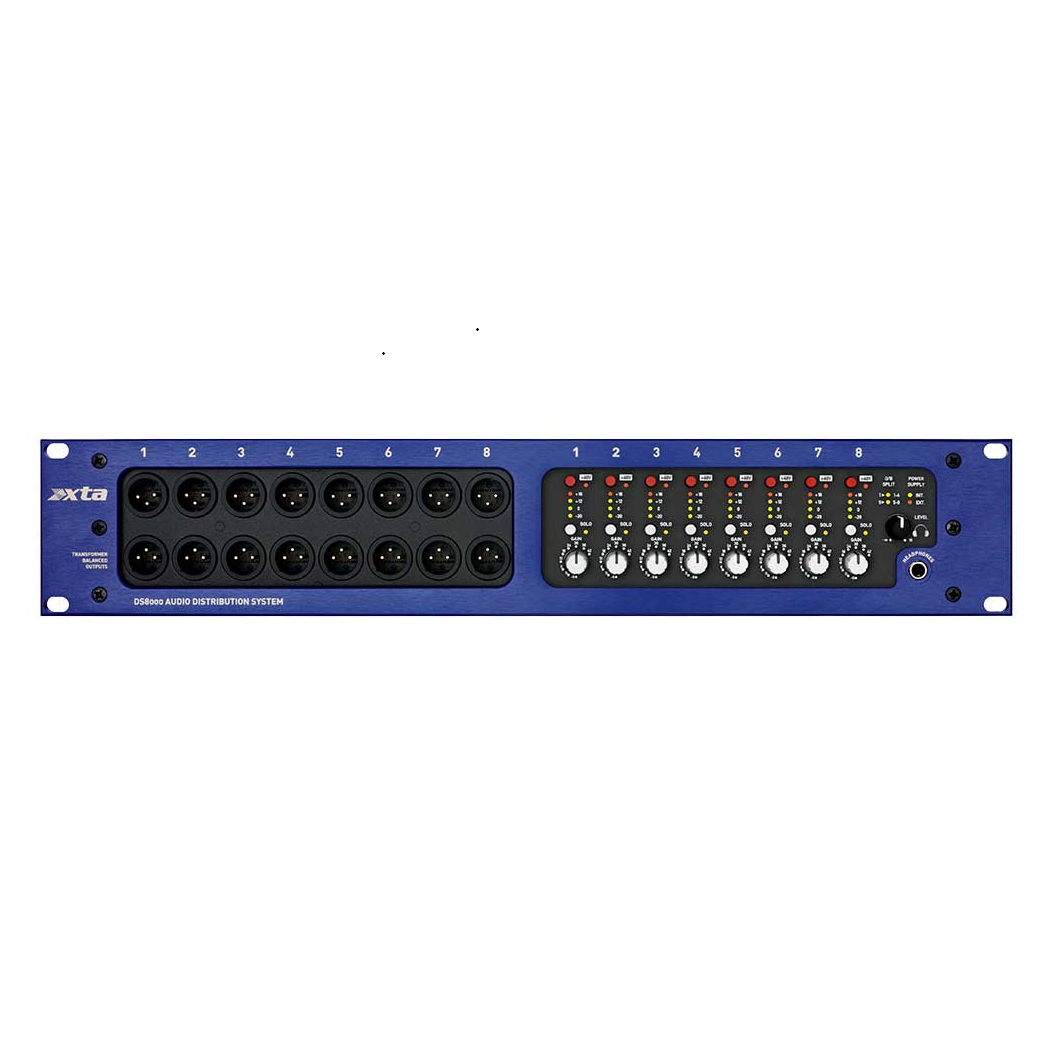

XTA DS8000 Audio Distribution
Featuring all new microphone pre-amps designed by Gottelier award winning Alex Cooper, the DS8000 offers many new facilities including a dual redundant power supply*, simple Outside Broadcast “one to many” split switching and 48V “safe“ functions to prevent tampering.
Subtle panel lighting for dark under-stage environments, plus bespoke new output transformers all combine to produce a package that enhances its predecessor’s reputation as a flexible, rugged high quality distribution system.

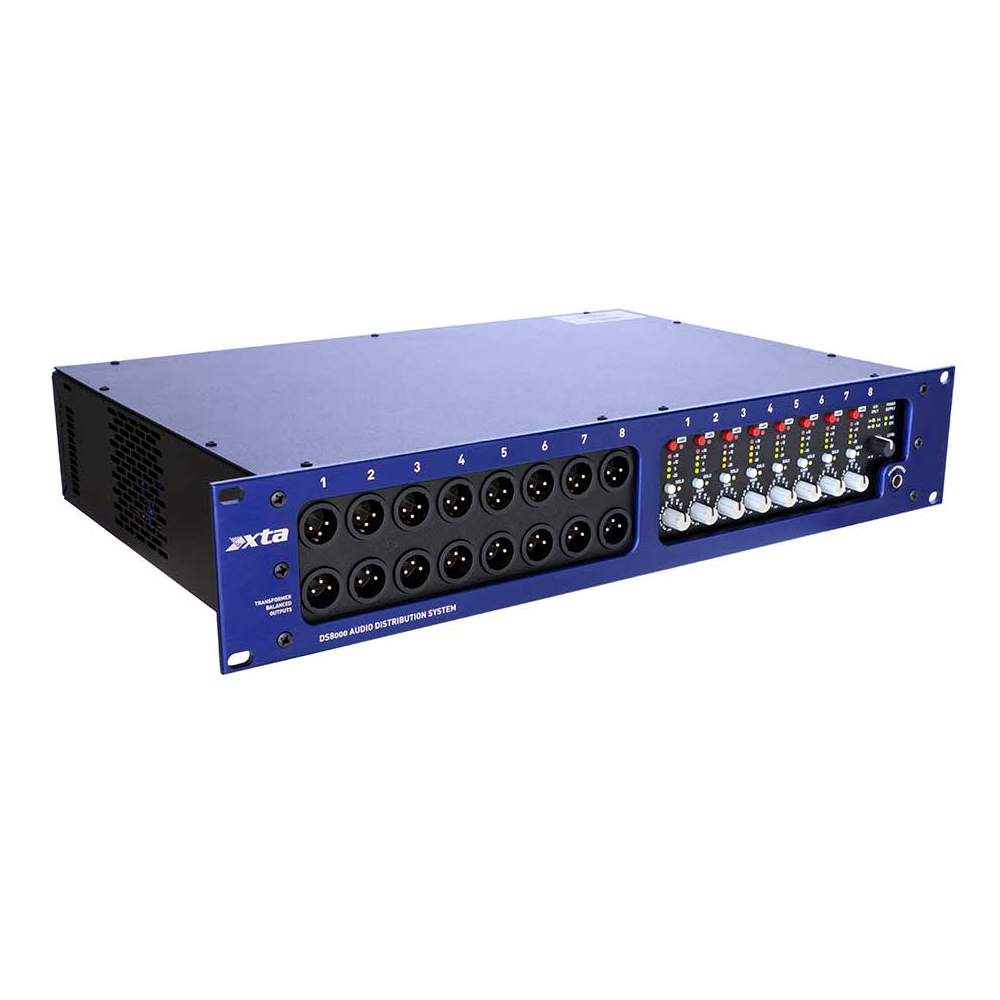

Rugged 2U steel casing with recessed control panel area to avoid damage and accidental adjustments.
Illumination of control panel area for low light conditions. DC power supply link capability – enables safe fail over mode for paired units in the event of a power loss to either unit.
New design discrete mic preamps with exceptional noise and CMR for incredible performance, even with long cables (typically 120dB at 1kHz). Improved gain range now switchable in 6dB steps from -6dB up to +42dB.
