QL5
|
QL1
|
|||
|---|---|---|---|---|
| General specifications | Sampling frequency rate | Internal | 44.1kHz / 48kHz | 44.1kHz / 48kHz |
| External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | ||
| Signal delay | Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz | Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz | ||
| Fader | 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders | 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders | ||
| Total harmonic distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min. | ||
| Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT | ||
| Dynamic range | 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min. | 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min. | ||
| Hum & noise level | Equivalent input noise | -128dBu typ., Equivalent Input Noise, Input Gain=Max | -128dBu typ., Equivalent Input Noise, Input Gain=Max | |
| Residual output noise | -88dBu, Residual output noise, ST master off | -88dBu, Residual output noise, ST master off | ||
| Crosstalk | -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min. | -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min. | ||
| Power requirements | 100-240V 50/60Hz | 100-240V 50/60Hz | ||
| Power consumption | 200W | 135W | ||
| Dimensions | W | 828mm(32.6in) | 468mm(18.4in ) | |
| H | 272mm(10.7in) | 272mm(10.7in) | ||
| D | 563mm(22.2in) | 562mm(22.1in) | ||
| Net weight | 21.8kg(48.1lb) | 14.7kg(32.4lb) | ||
| Accessories | Owner’s Manual, dust cover, power cord, DVS license sheet, Nuendo Live | Owner’s Manual, power cord, DVS license sheet, Nuendo Live | ||
| Options | Mini-YGDAI cards *2 , Gooseneck Lamp LA1L | Rackmount kit RK1, Mini-YGDAI cards *2 , Gooseneck Lamp LA1L | ||
| Others | Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃ | Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃ | ||

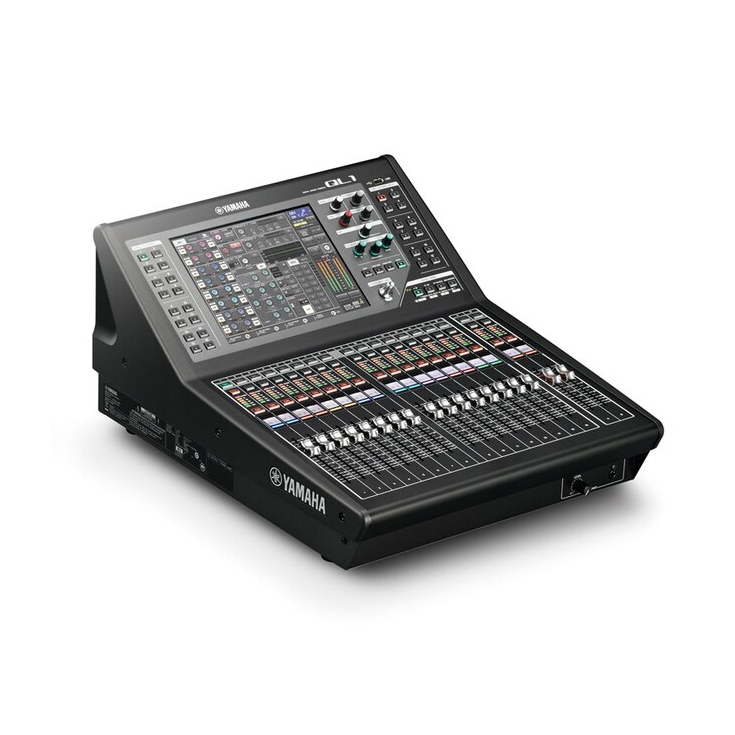

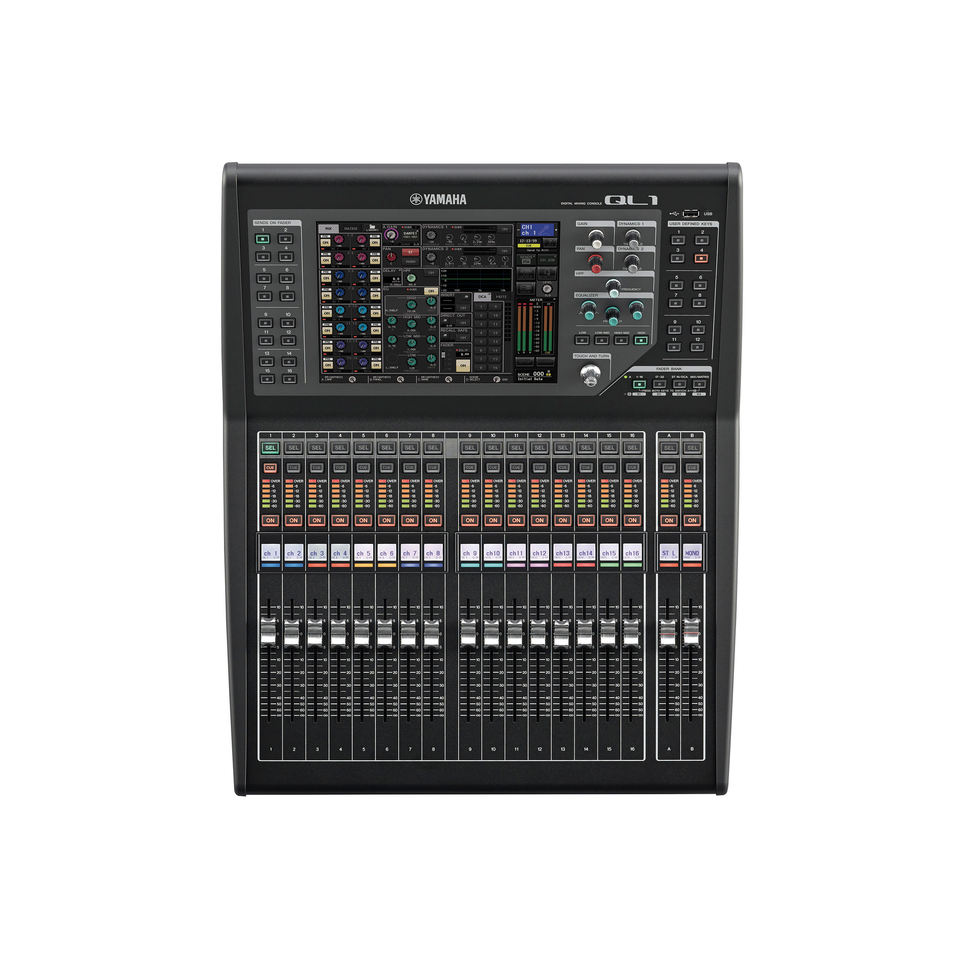

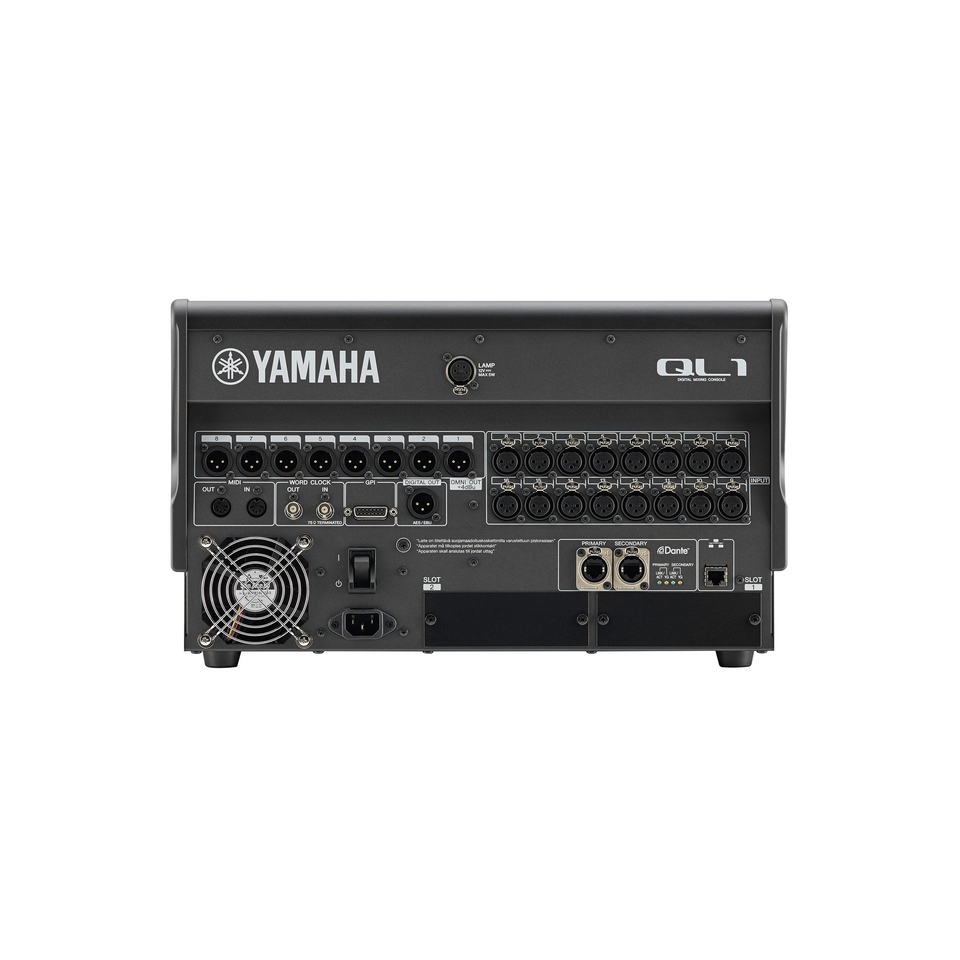

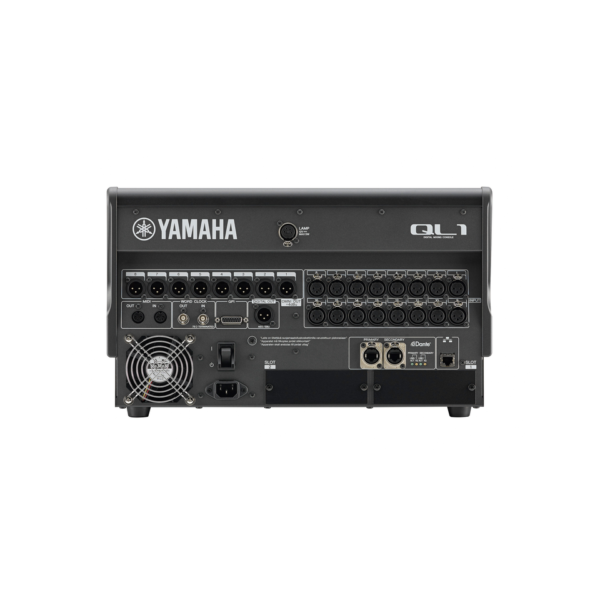

YAMAHA QL1 Digital Mixing Console
16 + 2 fader configuration in a compact, rack mountable unit.
- Mix channels: 32 mono, 8 stereo.
- Busses: 16 mix, 8 matrix (Input to Matrix supported).
- Local I/O: 16 in, 8 out.
- Fader configuration: 16 + 2 (Master).
- Rack mountable with optional RK1 Rack Mount Kit.
相關商品
Yamaha
貨號：
YAMAHA DM7 Digital Mixing Console
Yamaha
貨號：
YAMAHA DM7 Compact Digital Mixing Console
Yamaha
貨號：

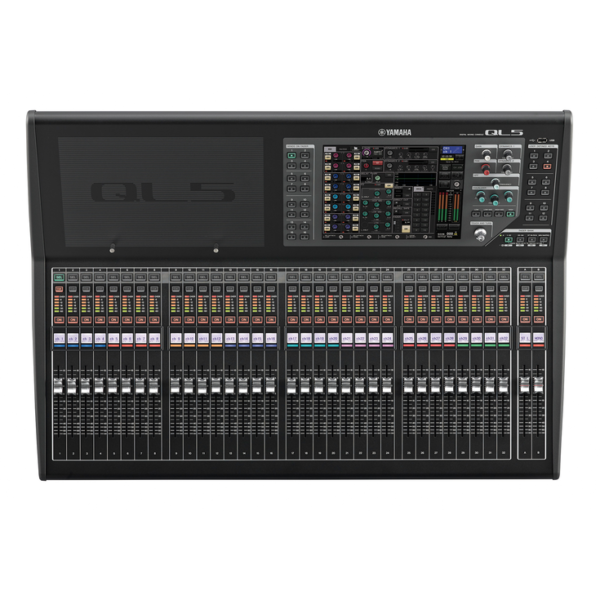

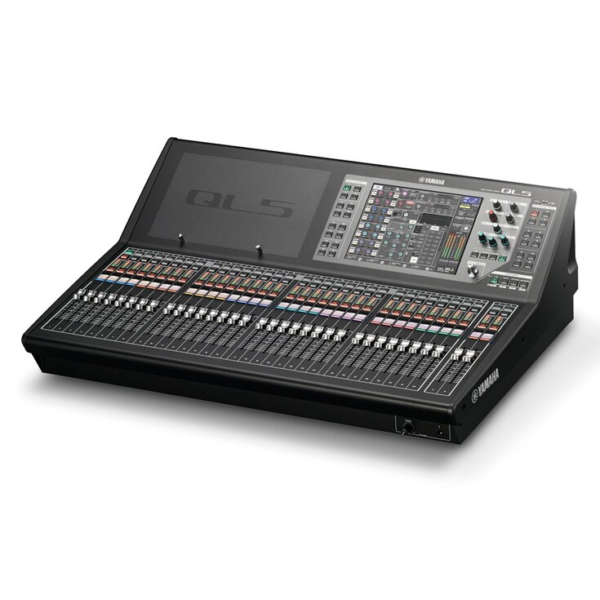

YAMAHA QL5 Digital Mixing Console
Yamaha
貨號：

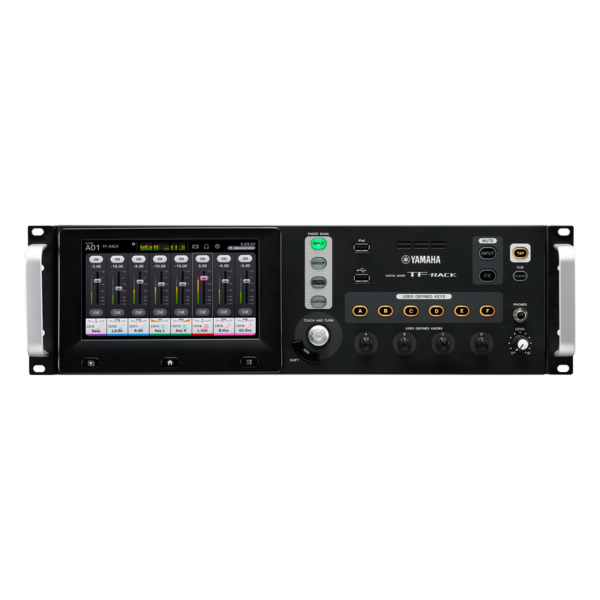

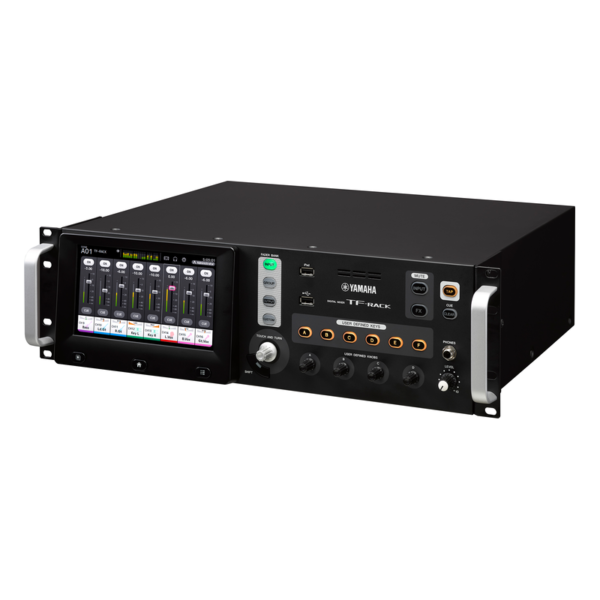

YAMAHA TF-RACK Digital Mixer
Yamaha
貨號：

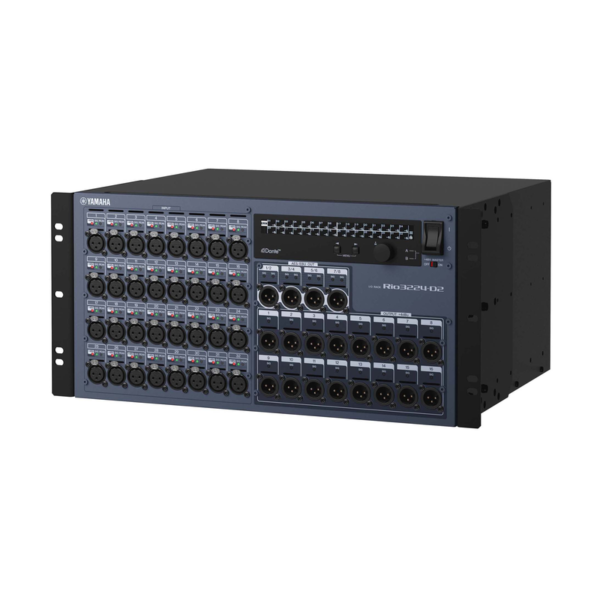

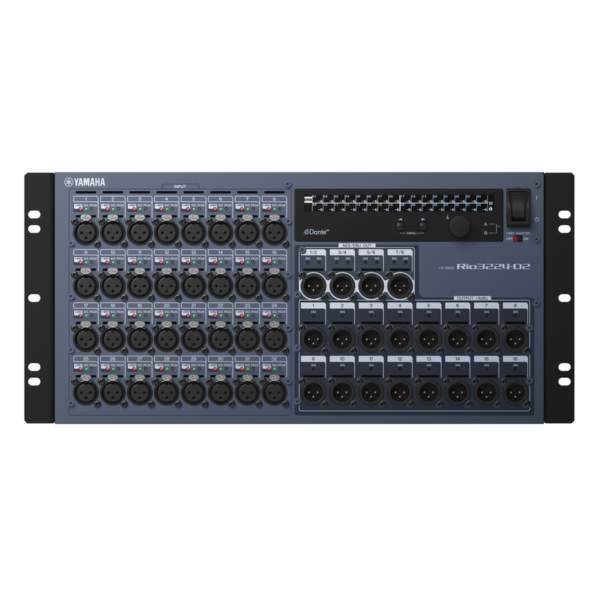

YAMAHA Rio3224-D2I /O Rack
