| System Type | Two-Way loudspeaker, bass reflex |
| Frequency Range(-10dB) *1 | 58Hz~20kHz |

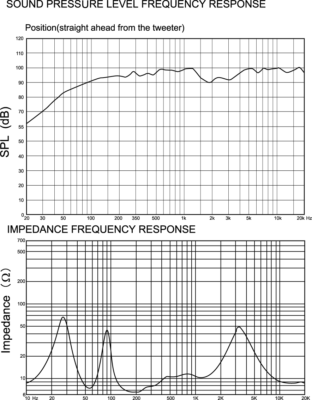

| Frequency Response(±3dB) *1 | 110Hz~20kHz |
| Sound Pressure Level *2 | 96dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 | 122dB(Peak 128dB) |
| Power Capacity | Continuous 400W, Program 800W, Peak 1600W |
| Dimensions | (W)378mm×(H)625mm×(D)408mm (14.9″×24.6″×16.1″) |
| Shipping Dimensions | (W)480mm×(H)735mm×(D)510mm (18.9″×28.9″×20.1″) |
| Net Weight | 26.7kg(58.9lbs) |
| Shipping Weight | 30.3kg(66.8lbs) |
| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4″), Depth 75mm(3.0″) |
| Speaker unit | LF Unit:300mm(12.0″) Cone, 75mm(3.0″) Voice Coil×1 HF Unit:25mm(1.0″) Throat, 44.4mm(1.7″) Voice Coil×1 |
| Enclosure Construction | 15mm(0.6″) Plywood |
| Accessories | Owners manual Registration card |
| *1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
|

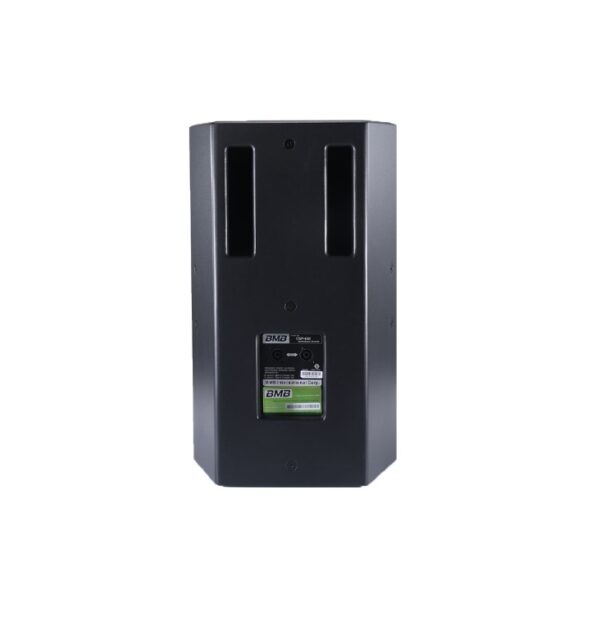

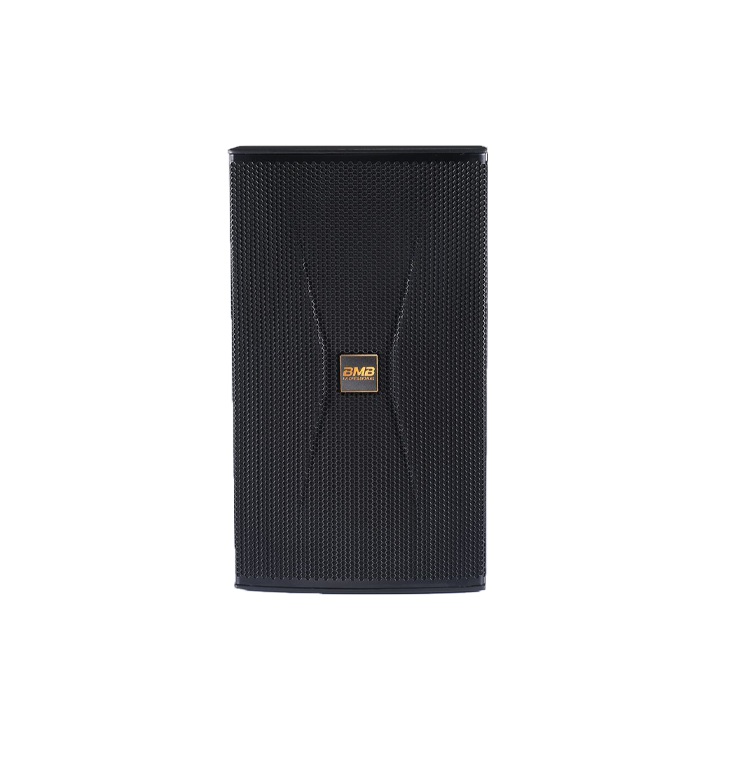

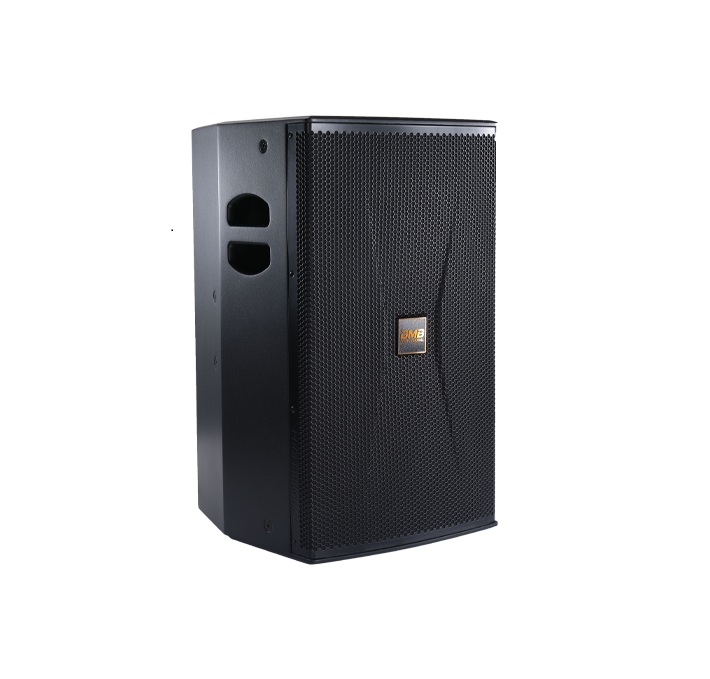

BMB CSP-612 12″ high performance loudspeaker
BMB Sound everywhere, PA type speaker Tuned for valious scene use.
A new type of vocal and music mixing style. Not only for KTV, but also for Bar, Club, Restaurant, various scene.
1. Cabinet made of high quality birch plywood assembled by box joint. The tough structure keeps outputting powerful sound stably.
2. Clear high frequency sound by fine-tuned diaphragm
