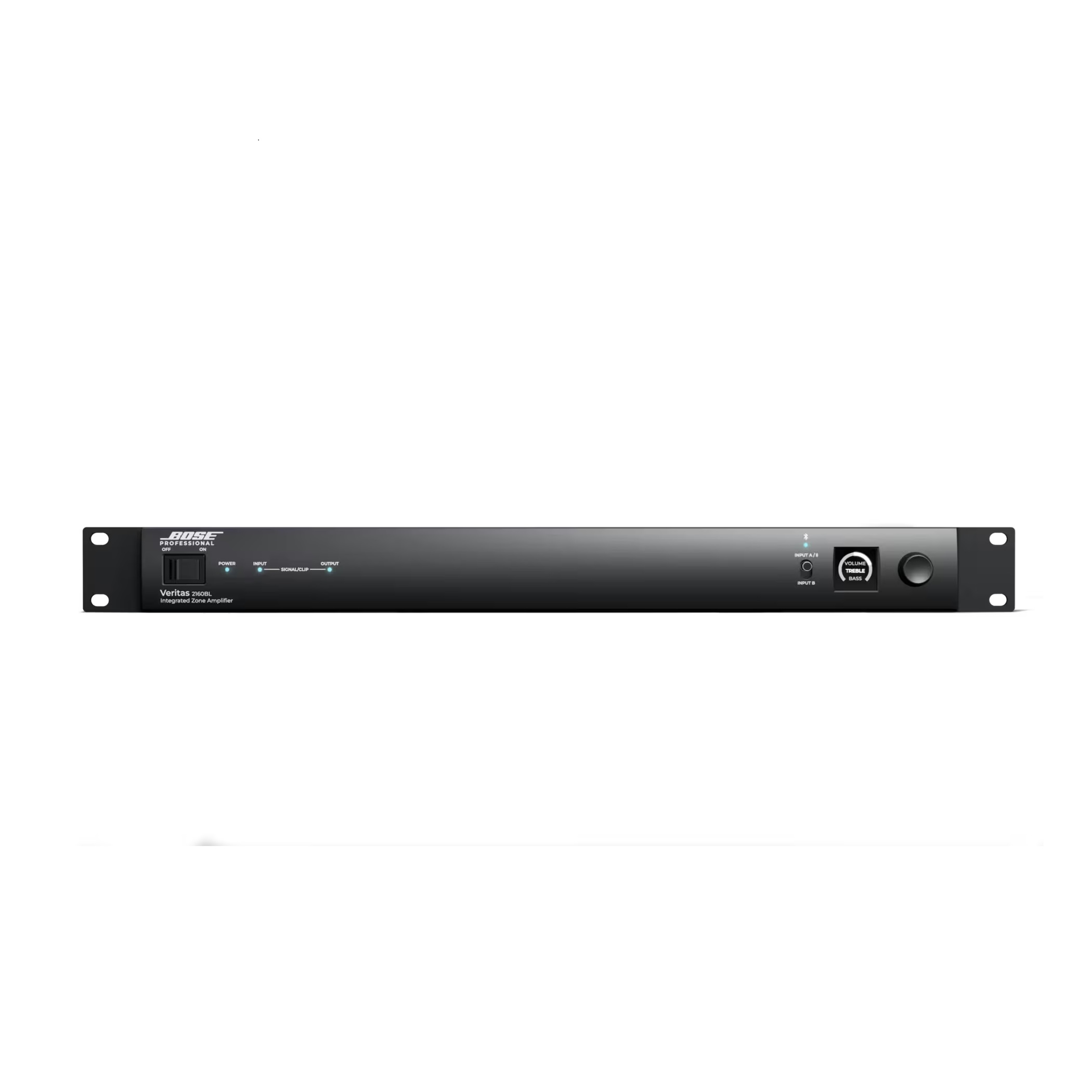

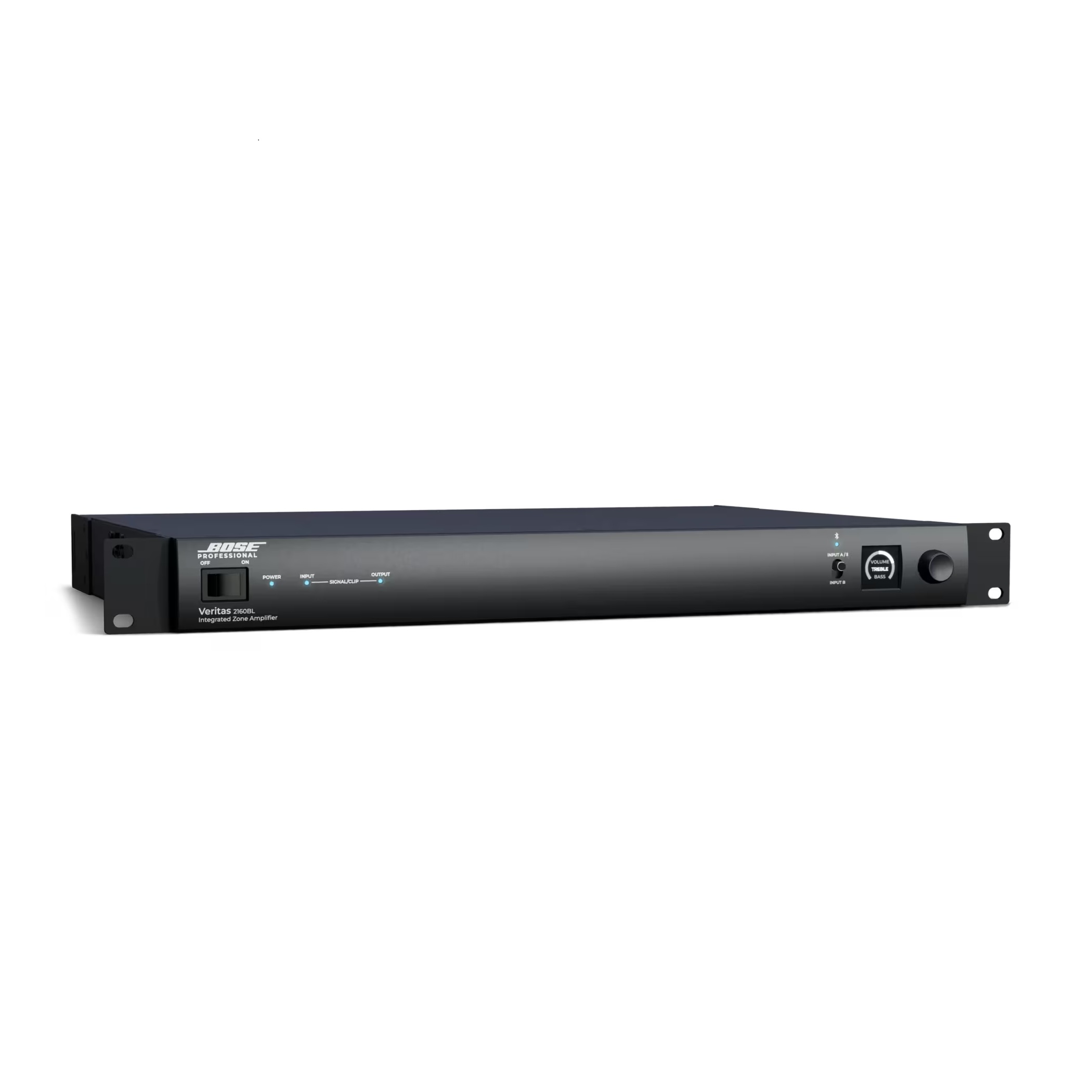

BOSE VERITAS 2160BL integrated DSP zone amplifier

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

For applications requiring more power in a low-impedance 4/8-ohm system, the 2160BL delivers robust sound for larger rooms, restaurants, and performance spaces. It provides high output with advanced DSP tuning, perfect for integrators needing a high-performance amplifier for dynamic commercial audio without the complexity of a 70V/100V system.

  • Premium amplification with advanced DSP for optimized performance

  • Bluetooth connectivity and RCA connectivity—no wire splicing required

  • Intuitive front-panel OLED screen for easy setup and control

  • Embedded quick-start QR code in the OLED screen simplifies installation

  • Supports low-impedance (4–8Ω) applications

  • Remote level control with Bose Professional or third-party wall controllers

  • Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes

  • Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability

  • Opti-Voice paging feature ensures clear speech intelligibility

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones
分類: ,
AMPLIFICATION
  • Channel Separation (Crosstalk)
  • ≤ -58 dBu below rated power, 1 kHz
  • Dynamic Range
  • 88 dB
  • Frequency Response
  • 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
  • Rated Power, Symmetrical
  • 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω
  • THD+N
  • ≤ 0.5% at rated power
AUDIO INPUTS, ANALOG
  • Adjustment Range
  • -20 dB to +20 dB (line), 0 dB to +50 dB (page)
  • Input Channels
  • (2) balanced line, (2) unbalanced line, (1) balanced mic/line
  • Connectors
  • (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
  • Input Impedance
  • 20 kΩ (line), 2 kΩ (page)
  • Input Range
  • -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
  • Maximum Input Level
  • 22 dBu (line), 12 dBu (page)
  • Nominal Input Level
  • 4 dBu (line), -38 dBu (page)
  • Sensitivity
  • -8 dBu (line), -58 dBV (page)
AUDIO OUTPUTS, ANALOG
  • Channels
  • (2) loudspeaker, (1) unbalanced line
  • Connectors
  • (2) 2-pin inverted Euroblock, (1) RCA stereo pair
  • Nominal Output Level
  • 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω (loudspeaker), 2 dBu (auxiliary)
ELECTRICAL
  • Mains Connector
  • IEC C14 inlet
  • Mains Voltage
  • 100–240 VAC (±10%), 50/60 Hz
  • Protections
  • High temperature, output short circuit, excessively low/high AC line voltage
  • AC Power Consumption
  • 13.6 W standby, 500 W maximum
INDICATORS AND CONTROLS
  • Controls, Front Panel
  • Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

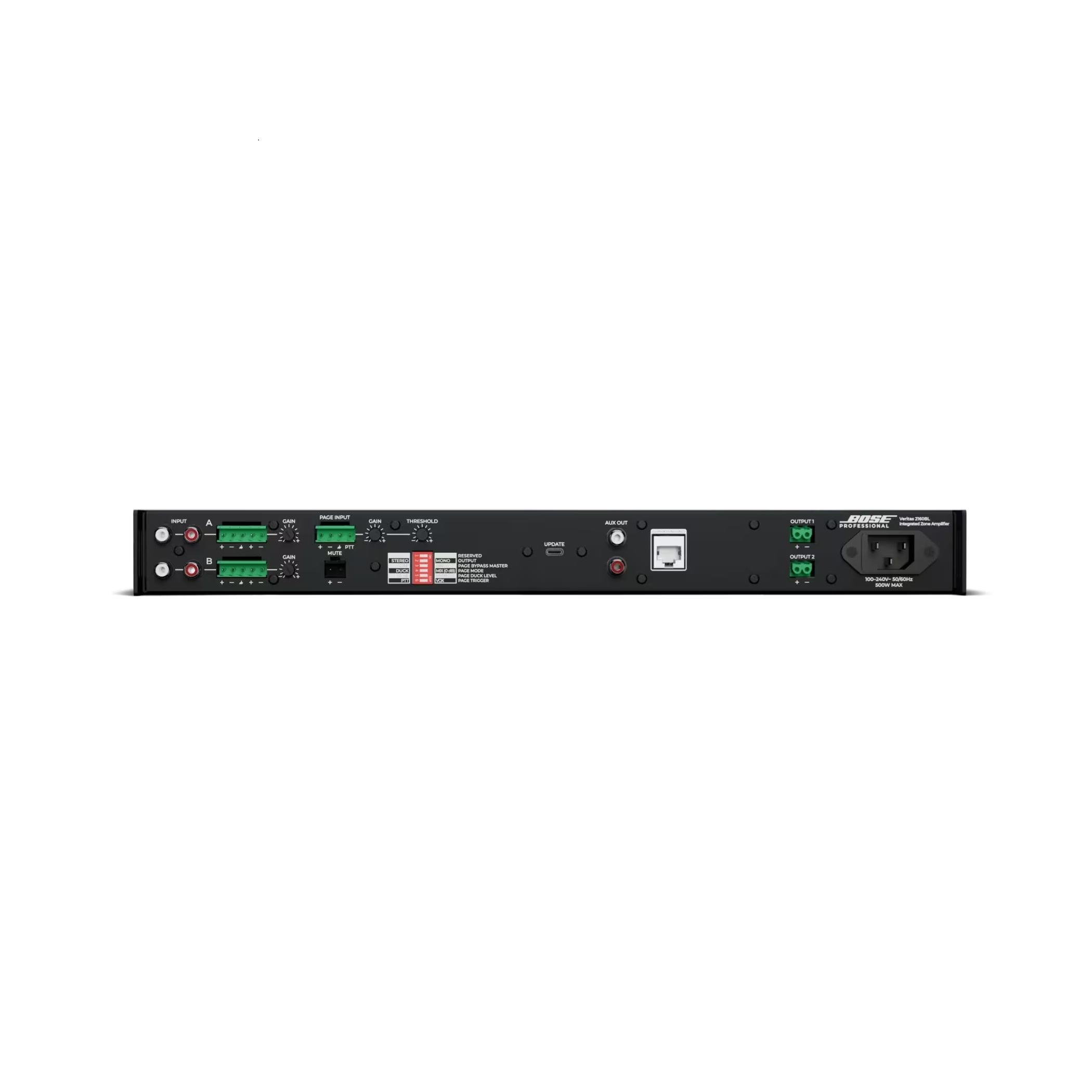

  • Controls, Rear Panel
  • Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
INTEGRATED DSP
  • A/D and D/A Converters
  • 48 kHz / 24-bit
  • Audio Latency
  • 10.4 ms (any input to speaker output or aux output)
  • Presets
  • Flat, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
  • Processing Functions
  • Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
