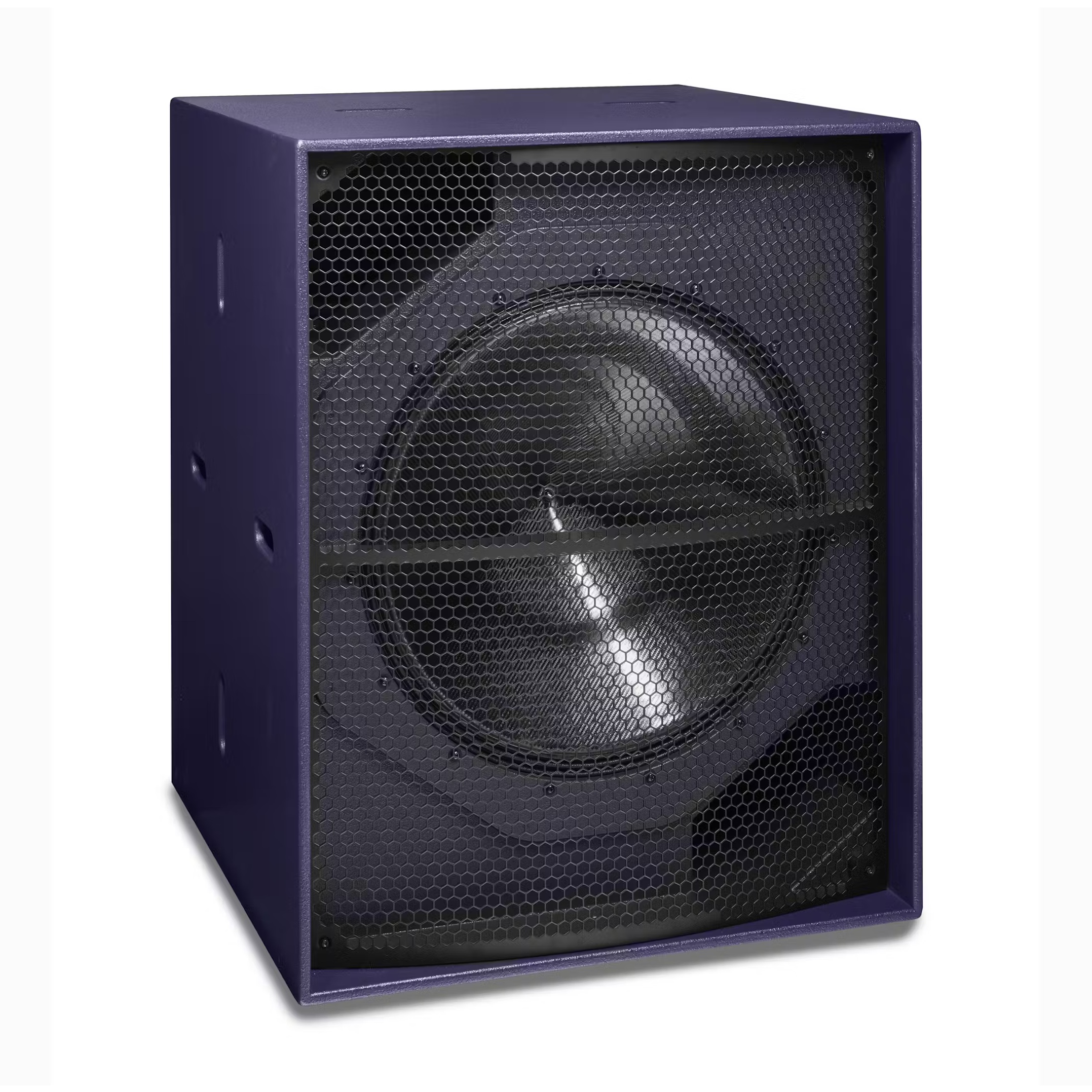

The BR132, is the largest, deepest and most powerful of Funktion-One’s bass reflex series of bass loudspeakers. It utilises Powersoft’s high power M-Force linear transducer with Funktion-One’s own
cone, surround and enclosure technology.
The BR132A self powered with the integrated M-Drive amplifier. It is around 40% smaller than its horn-loaded F132 counterpart and delivers plush elastic bass and super-low frequency extension. It is particularly effective in applications requiring deep, strong and well defined sub-bass at close range.
It utilises Powersoft’s high power M-Force linear transducer with Funktion-One’s own cone, surround and enclosure technology. The BR132A self powered with the integrated M-Drive amplifier. It is around 40% smaller than its horn-loaded F132 counterpart and delivers plush elastic bass and super-low frequency extension. It is particularly effective in applications requiring deep, strong and well defined sub-bass at close range.
Frequency Response: 26Hz – 60Hz
Weight: 208kg (458lbs)
Nominal Dispersion: Array dependent
Connectors: Analogue XLR input and link out, Powercon True (20A), RJ45 for RS485 remote control and firmware update
Driver: Linear motor with 32” cone
Crossover: 26Hz – 60Hz (-10dB points: 20Hz – 75Hz)
Frequencies Sensitivity (at 1m)*:134dB at 0dBu
Power (AES): 5000W
Nominal Impedance: N/A
