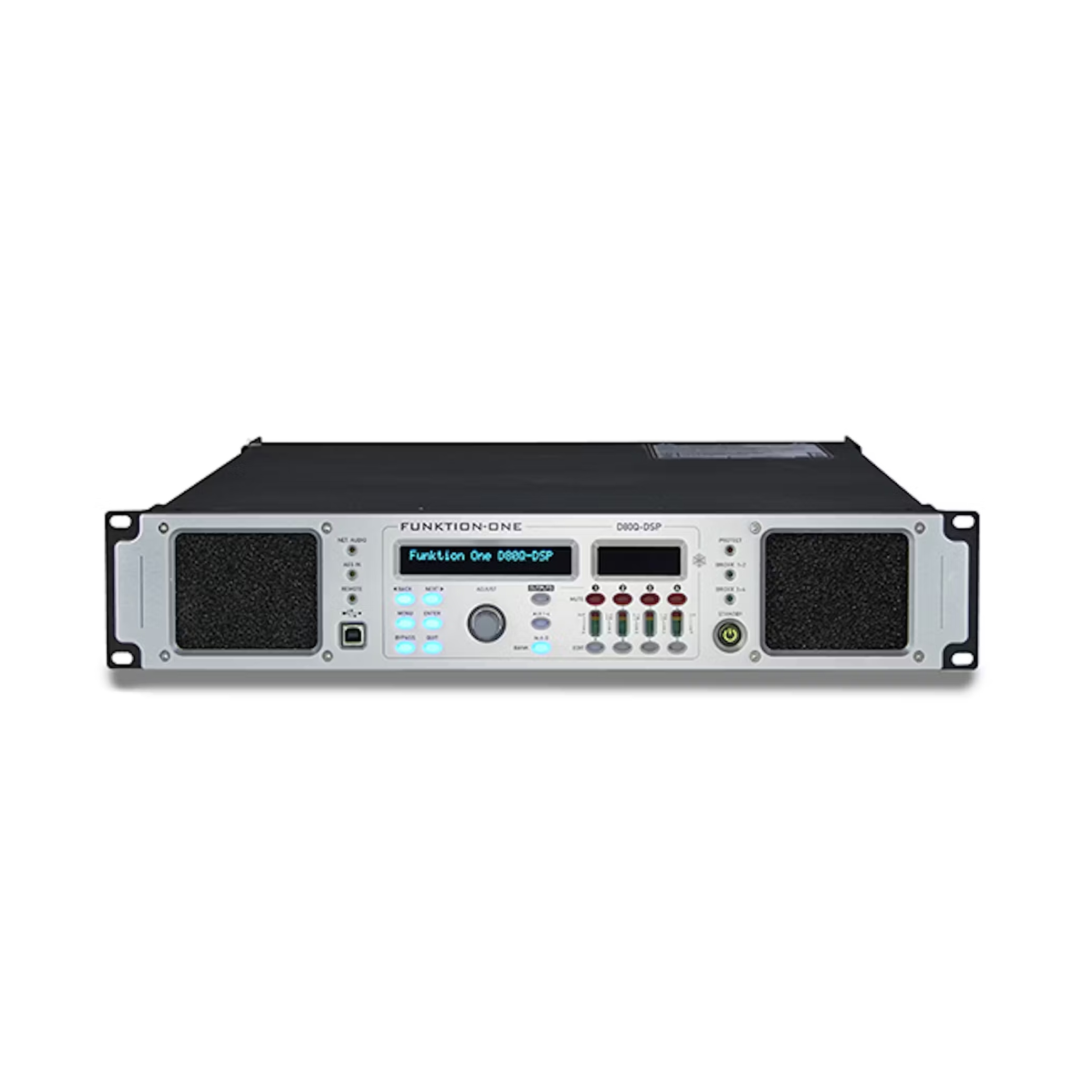

Funktion One D80Q DSP Amplifier

The D-Series amplifier range includes seven different Class-D amplifiers. There are three 4-channel amplifiers with optional built-in DSP and a high power 2-channel non-DSP amplifier. All variants can be ordered with optional Dante Networking – we the separate dante listing.  Both power and processing stages perform to Funktion-One’s standards of audio fidelity.



The 4-channel DSP versions each include 8 channels of DSP (four auxiliary outputs). These auxiliary DSP outputs can be connected to other Dante receivers, or analogue audio inputs (non-DSP amplifiers or F132As, for example).

D-Series Dante networks are highly robust, with optional dual redundancy and automatic failsafe to analogue. AudioCore provides remote system control over wired and wireless networks, with a comprehensive preset library for easy system setup and tuning.

  • High quality audio power amp technology
  • Designed to Funktion-One specification
  • Future proofed with easy-to-use digital audio network protection
  • Excellent connectivity
  • Remote system control via Audiocore for wired and wireless networks
  • Highly robust D-Series Dante networks
  • Optional dual redundancy and automatic failsafe to analogue





分類: ,
All can be ordered with optional Dante Networking. *
D40Q 4 x 1000W 4 ohms
D40QDSP 4 x 1000W 4 ohms (with DSP)
D80Q 4 x 2000W 4 ohm
D80Q-DSP 4 x 2000W 4 ohm (with DSP)
D100Q 4 x 2700W 4 ohms
D100Q-DSP 4 x 2700W 4 ohms (with DSP)
D120 2 x 4600W 4 ohms
* To order with Dante add (D) suffix to model numbers above



Output Power (per channel):

D40Q D80Q D100Q D120
8R 500W x 4 1000W x 4 1400W x 4 2400W x 2
4R 1000W x 4 2000W x 4 2700W x 4 4600W x 2
2.7R 1400W x 4 2200W x 4 3700W x 4 6250W x 2
2R 1200W x 4 2000W x 4 3500W x 4 6800W x 2



Output Power (bridged):

D40Q D80Q D100Q D120
8R 2000W x 2 4000W x 2 5600 x 2 —
4R 2400W x 2 4000W x 2 7000W x 2 —



Powers measured for continuous music with Crest Factor of 4.8 (14dB)

2.7 Ohm power quoted for highest single ended output and greatest efficiency (3 x 8 ohm parallel drivers).

Amplifier is stable with 2 ohm loads but output will be reduced.



Processing:
ADC and DAC resolution: 24bit
Internal sample rate: 96kHz



System:
Nominal system gain:  32dB
Mains voltage: 115/230VAC nominal 50-60Hz
(factory set for either 115 or 230V operation)
Mains current:  20A maximum
Suggested circuit breaker: C32
Mains connector:  PowerCon



Physical:
Dimensions:  88 x 482 x 458mm (HxWxD)
Weight:
D100Q-DSP: 12.5kg (27.6lbs), Boxed (shipping) 14.5kg (32.0lbs)
D80Q-DSP:   11.0kg (24.2lbs), Boxed (shipping) 13.0kg (28.7lbs)
D40Q-DSP:  10.0kg (22.0lbs), Boxed (shipping) 12.0kg (26.5lbs)

D100Q: 12.5kg (27.6lbs), Boxed 14.5kg (32.0lbs)
D80Q: 11.0kg (24.2lbs), Boxed 13.0kg (28.7lbs)
D40Q: 10.0kg (22.0lbs), Boxed 12.0kg (26.5lbs)



D120: 12.25kg (27.0lbs), Boxed 14.25kg (31.4lbs)
