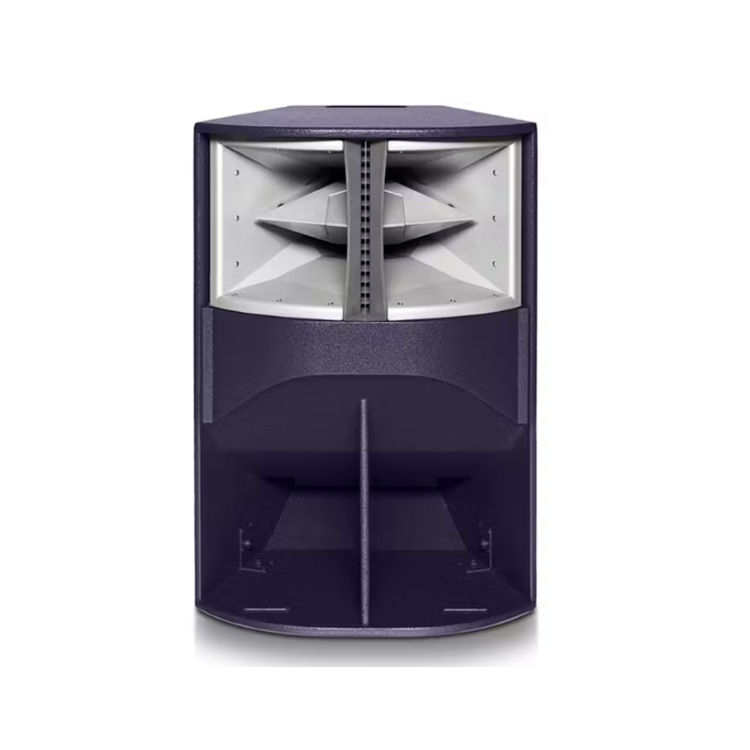

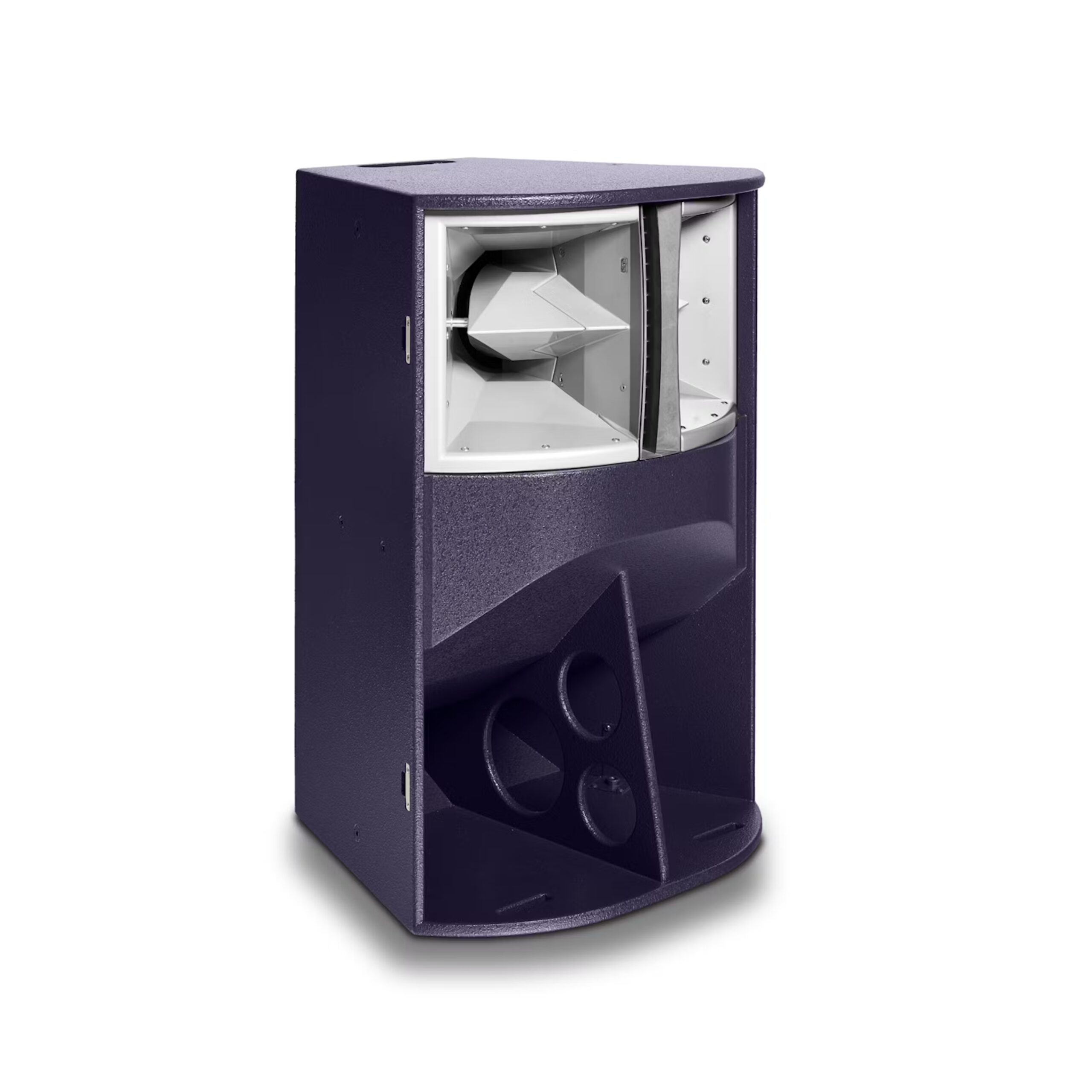

Evolution X is a significant development of the full range, fully horn loaded cabinet concept. Utilising the latest Funktion-One waveguide technology, Evolution X provides wider dispersion and higher SPL. Advanced driver technology delivers even more resolution and detail.
Evolution X is an unbeatable choice for live venues and small clubs requiring high SPL from a compact cabinet. Use alone for small live music events or combine with the F Series or BR Range of bass loudspeakers for increased low frequency energy. Evolution X performs equally well in more delicate scenarios such as theatres and acoustic music venues.
• Single cabinet solution with wide dispersion (90° horizontal)
• Full range, high SPL
• Excellent electroacoustic energy efficiency
• 3-way active (triamp)
• Funktion-One designed drivers
• Wide bandwidth Funktion-One midrange (280Hz – 5kHz)
• Isophase diffraction HF waveguide technology

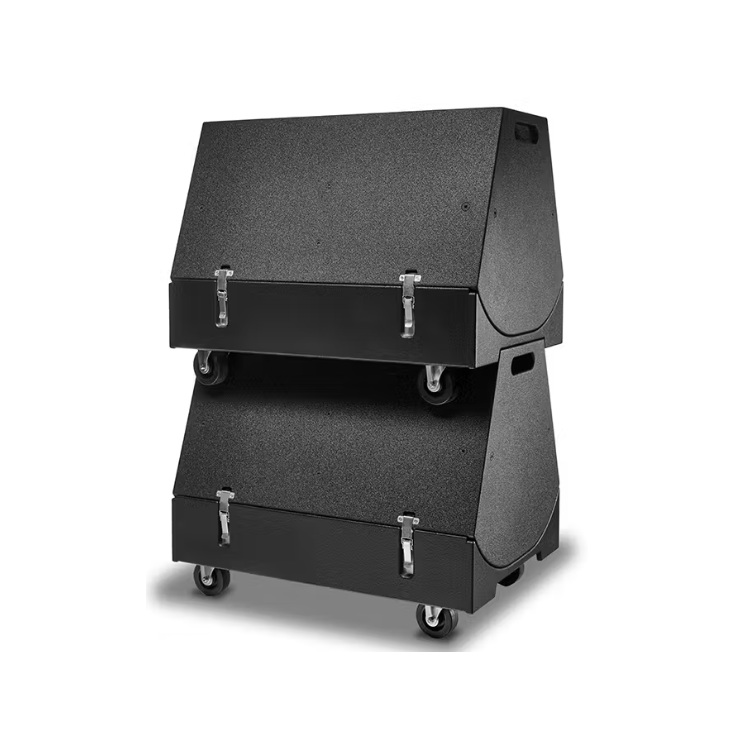

• Dedicated transport dolly (wheelboard)
Frequency Response: 60Hz – 18kHz
Weight: 90° Horizontal x 13° Vertical
Nominal Dispersion: 50° Horizontal x 25° Vertical

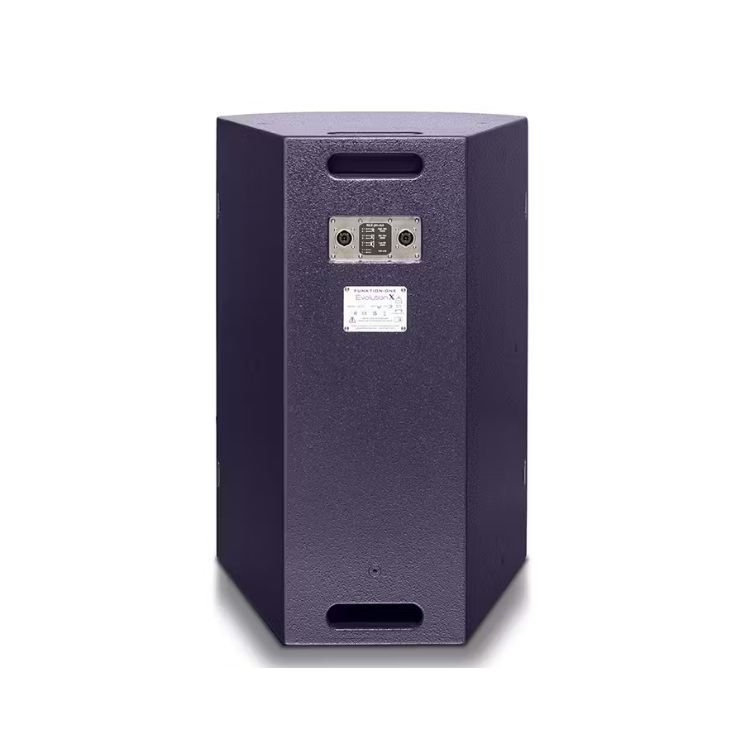

Connectors: 2 x Neutrik NL8
Driver: 15”” (LF), 8” (MF), 1” (HF)
Crossover: 30/85Hz – 280Hz, 280Hz – 5kHz, 5kHz – up
Frequencies Sensitivity (at 1m)*: 102dB at 2.8V, 107dB at 4V, 109dB at 4V
Power (AES): 400W, 200W, 100W
Nominal Impedance: 8Ω, 16Ω, 16Ω
