PSM318 DJ Monitor delivers outstanding full frequency output, accuracy and immediacy, setting a new benchmark for DJs looking for ultimate stage sound.

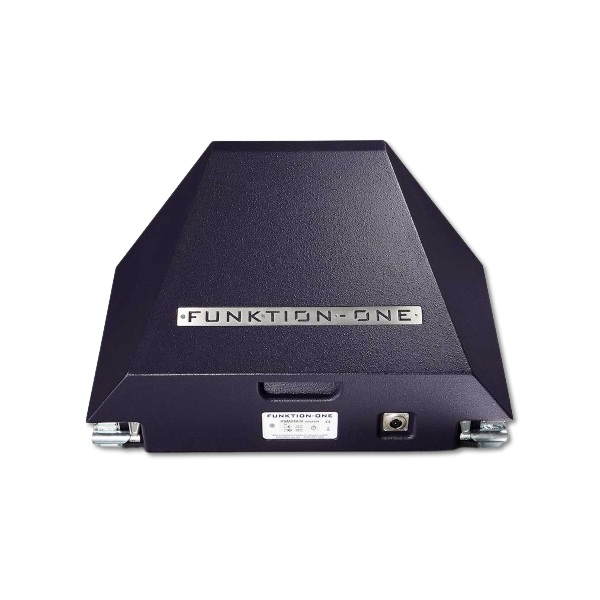

PSM318 comprises a double 18” bass reflex enclosure (PSM318L) providing very strong near-field subbass with a separate triaxial driver for the rest of the frequency spectrum (PSM318H). The two enclosures join with a quick-latch system to provide simple angle adjustment for different stage positions and artist heights. The bass enclosure has wheels that enable it to be easily moved into position. The triaxial arrangement of the PSM318H combines a very high power 18” driver with a coaxially mounted two-way compression driver.
• High power, high accuracy point source monitoring
• Quick angle adjustment for different stage locations and DJ
heights
• Integral wheels on PSM318L for easy manoeuvrability on stage
• Captive link lead to connect PSM318H
• NL8 connector on PSM318L for single cable connectivity
• Accessories available for optional pole mount configuration
• Minimised sight line impact

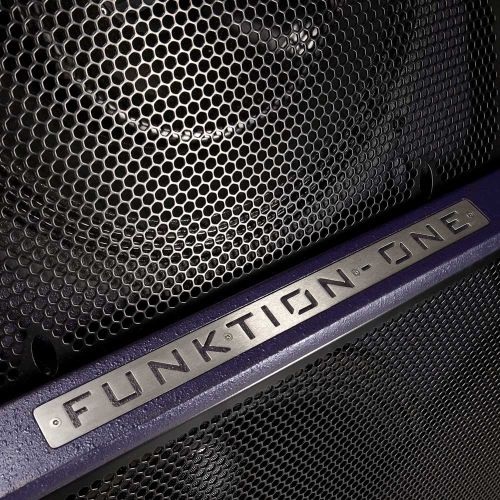

• Sturdy grilles
• Protective HDPE anti scuff base
Frequency Response: 30Hz – 18kHz
Weight: 107kg (236lbs)
Nominal Dispersion: 70° Conical
Connectors: Neutrik NL8 input to lower section with
NL4 captive lead to top section
Driver: 2 x 18” (Sub), 18” (LF), MF + HF
Crossover: 30Hz – 85Hz, 85Hz – 694Hz, 694Hz – Up
Frequencies Sensitivity (at 1m)*: 101dB at 2V, 104dB at 2.8V, 112dB at 2.8V
Power (AES): 1100W, 600W, 80W
Nominal Impedance: 4Ω, 8Ω
