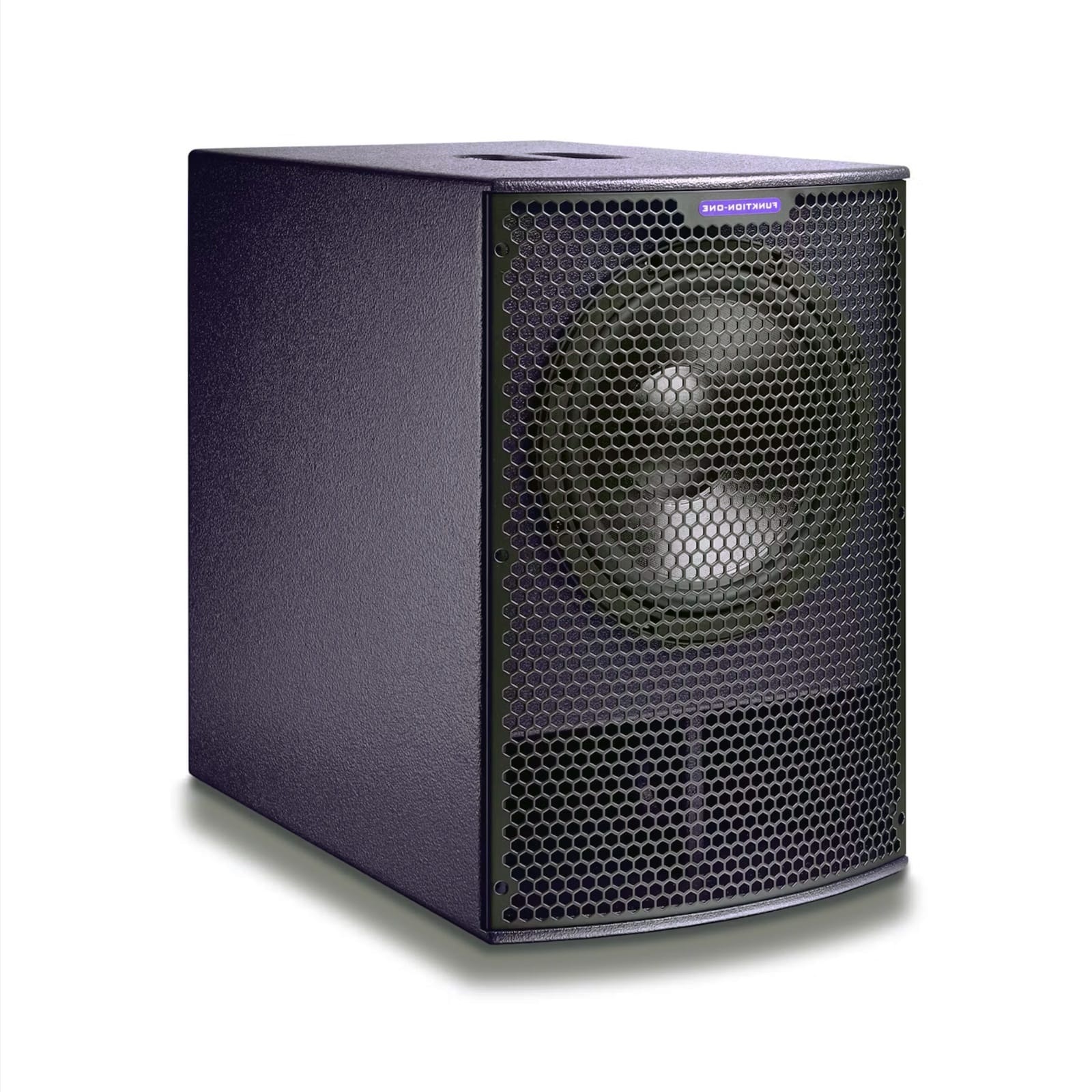

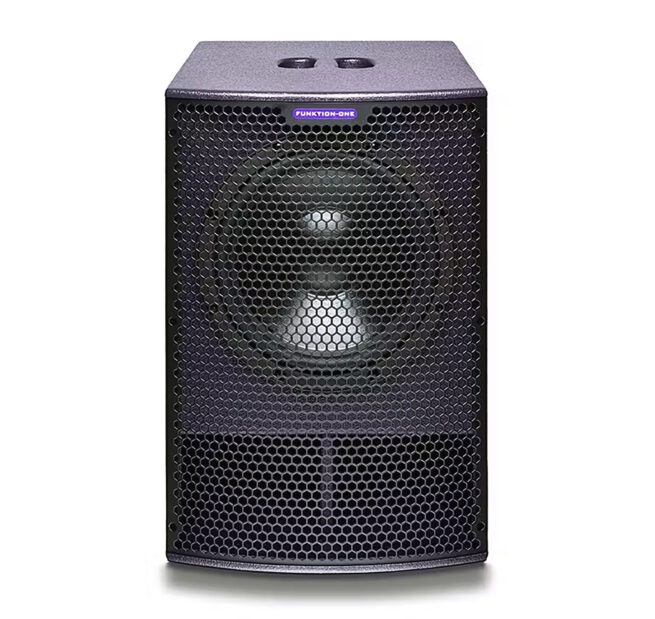

Utilising the same design principles as the SB8, the larger SB10 provides higher output and deeper bass. Perfect for applications where a conventionally sized subwoofer is too large and obtrusive, such as bars, restaurants, retail and galleries.
The small size of the SB10 also makes it suitable for domestic applications, such as a dynamic and precise LFE channel in a home theatre system, or as bass extension for the F5.2 or F81.2 in a 2.1 listening or monitoring system.

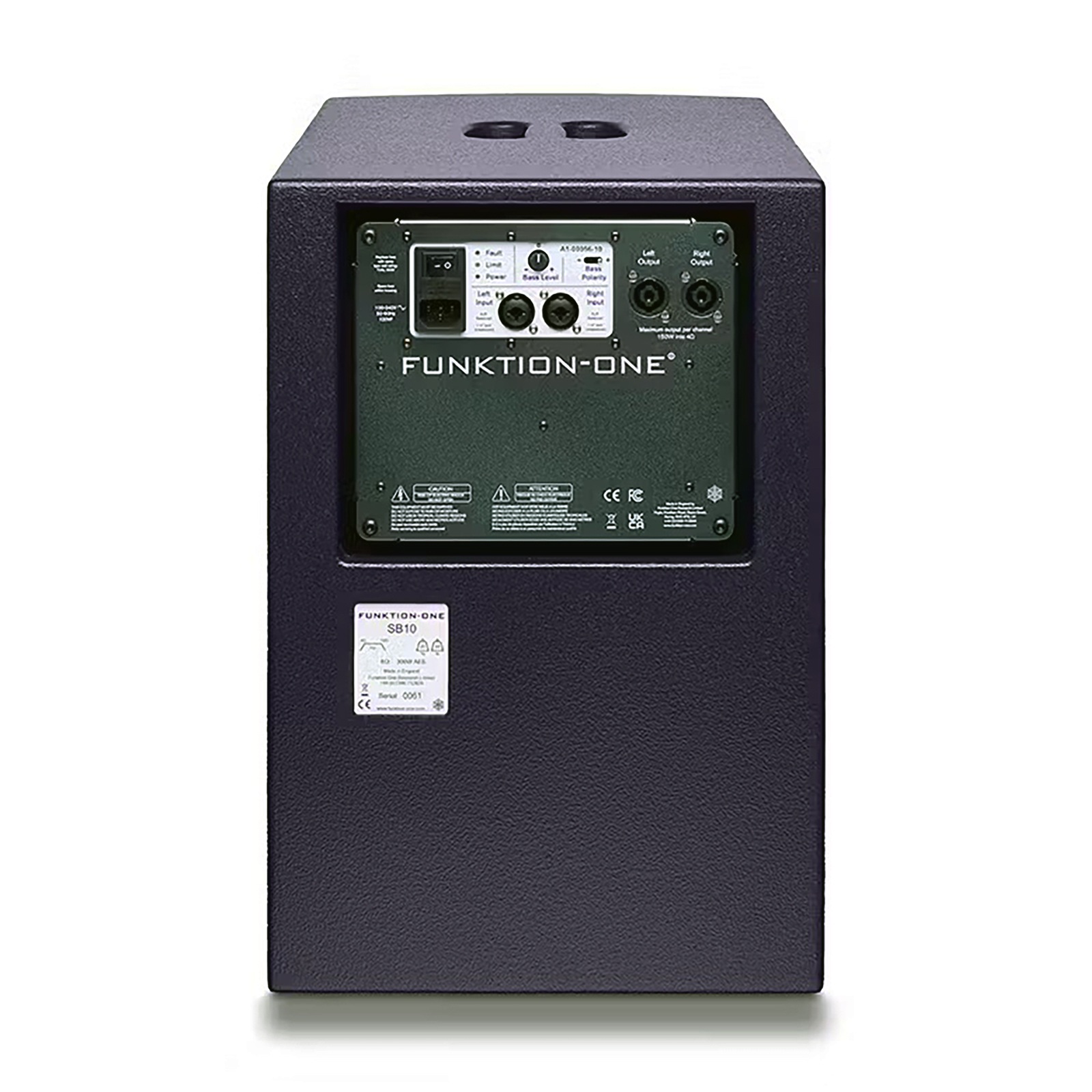

Integrated 3 channel Class D amplifier with analogue active crossover. Two Speakon NL4 outputs connect to stereo satellite loudspeakers such as the F81.2.
• Bespoke high sensitivity 10” bass driver
• Powerful and convincing bass in a very small package
• Integrated 3 channel Class D amplifier
• Balanced XLR inputs (For DJ mixers, pro audio equipment)
• Unbalanced jack inputs (For domestic hifi sources)
• Bass level and polarity controls
• Universal voltage switching power supply with PFC
• Temperature, short circuit and overload protection
• Recommended for use with F81.2
Frequency Response: 45Hz – 300Hz
Weight: 19kg (42lbs)
Power output (8Ω): 1x 300W (LF) 2x 75W (Satellites)
Minimum load impedance: 4Ω (Satellites)
Active crossover: 130Hz 24dB Linkwitz-Riley
AC Power: 100-240VAC 50-60Hz 120W
Connectors: 2x XLR 1/4” combo inputs, 2x NL4 outputs, IEC C13
Driver: 10”
Crossover: 40Hz – 130Hz
Frequencies Sensitivity (at 1m)*: 98dB at 2.8V
Power (AES): 300W
Nominal Impedance: 8Ω
