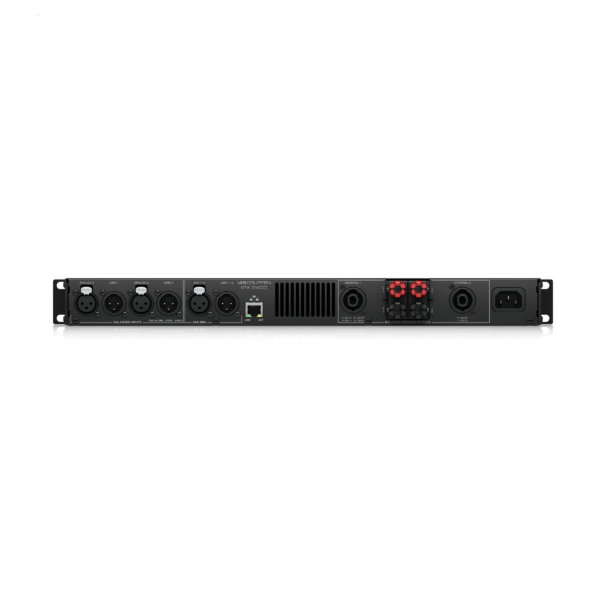

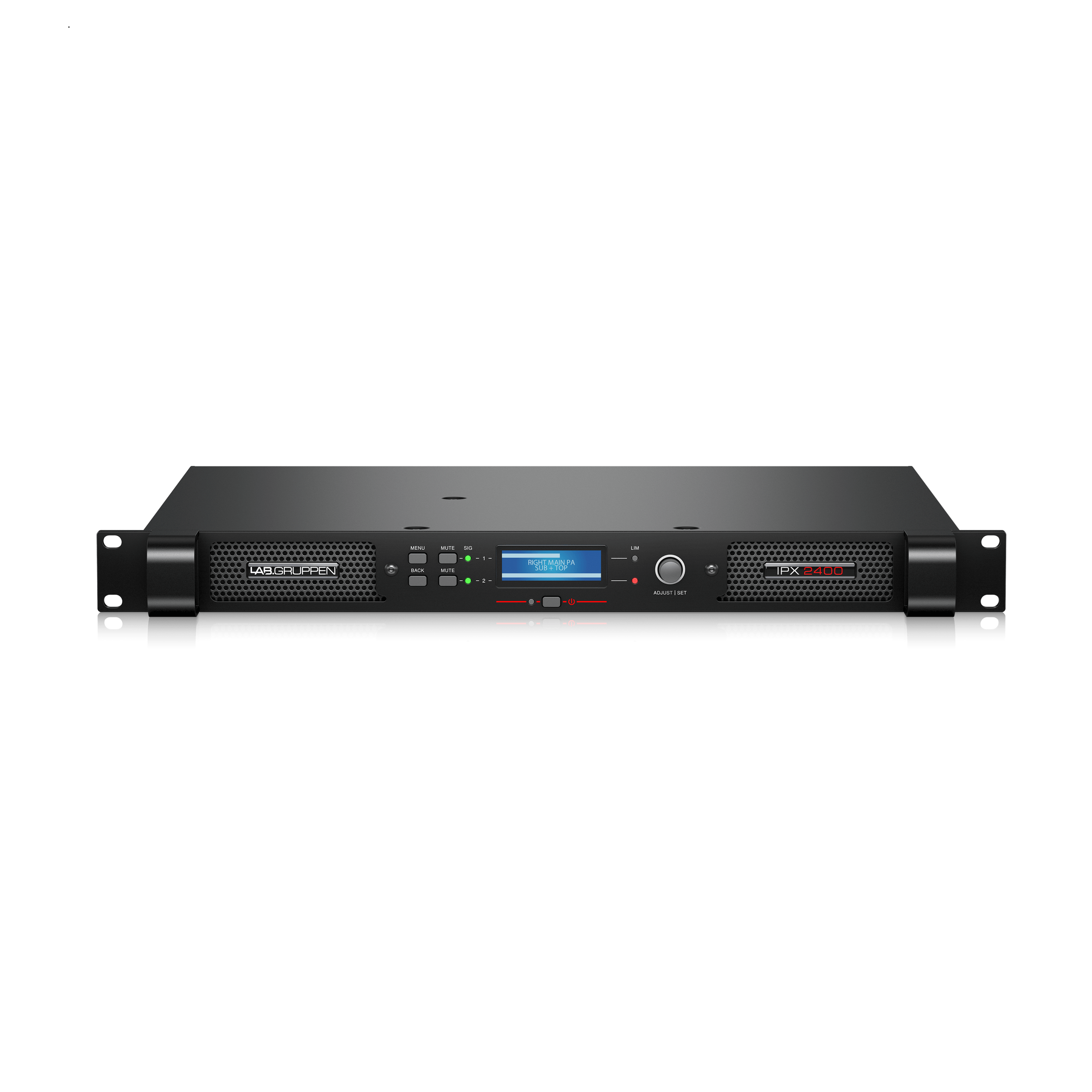

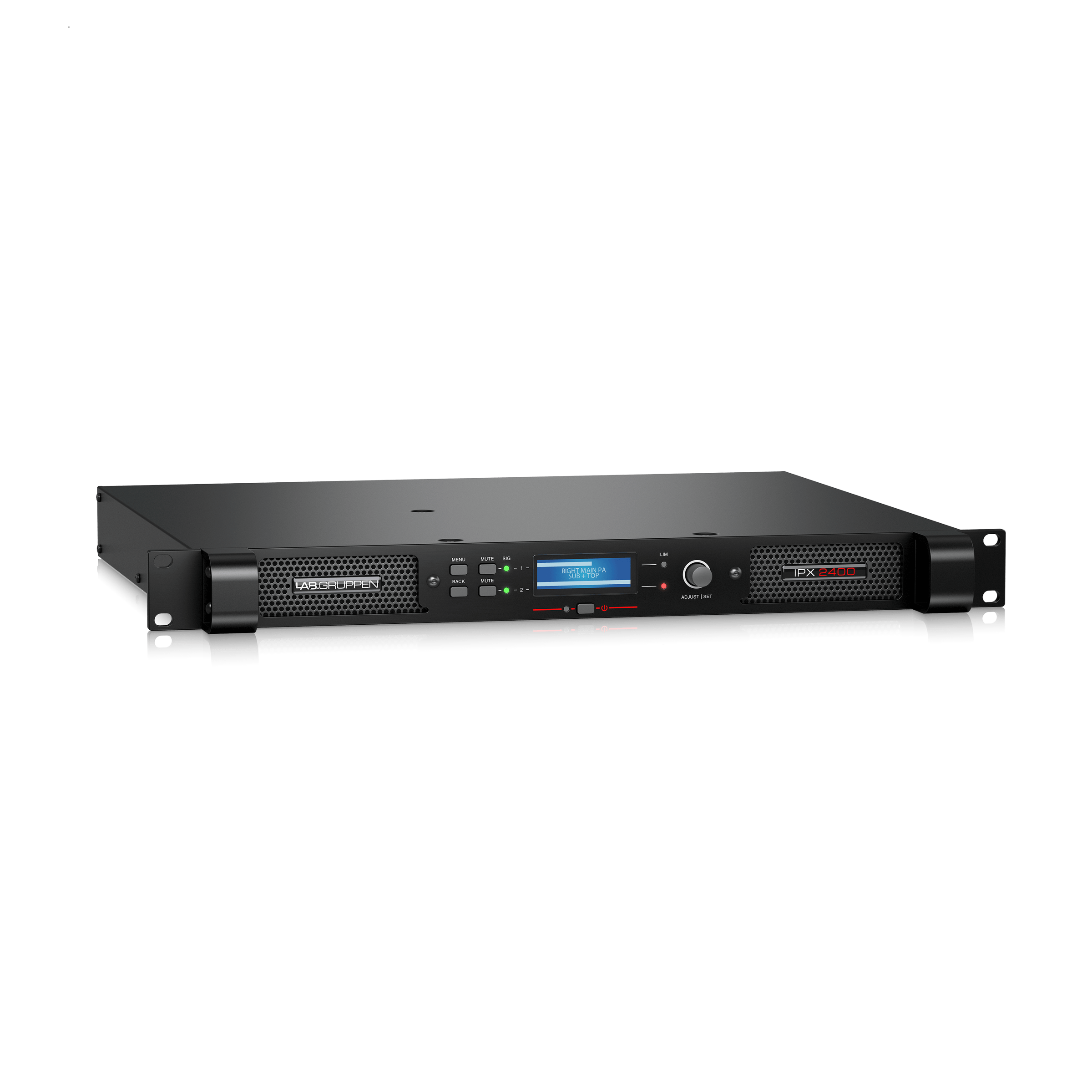

LAB GRUPPEN IPX 2400 DSP Power Amplifier

Compact 2,400 Watt 2-Channel DSP Controlled Power Amplifier
  • Compact 2,400 Watt, 2-channel amplifier with DSP control for touring applications
  • Low mains current draw with proven IDEEA technology for power conservation
  • Highly advanced DSP with 40 real-time multi-slope Parametric EQ’s
  • 50 user presets for system configuration and setup
  • Networked control via touchscreen user interface
  • AES3 and analogue inputs with redundant failover
  • Renowned Speaker Protect Limiter (maxSPL) for optimal speaker match and protection
  • 4-channel input mixer for multi-input mixing and switching
  • Backlit display with navigation buttons and encoder for front panel setup
  • Horizontal output VU meters on display in operating mode
  • Binding post and industry standard twist-lock speaker connectors
  • Universal power supply supports 100 – 240 V at 50 or 60 Hz
  • Fast network setup with auto-discovery and identification of amplifiers
  • FIR-X mode Create speaker presets with FIR and IIR filters for single and multi-way loudspeakers
分類: ,
Maximum Output Power*
2 Ω per channel, stereo 800 W
4 Ω per channel, stereo 1200 W
8 Ω per channel, stereo 600 W
Controls
Front Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel)
System
Number of channels
Output voltage 100 V peak / 70 Vrms / 39.2 dBu
Input sensitivity for maximum output voltage 6 dBu
Output current 20 Arms
Output circuit type Class-D
THD+N < 0.1%, 20 Hz – 20 kHz @ 1 W
< 0.05% @ 1 kHz, 1 dB below clip
Output noise -65 dBu, A-weighted
Signal-to-noise > 104 dB
Channel crosstalk > 80dB @ 1 kHz
Frequency response 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB
Common mode rejection (CMR) > 50 dB
Gain (all DSP controls set to 0 dB) 33 dB
Indicators
Power Red LED
Limit, per channel Red LED
Signal / mute, per channel Green/Red LED
