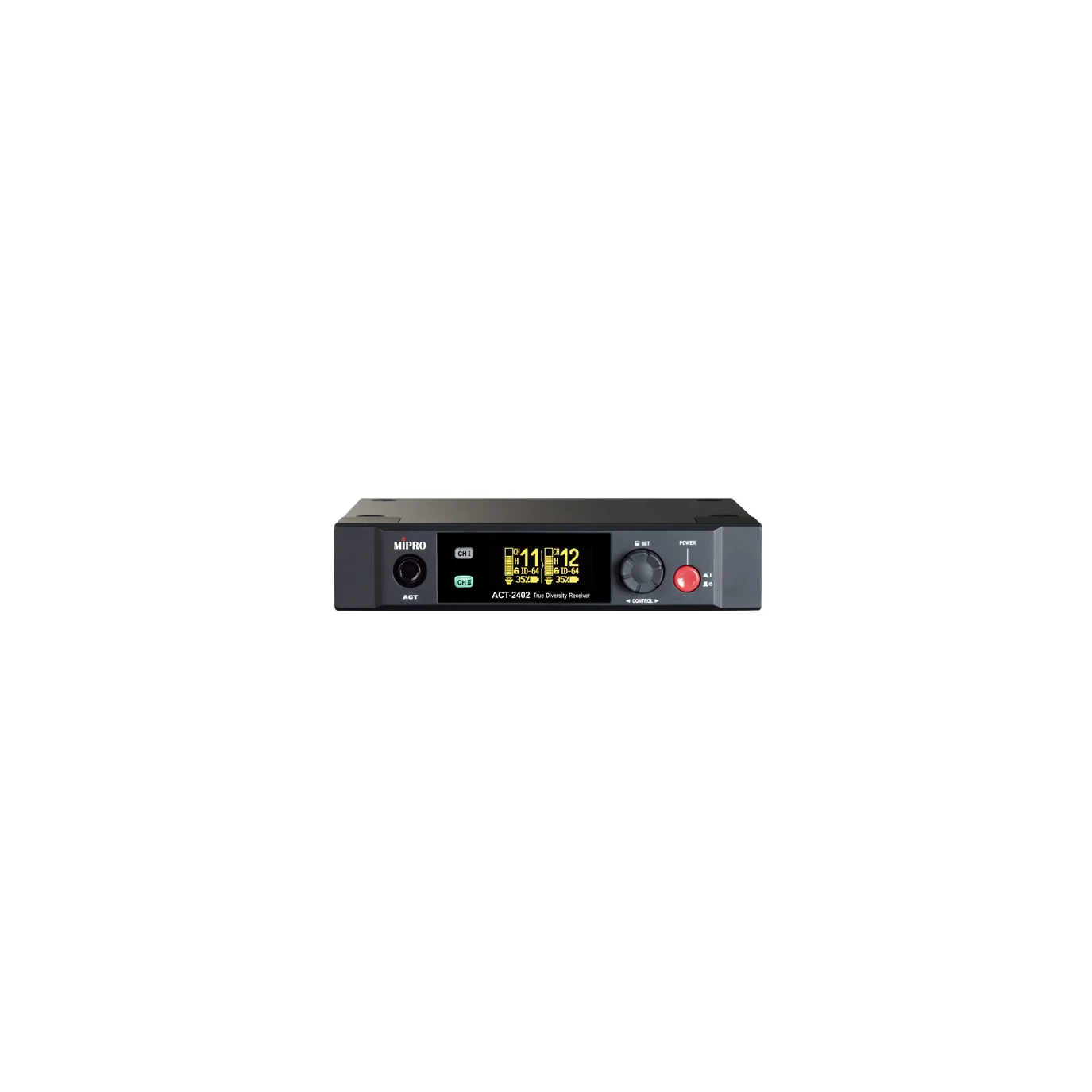

MIPRO ACT-2402 2.4 GHz Digital Dual-Channel Receiver

The ACT-2402 is a dual-channel 2.4 GHz digital receiver with a graphic OLED display and true diversity reception. It provides independent or mixed outputs and intuitive operation for classrooms and meeting venues.

• Half-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for flexible system expansion.
• Equipped with a proprietary control panel and high-contrast graphic OLED display, offering sharp visuals and wide-angle viewing with no blind spots.
• Operates in the ISM 2.4 GHz band with 12 non-interfering selectable channels, effectively avoiding interference from UHF wireless systems.
• Channel Scan function detects RF signal strength across channels to help identify the least congested options for improved stability.
• Integrates MIPRO’s patented Auto Scan and ACT frequency synchronization technologies for quick and accurate frequency pairing.
• Built-in true diversity receiving technology with dual tuners ensures extended range and uninterrupted reception.
• Utilizes 44.1 kHz / 24-bit digital audio sampling to deliver wide frequency response, high dynamic range, and clear, detailed sound.
• Provides XLR balanced and 6.3 mm unbalanced audio outputs with adjustable output levels from -10 to +20 dB. Each channel can be output independently or mixed.
• Powered by an external AC 100 – 240 V switching power supply for reliable operation across varying voltage conditions.
• Compatible with ACT-240 series handheld and bodypack transmitters, and supports other MIPRO 2.4 GHz transmitters.
• Proudly developed and manufactured in Taiwan, offering outstanding quality, performance, and value.
