Specifications
Frequency Band ISM 2.4 GHz
Display Backlit LCD
Mic. Capsule Module Work with all MIPRO’s lavalier and headworn mics
Input Connector MIPRO 4-Pin Mini XLR
Max. Audio Input 6.5 dBV
RF Power Output 2 mW / 10 mW switchable (country dependent)
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging USB Type-C
Dimensions 63 × 80 × 25 mm (W × H × D)
Weight Approx. 83 g

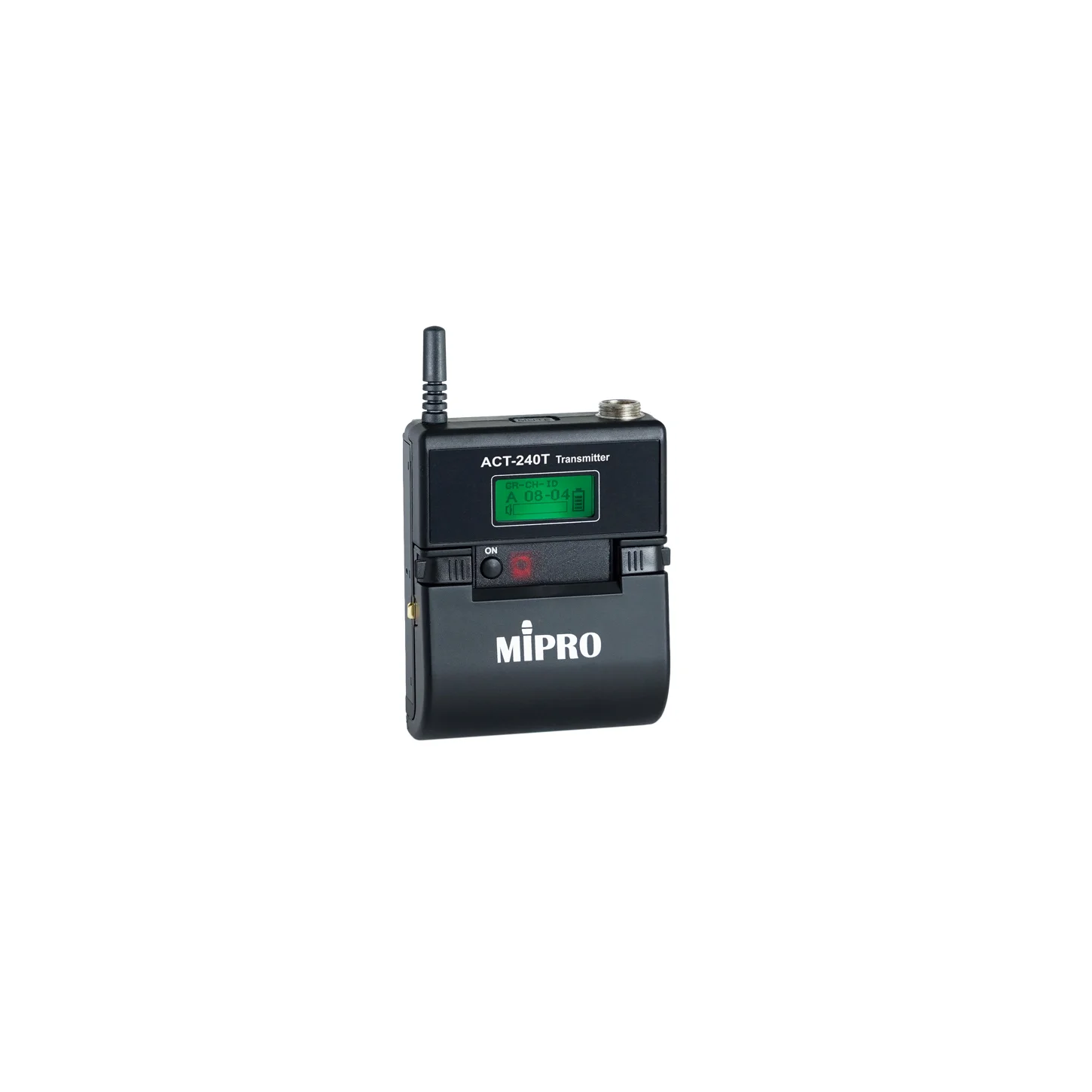

MIPRO ACT-240T 2.4 GHz Digital Bodypack Transmitter
The ACT-240T is a compact 2.4 GHz digital bodypack transmitter with a backlit LCD and a battery compartment compatible with AA or 18500 Li-ion batteries with USB-C charging. Its 4-pin Mini XLR input supports lavalier, headworn, and instrument microphones for teaching, presentations, and small meeting spaces.
- MIPRO’s digital bodypack transmitter operating in the 2.4 GHz ISM band is designed for use with MIPRO 2.4 GHz receivers and portable PA systems, ideal for education, presentations, and small venues.
- Compact and streamlined housing design for stable and comfortable belt-worn use.
- A backlit LCD clearly displays channel, battery level, and AF signal strength.
- Offers both onboard mute switch and external mute control for flexible operation.
- Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
- Wide dynamic range audio input supports high and low impedance sources and prevents signal overload and distortion.
- Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

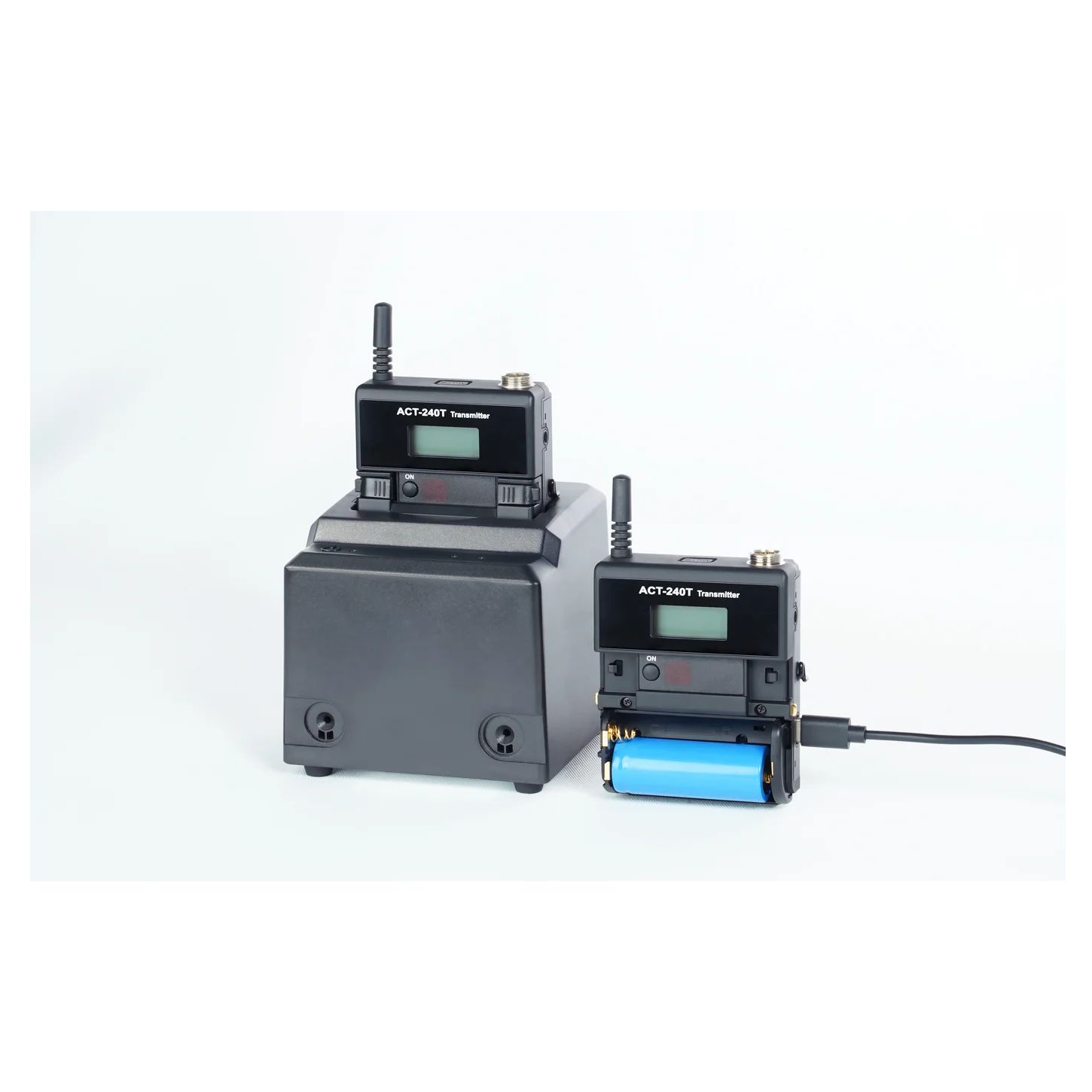

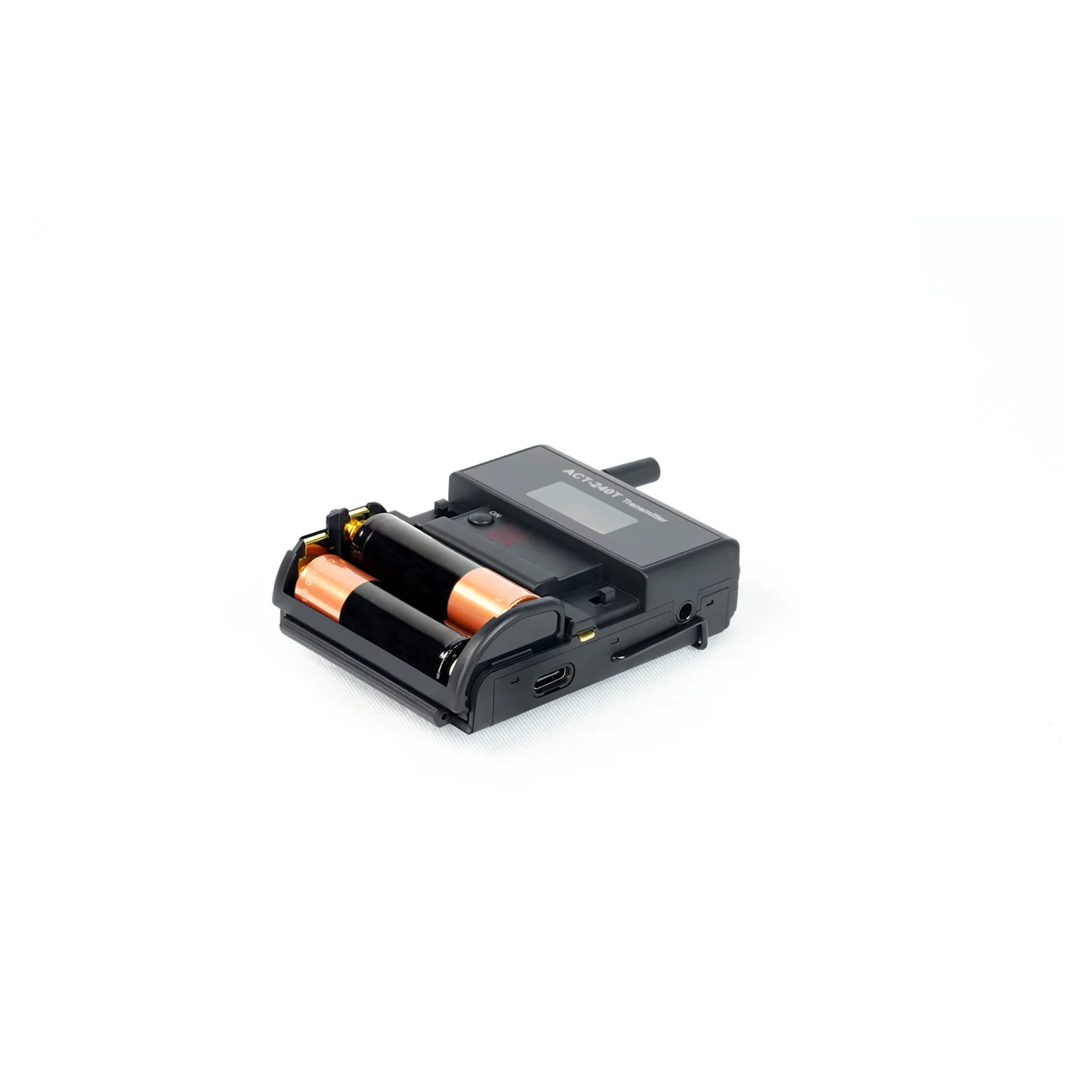

- Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.
- USB Type-C charging interface with foolproof protection circuitry allows cable charging.
- Detachable metal belt clip allows upright or inverted mounting for secure and convenient wearing.
ACT-240T 為輕巧的 2.4 GHz 數位佩戴式發射器，配備背光 LCD 顯示器。支援 AA 電池 18500 鋰電池雙電源與 USB-C 充電，搭配 4-Pin Mini XLR 輸入，可使用領夾、頭戴與樂器收音麥克風，適合教學、簡報與小型會議空間。
- ISM 數位系列專用佩戴式發射器，搭配 MIPRO 2.4 GHz 系列接收機與擴音機，適用於教學、簡報與小型會議空間等場域。
- 採用全新設計的輕巧機殼與流線外型，造型兼具美觀與實用性，方便腰掛配戴。
- 配備背光 LCD 顯示器，清楚顯示頻道、電量與 AF 音訊強度指示條。
- 提供本體按鍵與外部連線控制兩種靜音方式，操作靈活便利。
- 輸入端採 MIPRO 4-Pin Mini XLR，可搭配 MIPRO 全系列領夾或頭戴麥克風及各類樂器收音模組
- 音訊輸入具高動態範圍，兼容高低阻抗特性，有效防止飽和失真。
- 採用 MIPRO 獨創的 ACT 自動對頻技術，與接收機快速精準同步頻率。
- 首創專利電池座兩用設計，可快速更換 AA 電池或鋰離子充電電池，提升使用彈性。
- 提供 USB Type-C 充電方式，具有防呆及充電保護電路，可直接使用充電線充電。
- 金屬腰夾可調整安裝方向，確保佩戴穩定且方便操作。
