Specifications
Channel Single
Chassis EIA standard half-rack (9.5″) metal chassis
Display Graphic OLED
Frequency Band ISM 5.8 GHz
Preset Channels Presets Group A and B. There are 12 interference-free channels in Group A and a total
of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are
allowed to be set for each channel to prevent the same channel being interfered on the
same occasion.
Receiving Mode True diversity
Sample Rate 48 kHz / 24-bit
Frequency Response 18 Hz – 23 kHz
Latency < 1.5 ms (Group B)
Dynamic Range > 120 dBA
Output Connector Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range
Antenna Built-in, front panel
Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions 210 × 44 × 162 mm (W × H × D)
Weight Approx. 0.7 kg

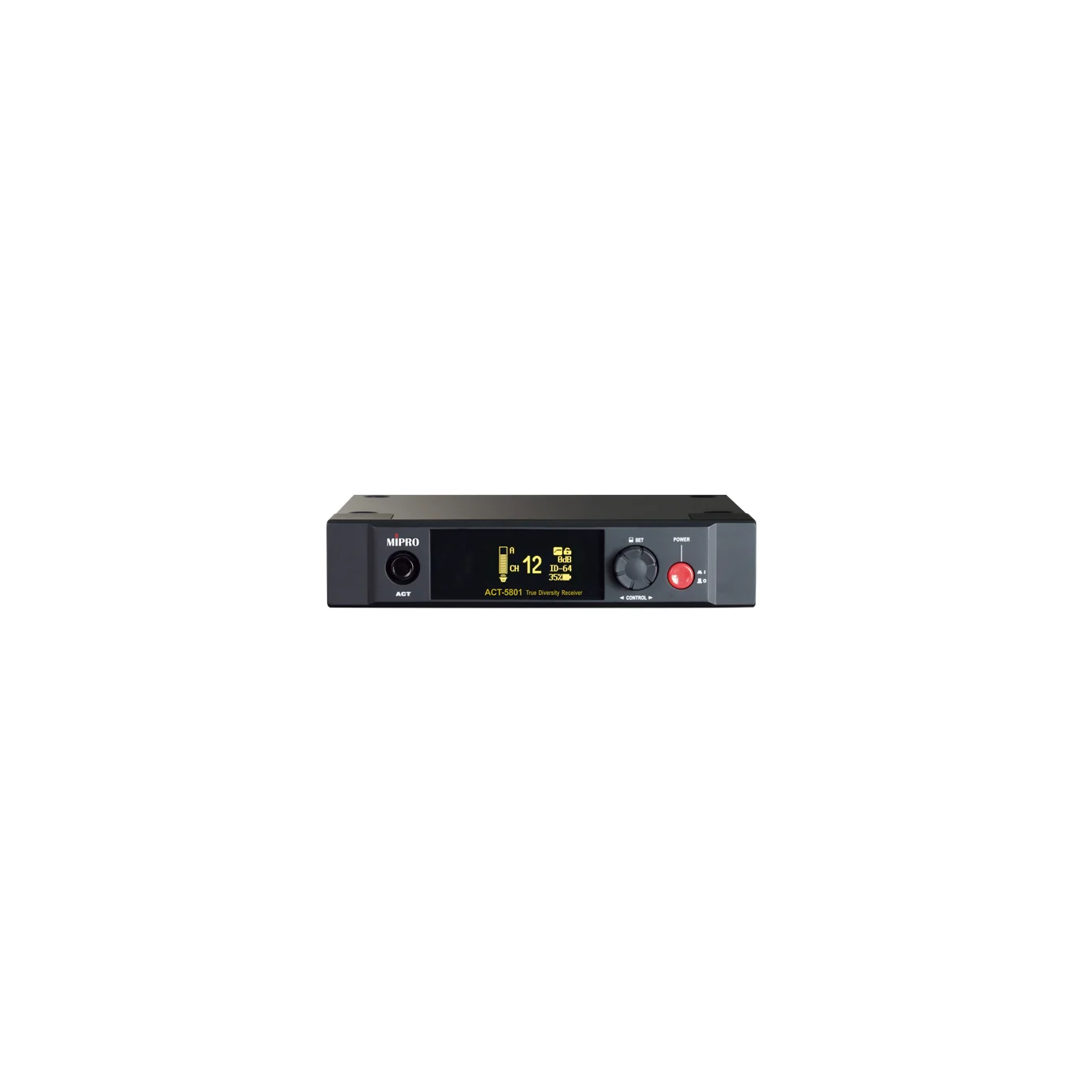

MIPRO ACT-5801 5.8 GHz Digital Single-Channel Receiver
The ACT-5801 is a single-channel 5.8 GHz digital receiver operating in the ISM band to avoid UHF and 2.4 GHz interference. With true diversity reception and 48 kHz / 24-bit audio, it delivers stable and pristine sound for professional use.
- Half-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
- Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
- Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
- Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.
- Each channel supports 64 standard IDs and 1 special ID for simultaneous multi-room operation without interference.
- Channel Scan function detects RF signal strength to help identify channels with minimal interference for enhanced stability.
- Combines MIPRO’s patented Auto Scan and ACT frequency synchronization technologies for fast and accurate frequency pairing.
- Built-in true diversity receiving technology with dual tuners ensures uninterrupted signal reception. Group B offers ultra-low latency of just 1.5 ms.
- Uses 48 kHz / 24-bit digital audio sampling to deliver wide frequency response, high dynamic range, and detailed, natural sound quality.
- Provides XLR balanced and 6.3 mm unbalanced audio outputs with adjustable output level from -10 to +20 dB.
- Powered by an external AC 100 – 240 V switching power supply for consistent performance under varying voltage conditions.
- Compatible with ACT-580 series handheld and bodypack transmitters, and supports other MIPRO 5 GHz series transmitters.
- Proudly developed and manufactured in Taiwan, delivering exceptional quality, high performance, and outstanding value.
ACT-5801 為單頻道 5.8 GHz 數位接收機，運作於 ISM 頻段，可避開 UHF 與 2.4 GHz 干擾。具備 48 kHz / 24-bit 高音質與純自動選訊技術，提供穩定純淨的專業收音。
- 半機架寬金屬機箱設計，前面板內建高效率主動式天線，結構簡潔。
- 配備獨家操作面板與高對比繪圖型 OLED 顯示器，畫面清晰、視角寬廣。
- 採用 ISM 5 GHz 頻段，有效避開 UHF 與 2.4 GHz 等無線產品及 Wi-Fi 的干擾。
- 頻率規劃具 A 與 B 雙群組：A 群組提供 12 組頻道，B 群組分為 B1 與 B2，各提供 12 組，共 24 組頻道可選擇。
- 每頻道具 64 組 ID 及 1 組特殊 ID，可於同區多空間使用，避免同頻干擾。
- 搭配 Channel Scan 頻道掃描功能，可偵測RF 強度，輔助選擇干擾較少的頻道，提升穩定性。
- 結合 MIPRO 首創的 Auto Scan 自動掃描與 ACT 頻率同步技術，快速完成頻率配對。
- 具備雙調諧器 True Diversity 純自動選訊接收技術，收訊穩定不中斷，B 群組具 1.5 ms 超低延遲。
- 採用 48 kHz / 24-bit 數位取樣，具寬頻響應與高動態範圍，展現清晰細膩音質。
- 提供 XLR 平衡式與 6.3 mm 非平衡式音訊輸出，音量可調範圍 -10 ~ +20 dB。
- 使用 AC 100～240V 外接式交換電源，穩定運作不受電壓變動影響。
- 可搭配 ACT-580 系列手握式與佩戴式發射器，並相容 MIPRO其他 5 GHz 專用發射器。
- 台灣研發製造，品質優異、性價比高，兼具專業性能與價格優勢。
相關商品
Mipro
貨號：
MIPRO TA-80 UHF Digital Plug-on Transmitter
Mipro
貨號：

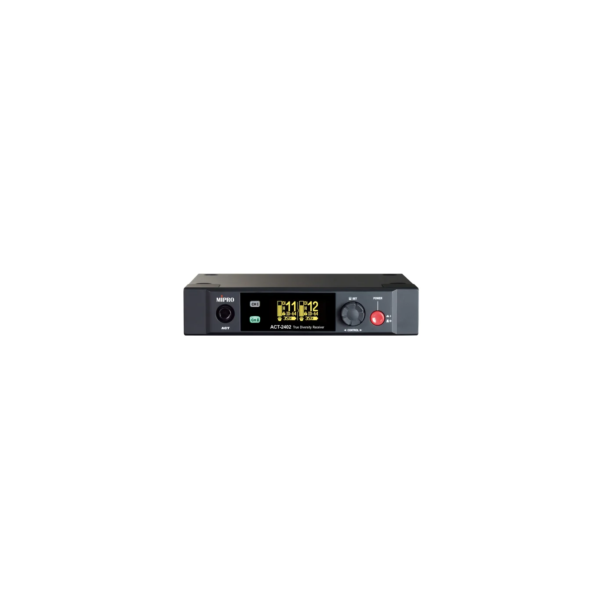

MIPRO ACT-2402 2.4 GHz Digital Dual-Channel Receiver
