Specifications
Frequency Band UHF 470 – 960 MHz
System Gain 8 ± 1 dB

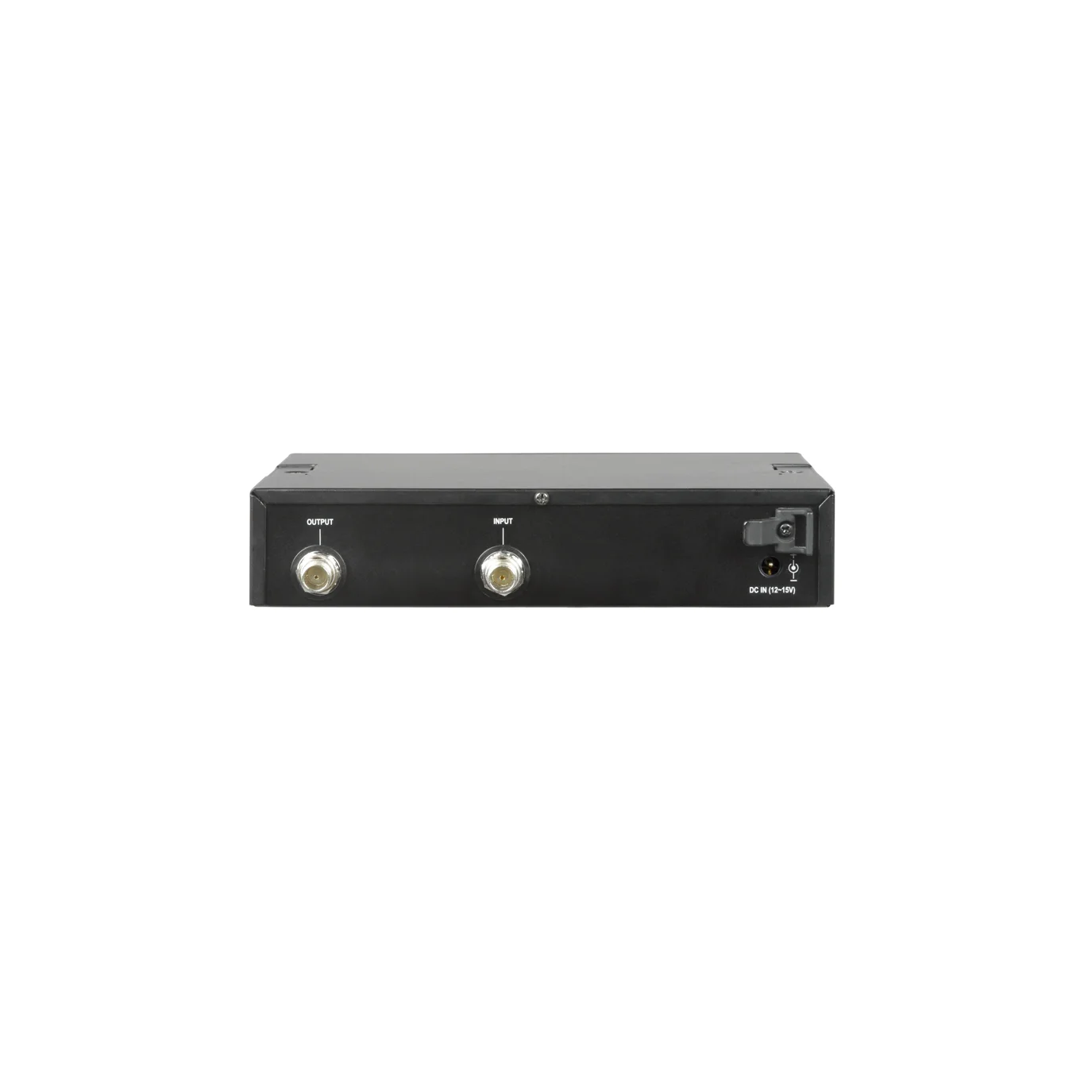

Input Connector 1 × TNC
Output Connectors 1 × TNC
System Impedance 50 Ω
Max. RF Power Output 1 W
Power Supply DC 12 – 15 V
Dimensions 210 × 44 × 204 mm (W × H × D)
Weight Approx. 1.0 kg
MIPRO AD-90A UHF Wideband RF Power Amplifier
The AD-90A is a UHF wideband RF power amplifier that boosts transmitter output across 470–960 MHz, extending transmission range and enhancing signal stability. It works with various UHF transmitting antennas and is suitable for stage and long-distance applications.
- Covers UHF 470 – 960 MHz frequency range and amplifies transmitter output power for long-distance transmission.
- Delivers up to +30 dBm (1 W) maximum output power, ideal for extended range applications.
- Compatible with MI-909T, MT-92A, MTS-100 transmitters and AD-90S splitter to boost system performance and coverage.
- Pairs with AT-70W, AT-90W, and AT-100 antennas to strengthen wireless transmission distance and stability.

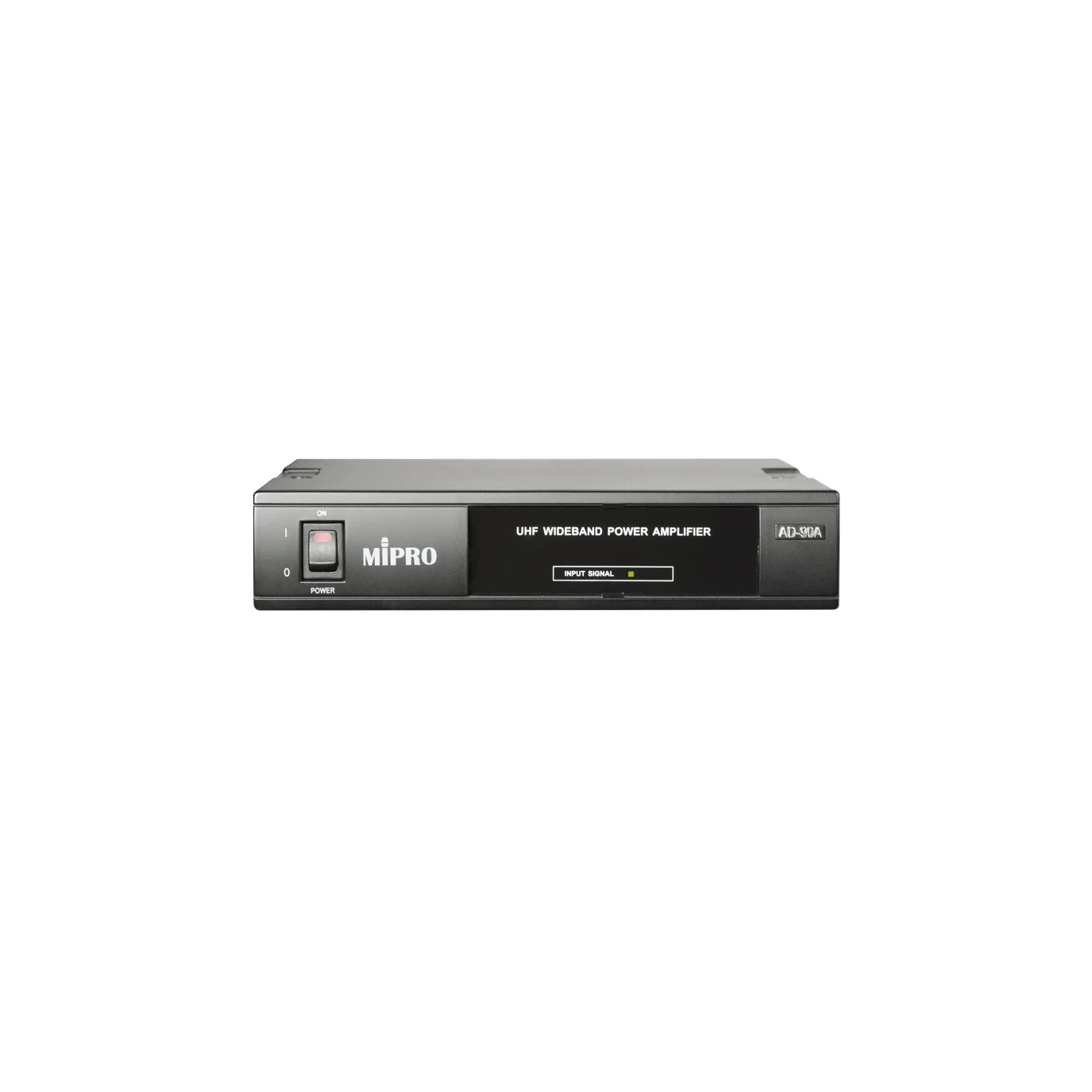

- Front panel LED indicators illuminate when input power reaches the set level, allowing easy signal status monitoring.
AD-90A 為 UHF 470 ~ 960 MHz 射頻功率放大器，可提升發射距離並強化傳輸穩定性。
- 適用 UHF 470 ~ 960 MHz 寬頻範圍，有效放大無線發射器的輸出功率。
- 最大輸出功率可達 +30 dBm（1 W），適合長距離發射需求。
- 可與 MI-909T、MT-92A、MTS-100 發射器及 AD-90S 分配器搭配使用，提升整體系統的傳輸效能與覆蓋範圍。
- 搭配 AT-70W、AT-90W、AT-100 等天線，強化無線傳輸的距離與穩定性。
- 面板配置 LED 指示燈，當輸入功率達指定強度時自動亮起，利於即時掌握訊號狀態。
