Specifications
Max. SPL 116 dB
Drivers 1.5″ Tweeter & 10″ Woofer
Frequency Range 50 Hz – 18 kHz
Audio Inputs MIC IN: 1 × XLR, 1 × 1/4″ (6.3 mm)
LINE IN: 1 × RCA
Audio Output LINE OUT: 1 × RCA
Amplifier Class D & Class AB
Output Power 267 W RMS, 456 W peak
Receiver Modules Up to 4
Audio Players Bluetooth, CD/USB/SD player & recorder (optional)
Transmitter Modules MTM-92 (optional)
Extension Speaker SpeakON output
Other Functions TONE, VOP and ECHO control on mics
Power Supply AC 100 – 240 V or DC 24 – 32 V
Battery Type Built-in two Lead-acid battery packs (MB-70)
Battery Indicator 4-segment indicators (25/50/75/100%)
Standby Time Up to 6 hours
Dimensions 360 × 558 × 350 mm (W × H × D)
Weight Approx. 18.0 kg
Optional Accessories SC-808 carry bag, MS-70 tripod stand, MM-Series microphones, MB-80 Li-ion battery
Note Patented. Telecom and safety regulations approved

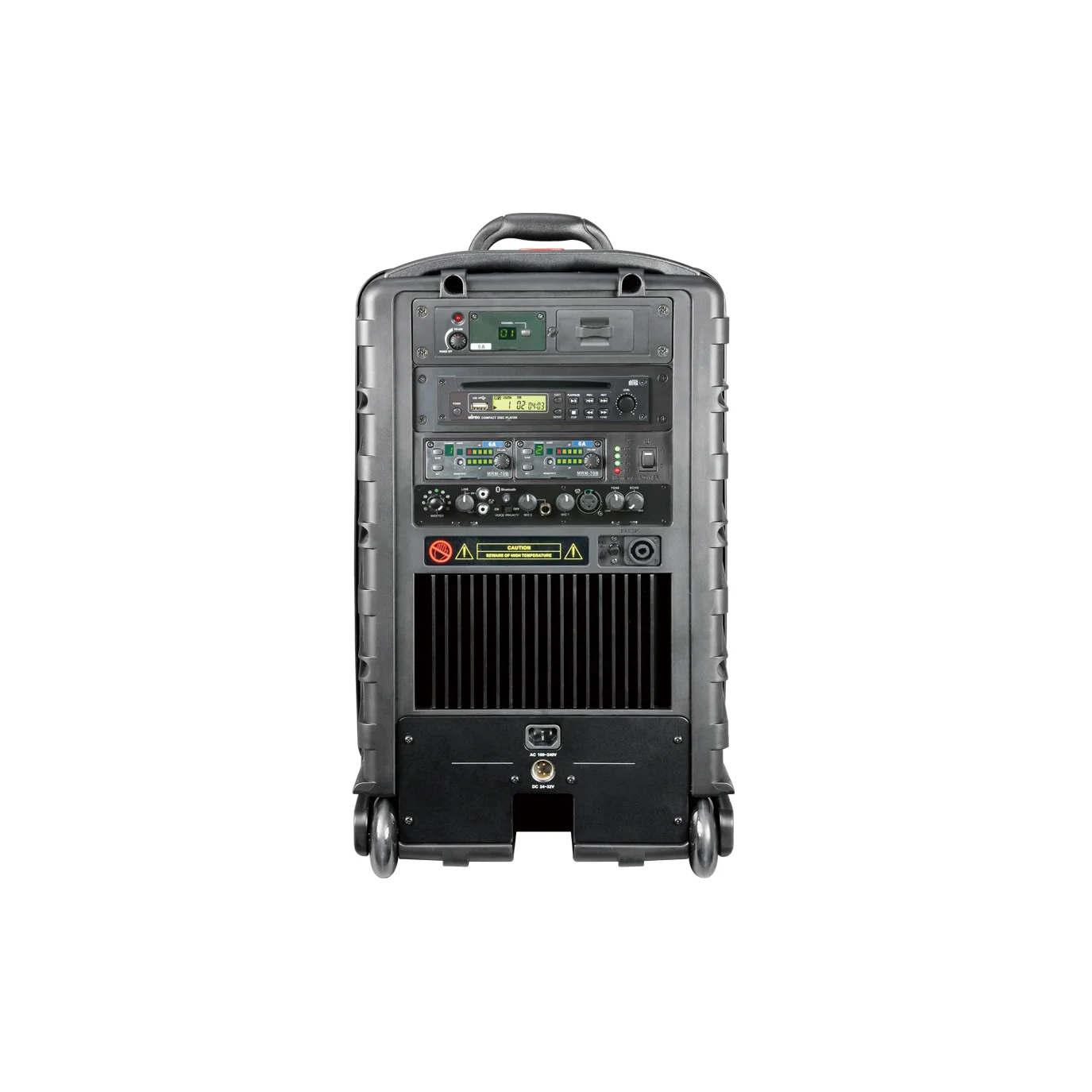

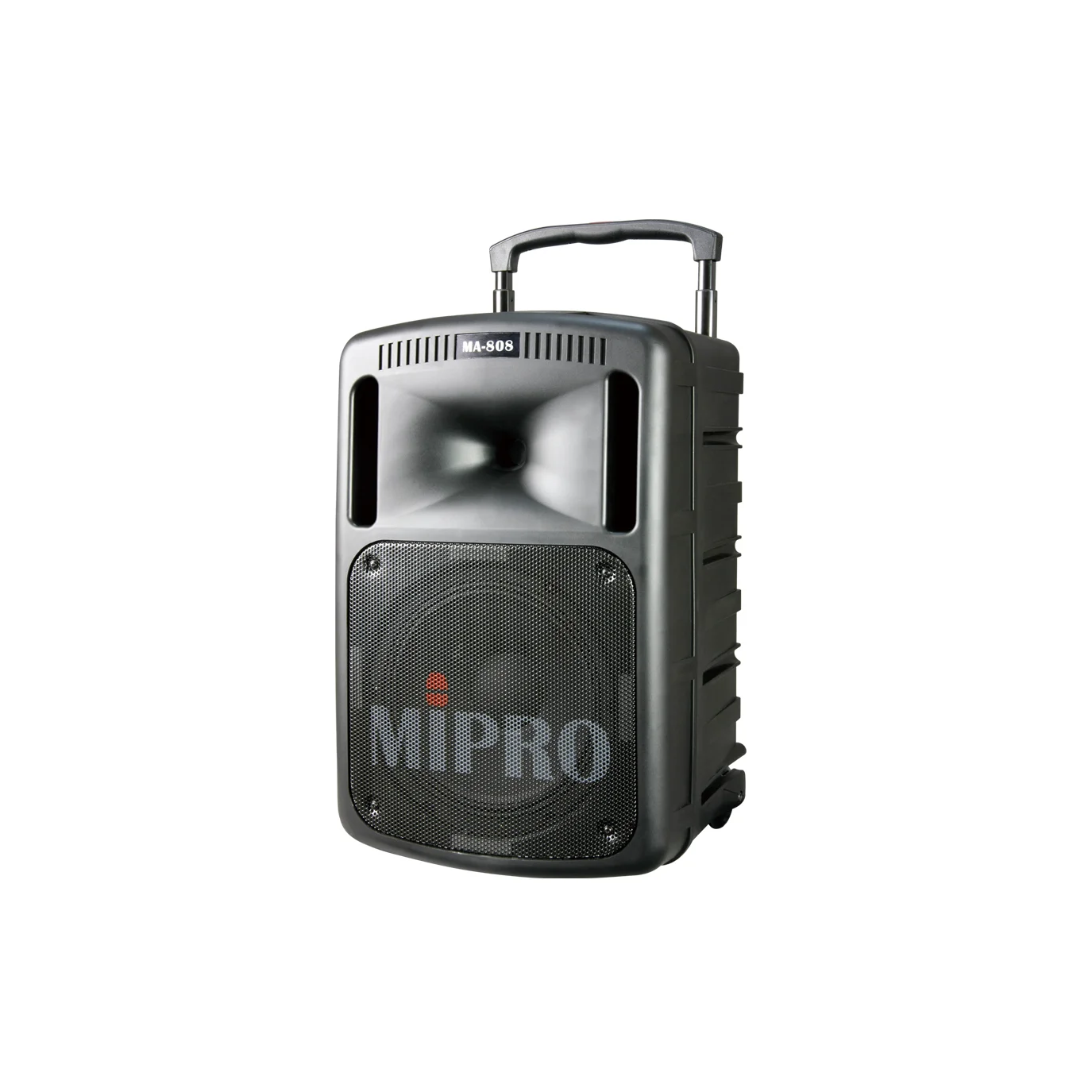

MIPRO MA-808 Portable Wireless PA Speaker System
The MA-808 is a flagship portable wireless PA system featuring a high-efficiency amplifier and a two-way speaker system for large events. It offers Bluetooth audio and modular expandability for auditoriums, rallies, and outdoor applications.
- High-efficiency Class-D + Class-AB amplifier powers a two-way speaker system, delivering rich and powerful sound for medium to large indoor and outdoor events and performances.
- Modular design supports receiver, transmitter, and player modules, with independent volume control for external sources and wired microphones.
- Receiver module offers multiple frequency band options and can be expanded to up to 4 sets to meet multi-microphone requirements.
- Compatible with ACT-32HR handheld microphone for remote master volume control.
- Built-in Bluetooth and TWS stereo technology ensure stable wireless connectivity and stereo music playback.
- External speaker output allows connection to the MA-808EXP passive speaker, or use with an optional transmitter module to link another MA-808 for wider coverage.
- Equipped with retractable handle, wheels, and microphone storage compartment for easy transport, plus tripod mount for flexible setup.
- Features Voice Priority (VOP), microphone echo, and tone control functions, meeting diverse professional application needs.
- Supports both AC power and rechargeable battery operation for long-lasting, stable performance.
MA-808 為旗艦型可攜式無線擴音機，具高效率擴大器與雙音路喇叭，能因應大型活動的高音量與清晰度需求。整合藍牙音訊與模組化擴充，適合禮堂、集會與戶外用途。
- 高效率 D 類 + AB 類放大器驅動雙音路喇叭系統，聲音渾厚有力，適合中大型室內外活動與演出。
- 模組化設計，支援無線接收、發射與錄放音模組，外部音源與有線麥克風音量可獨立調整。
- 無線接收模組提供多頻段選擇，最多可擴充至 4 組，靈活應對多麥克風需求。
- 可搭配 ACT-32HR 無線手握麥克風，支援無線遙控主機總音量。
- 內建藍牙與 TWS 無線立體聲技術，穩定連接並可播放立體聲音樂。
- 具外接喇叭輸出，可搭配 MA-808EXP 被動式音箱；或加裝無線發射模組，連結 MA-808AXP 主動式音箱，擴大擴音範圍。
- 配備隱藏式伸縮拉桿、滾輪與麥克風收納盒，方便移動；機身具喇叭腳架安裝孔，可另購腳架使用。
- 具語音優先（VOP）、麥克風迴音（Echo）與高低音調整（Tone）功能，滿足演講與多種專業應用需求。
- 支援 AC 電源與充電電池，續航力長，確保長時間穩定運作。
