Specifications
Frequency Band ISM 2.4 GHz
Gain Fixed, approx. 20 dB
Input Connector 1 × TNC
Output Connector 1 × TNC
System Impedance 50 Ω
Input Power DC 10 – 24 V
Regulated Power
Output Equals to the bias
Dimensions 41 × 80 × 24 mm (W × H × D)
Weight Approx. 260 g

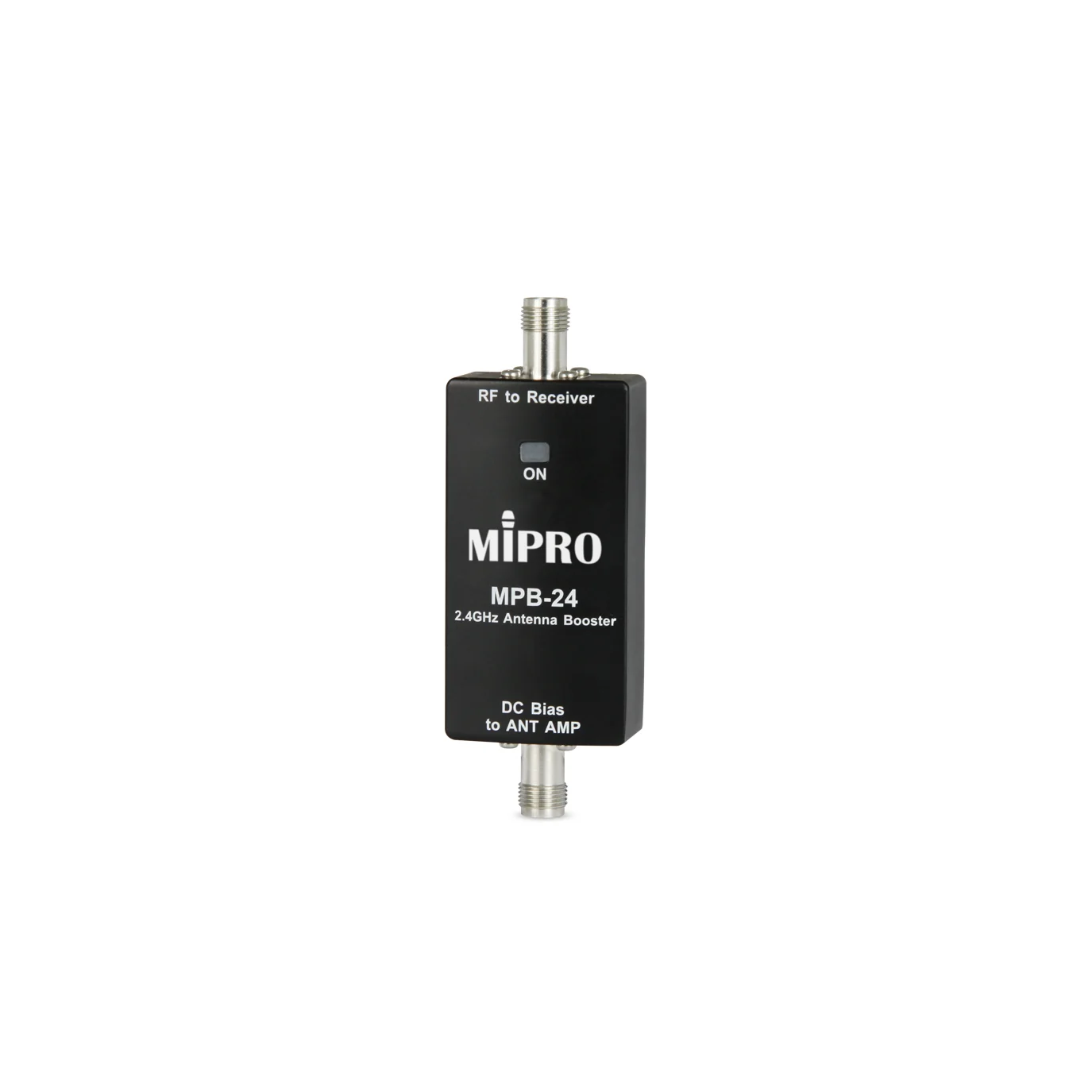

MIPRO MPB-24 2.4 GHz Antenna Booster
The MPB-24 is a 2.4 GHz antenna booster with fixed 12 dB gain, compensating cable loss and improving reception sensitivity for stable wireless transmission.
- Designed for the 2.4 GHz frequency band, providing a fixed gain of approximately 20 dB to compensate for signal loss over long cables.
- Powered via bias voltage from the receiver’s antenna port and supports external antenna connections for flexible installation.
- Durable aluminum housing offers excellent heat dissipation and water resistance, ensuring system stability and durability.
MPB-24 為 2.4 GHz 天線強波器，具固定 12 dB 增益，適用於需穩定傳輸的安裝環境。
- 適用於 2.4 GHz 頻段，提供固定約 20 dB 增益，有效補償長距離纜線造成的訊號損耗，提升接收距離與傳輸穩定性。
- 可由接收機天線端提供偏壓供電，並搭配外接天線，靈活應用於各種安裝場域。
- 鋁合金外殼具優異散熱與防水性能，確保系統穩定與耐用。
