Specifications
Frequency Band ISM 5.8 GHz
Gain Fixed, approx. 20 dB
Input Connector 1 × TNC
Output Connector 1 × TNC
System Impedance 50 Ω
Input Power DC 10 – 24 V
Regulated Power
Output Equals to the bias
Dimensions 41 × 80 × 24 mm (W × H × D)
Weight Approx. 260 g

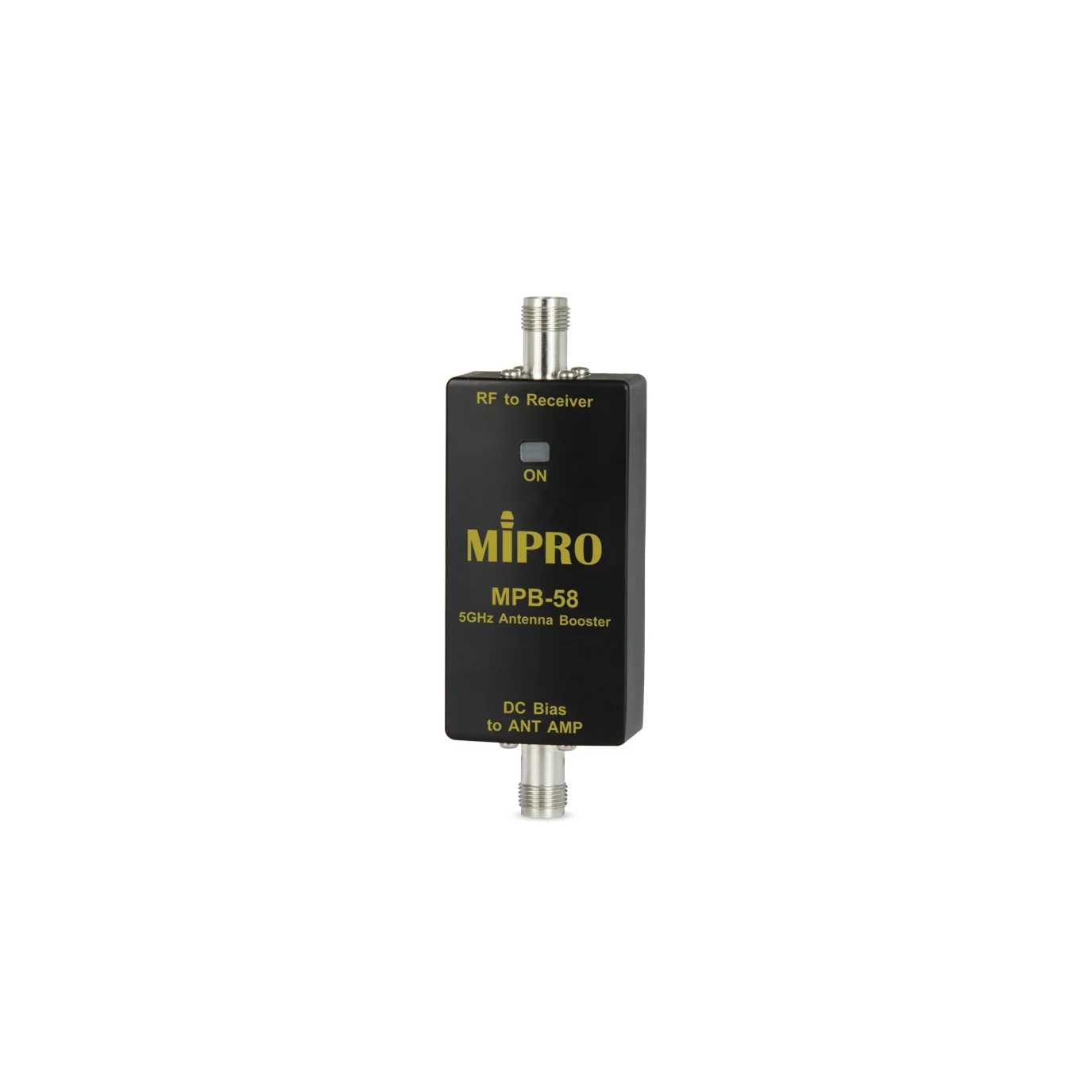

MIPRO MPB-58 5 GHz Antenna Booster
The MPB-58 is a 5 GHz antenna booster offering a fixed 20 dB gain, compensating cable loss to improve reception range and stability when used with receivers and the AT-58.
- Designed for the 5 GHz frequency band, delivering a fixed gain of approximately 20 dB to offset signal loss from long cable runs.
- Powered via bias voltage from the receiver’s antenna port and supports external antenna connections for versatile deployment.
- Aluminum alloy housing ensures superior heat dissipation and waterproof performance, enhancing system reliability.
MPB-58 為 5 GHz 天線強波器，具固定約 20 dB 增益，適用於中長距離的 5 GHz 系統。
- 適用於 5 GHz 頻段，提供固定約 20 dB 增益，有效補償長距離纜線造成的訊號損耗，提升接收距離與傳輸穩定性。
- 可由接收機天線端提供偏壓供電，並搭配外接天線，靈活應用於各種安裝場域。
- 鋁合金外殼具優異散熱與防水性能，確保系統穩定與耐用。
