Specifications
Frequency Band UHF 480 – 960 MHz
Bandwidth 72 MHz
RF Power Output 10 / 50 mW switchable (country dependent)
Gain Setting -18 to 30 dB, 9 selectable settings
AF Input Level 2 V max. @ 0 dB
Phantom Power 12 V / 48 V @ 10 mA max.
Battery Type One 18500 Li-ion battery
Battery Charging MP-8T charging station
Dimensions 44 × 114 × 39 mm (W × H × D)
Weight Approx. 180 g

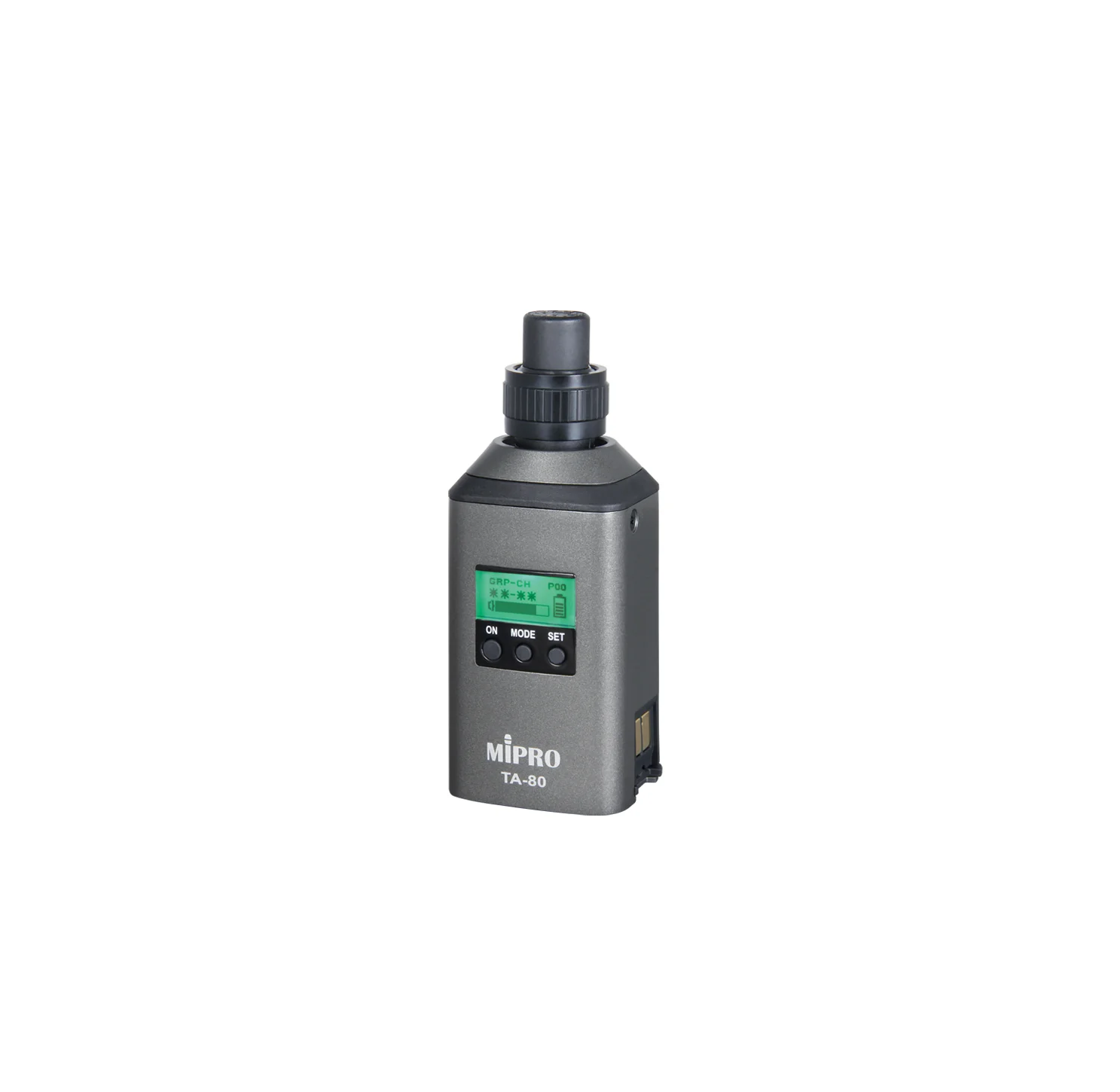

MIPRO TA-80 UHF Digital Plug-on Transmitter
The TA-80 is a digital plug-on transmitter that converts wired microphones into wireless operation. It features phantom-power support, stable low-latency RF transmission, and full compatibility with ACT-800 Series receivers.
- Full aluminum alloy housing provides superior durability and excellent RF shielding for reduced interference.
- Digital transmission technology ensures high audio quality, low latency, and strong anti-interference performance, ideal for professional stage and studio applications.
- Color LCD screen displays channel, battery, and signal status with intuitive operation.

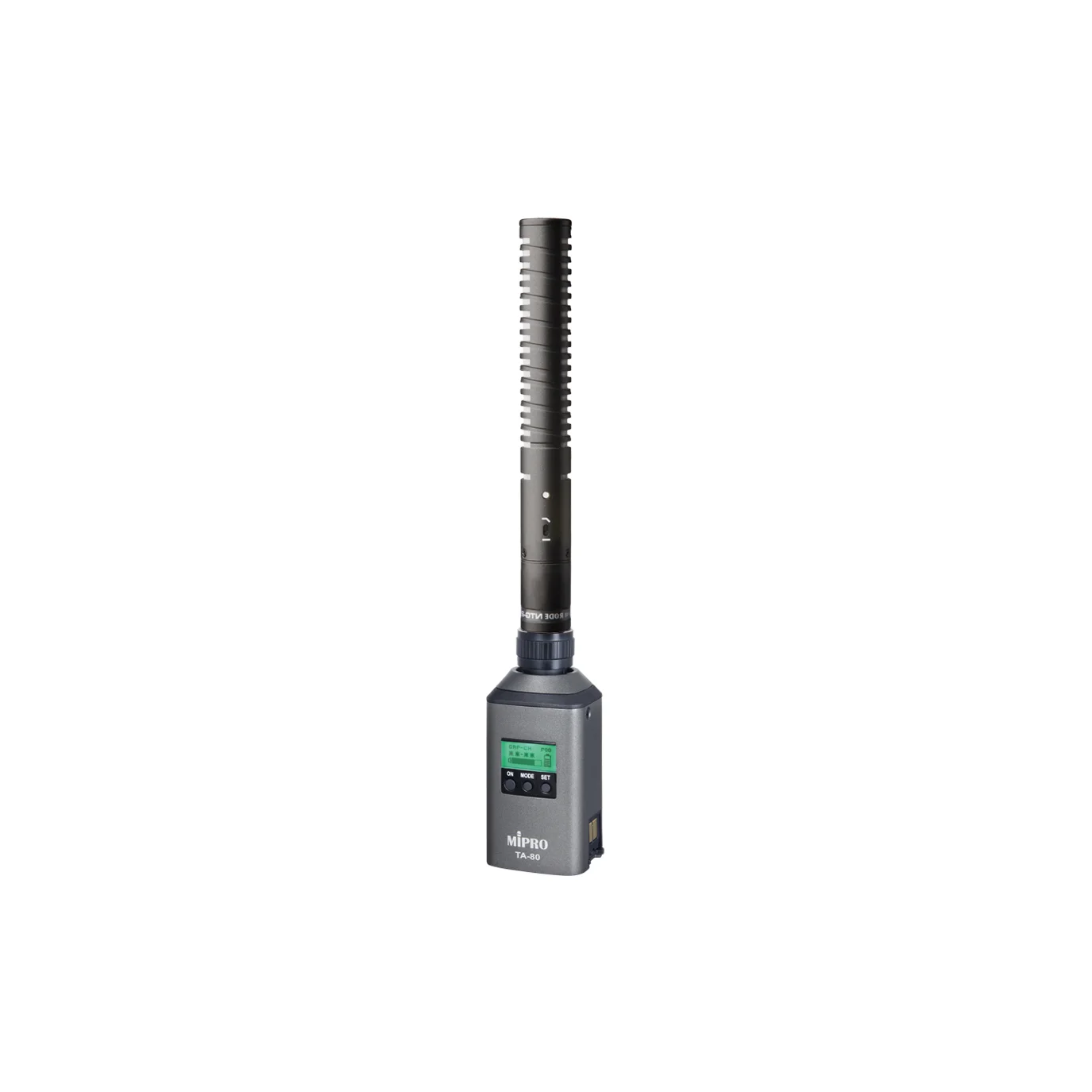

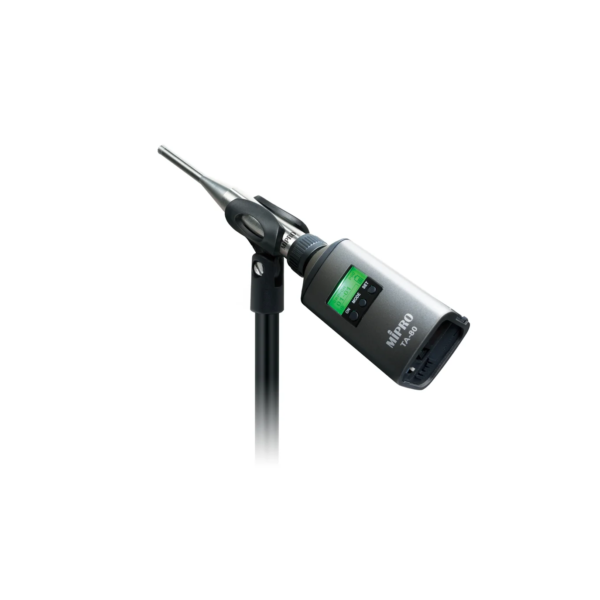

- XLR audio input compatible with most professional dynamic and condenser microphones.
- Supports 12 V or 48 V phantom power to drive a wide range of condenser microphones.
- Selectable RF power output of 10 / 50 mW allows flexible adjustment to match different environments.
- Equipped with a replaceable 18500 lithium battery offering 5–8 hours of use, chargeable via MP-8T charging dock or external charger.
TA-80 為數位插接式發射器，可將有線麥克風轉為無線使用。具備幻象電源、低延遲且穩定的射頻傳輸，可對應 ACT-800 系列接收機。
- 採用全鋁合金外殼，堅固耐用並具備優異的 RF 屏蔽效果，降低干擾。
- 數位傳輸技術提供高音質、低延遲與抗干擾能力，適合高階舞台與錄音應用。
- 彩色 LCD 螢幕顯示頻道、電量與訊號狀態，操作直覺。
- XLR 音訊輸入設計，適用多數專業動圈與電容式麥克風。
- 支援 12 V 或 48 V 幻象電源，能驅動大部分電容式麥克風。
- 可切換輸出功率 10 / 50 mW，依照使用環境靈活調整。
- 內建可更換式 18500 鋰電池，充滿可使用約 5～8 小時，可透過專用充電座 MP-8T 或取出電池另行充電。
