Specifications
| Frequency Response @-6 dB | 32 Hz to 150 Hz |
| Sensitivity 1W@1m | 106 dB SPL Nominal |
| Peak SPL@1m | 138 dB |
| Crossover Frequency | 32-85 Hz, 32-120 Hz, 32-150 Hz |
| Nominal Impedance | 8 Ω |
| Recommended Power | 1100 to 1750 Watts / 8 Ohms |
Features

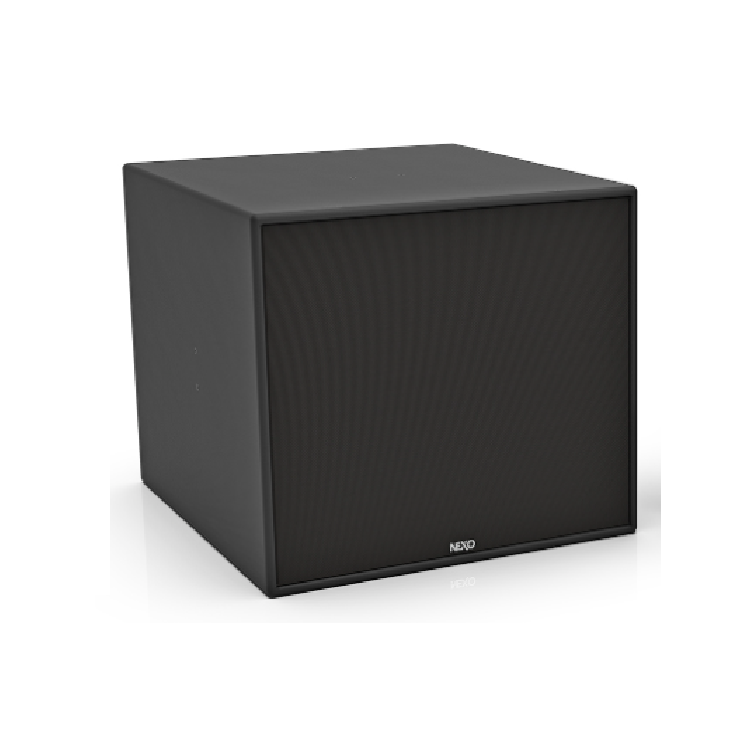

| LF Component | 1 x 18” 8 Ohms long excursion |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 4 x pairs of M10 rigging points (two on each side) |
| Material | 15mm baltic birch plywood body and Magnelis grill |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 531mm x 600mm x 671mm (20.9” x 23.6” x 26.4”) |
| Weight: Net | 41 kg (91 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| IP Rating | IP55 |
| System Operation | |
| Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: 1 x eLS18 per channel |
| Optional powering solution | DTD + DTDAMP4x0.7: 1 x eLS18 per bridged channels |
| DTD + DTDAMP4x1.3: 1 x eLS18 per bridged channels | |
| NXAMP4x1mk2 Powered TDcontroller: up to 2 x eLS18 per bridged channels | |
| NXAMP4x4mk2 Powered TDcontroller: up to 4 x eLS18 per channel |
