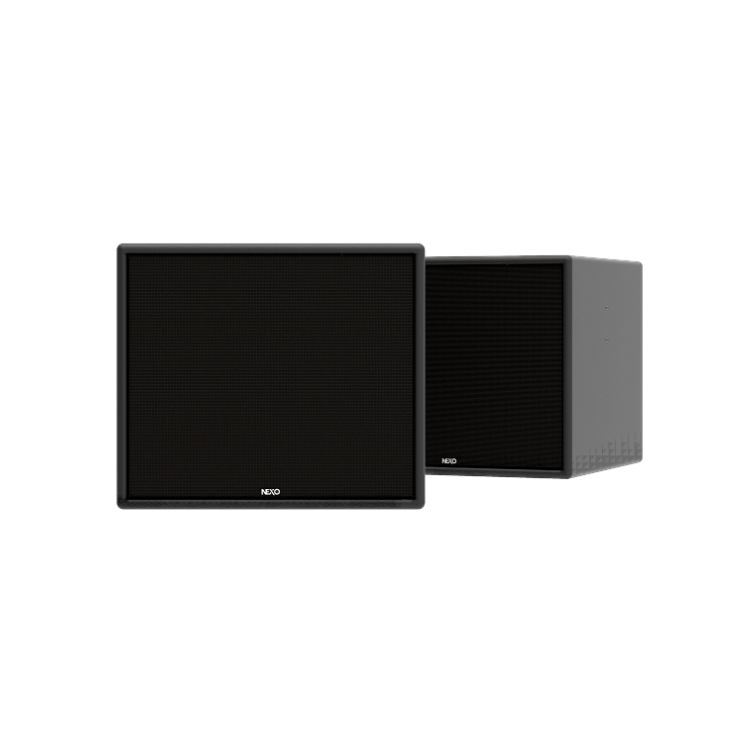

Specifications
| Frequency Response @-6 dB | 45 Hz to 150 Hz |
| Sensitivity 1W@1m | 102 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Crossover Frequency | 45-85 Hz, 45-120 Hz, 45-150 Hz |
| Nominal Impedance | 6 Ω |
| Recommended Power | 450 to 700 Watts / 6 Ohms (requires a 700 to 1000 Watts / 4 Ohms amplifier) |
Features
| LF Component | 1 x Neodymium 12″ 6 Ohms long excursion |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 4 x pairs of M10 rigging points (two on each side) |
| Material | 15 mm thick birch plywood body and Magnelis® grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 365mm x 423mm x 450mm (14.4″ x 16.7″ x 17.7″) |
| Weight: Net | 14.5 kg (32 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| IP Rating | IP55 |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: up to 2 x eLS400 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x0.7 : 1 x eLS400 per channel |
| DTDcontroller + DTDAMP4x1.3 : 1 x eLS400 per channel | |
| NXAMP4x2mk2 Powered TDcontroller: up to 3 x eLS400 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: up to 3 x eLS400 per channel |
