Specifications
| Frequency Response @-6 dB | 50 Hz to 20 kHz |
| Sensitivity 1W@1m | 107 dB SPL Nominal |
| Peak SPL@1m | 140 dB Peak (Passive mode) / 142 dB Peak (Active mode) |
| Operating Voltage | 55 Vrms (180 Vpeak) |

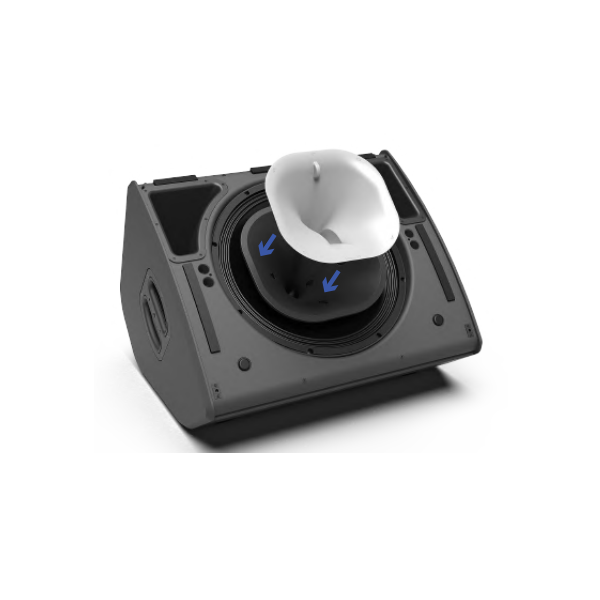

| HF Dispersion (according to flanges) | 60°x60° (Default) – 90°x40° (with 90×40 flange) – 50°~90°x40° (with PS flange) |
| Crossover Frequency | 50 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | Active: (8 Ohms LF + 8 Ohms HF) / Passive: 8 Ohms |
| Recommended Power | Active: (1200 to 1900 W LF + 600 to 950 W HF) / Passive: 1200 to 1900 W |
Features
| Components | 1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms |
| Number of ways (Touring and TIS version) | 2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchable |
| Number of ways (Install version) | 2 ways passive |
| Connectors (Touring and TIS version) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
| Connectors (Install version) | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish (Touring version) | Magnelis® front grille + back fabric behind |
| Front Finish (Install and TIS version) | Acoustic fabric fitted front grille |
| Height x Width x Depth | 680mm x 579mm x 446mm (26.8” x 22.8” x 17.6”) |
| Weight: Net | 33 kg (73 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| System Operation | |
| Recommended powering solution | NXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x0.7 (Bridged) : 1 x P18 per bridged channels |
| NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P18 per bridged channels | |
| NXAMP4x2mk2 Powered TDcontroller: 1 x P18 per channel |
