Specifications
| With NEXO Processing | |
| Frequency Response (+6 dB) | 66 Hz to 20 kHz |
| Sensitivity 1W@1M | 101 dB SPL Nominal |
| Peak SPL Level (1m) | 129 dB Peak |
| Recommended Amplifiers | 400 to 630 Watts / 8Ω |
| HF Dispersion (according to horn) | 100° x 100° (Default) – 110° x 60° (with 110° x 60° optional horn) |
| Crossover Frequency | 66 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Power | 350 to 550 Watts into 8 Ω |
Features

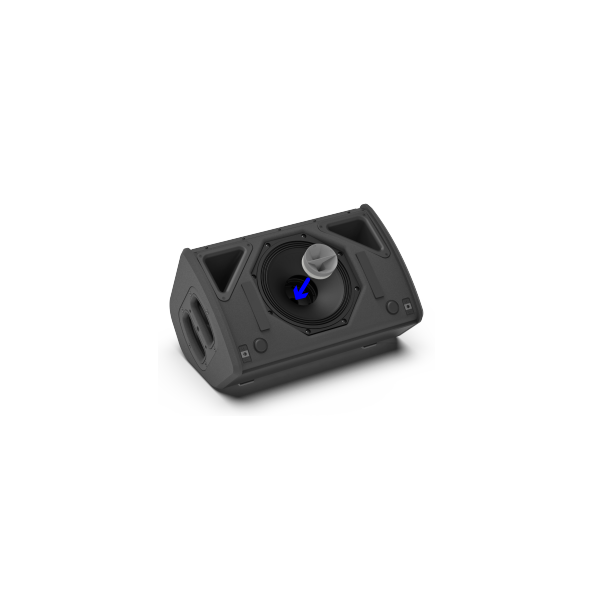

| Components | 1 x Coaxial LF 8″ 8 Ohms long excursion & Neodymium HF 1.5″ 8 Ohms |
| Number of ways | 2 ways passive |
| Connectors (Touring/TIS versions) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
| Connectors (Install version) | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish (Touring version) | Magnelis® steel front grille + back mesh |
| Front Finish (Install/TIS versions) | UV resistant acoustic fabric fitted front grill |
| Height x Width x Depth | 423 mm x 276 mm x 250 mm (16.7″ x 10.9″ x 9.8″) |
| Weight: Net | 12 kg (26.5 lbs) |
| Operating Temperature Range | 0°C – 40 °C (32° F – 104° F) |
| Storage Temperature Range | -20 °C – 60 °C (-4 ° F – 140° F) |
| System Operation | |
| Recommended Powering Solution | NXAMP4X1MK2: Up to 3 x P8 per channel |
| Optional Powering Solutions | DTD + DTDAMP4X0.7: Up to 2 x P8 per channel |
| NXAMP4X2MK2: Up to 4 x P8 per channel | |
| NXAMP4X4MK2: Up to 4 x P8 per channel |
