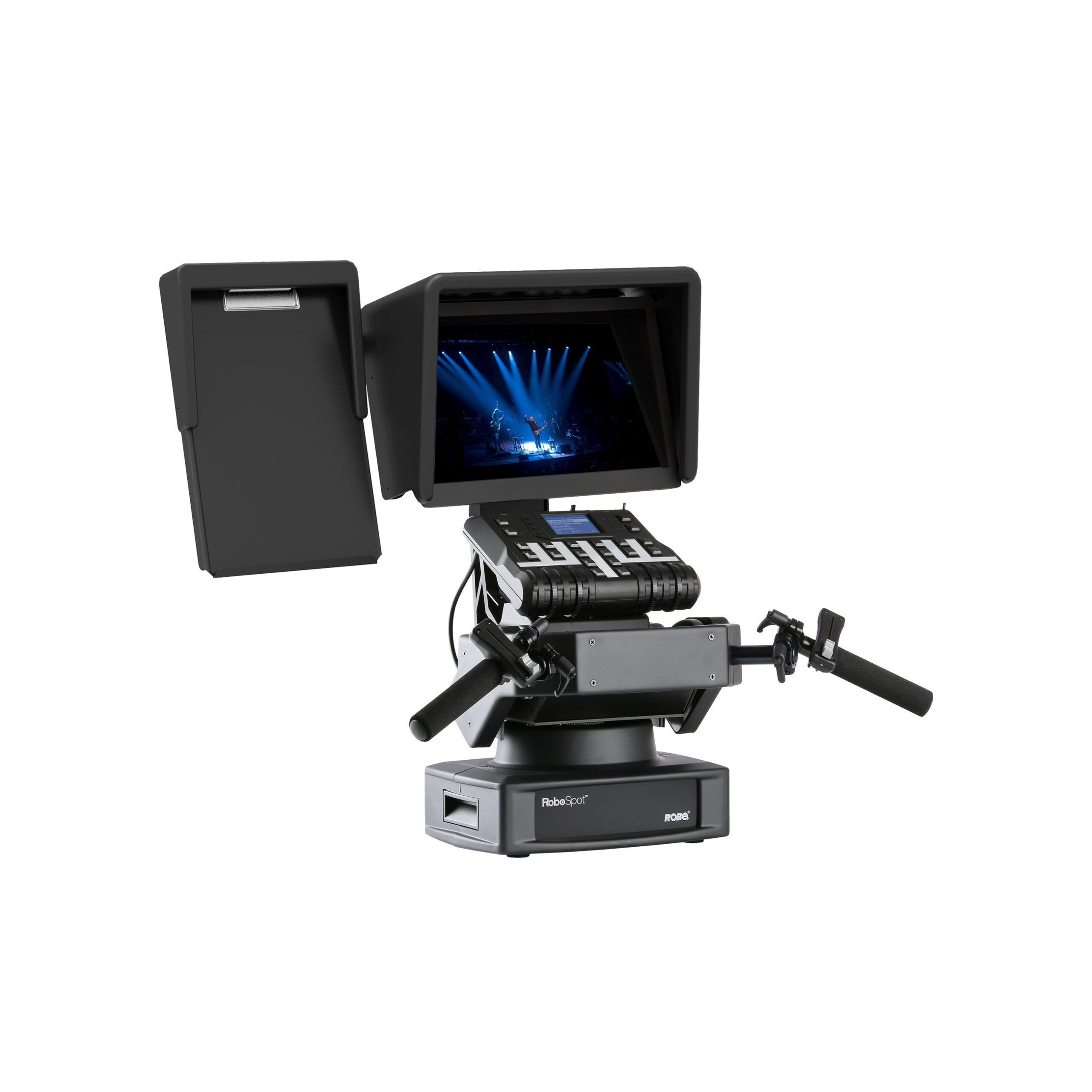

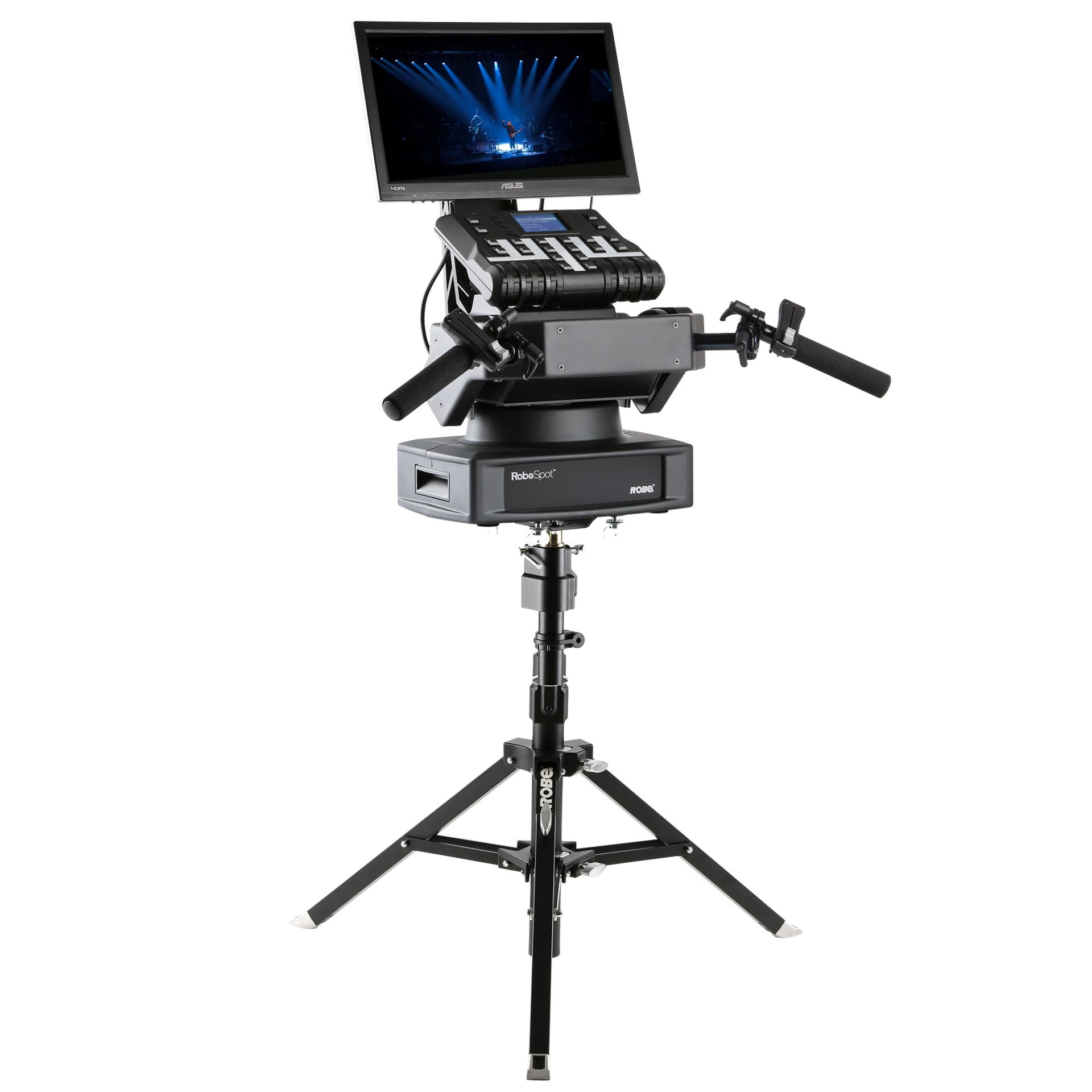

Main features
• 15.6″ monitor
• QVGA Robe touch screen with battery backup
• 4 control jog-wheels
• 10 preset buttons with a direct access of the pre-programmed features
• Activation button
• Pan & Tilt freeze buttons
• 2 faders mounted on the handles with direct control of the key features 0-100% (for example dimmer and iris), assignable to any fixture properties (focus, zoom, frost, etc)
• Manual movement control with position indication on the screen
• User setting of controllable attributes
• Saving and uploading of custom settings
• Compatible with: BMFL™ FollowSpot, BMFL™ FollowSpot LT, ESPRITE® FS, iESPRITE® LTL FS, FORTE® FS, iFORTE® FS, iFORTE® LTX FS, T1 Profile FS™, T2 Profile FS™, BMFL™ Spot, BMFL™ Blade, BMFL™ WashBeam, BMFL™ WashBeam EV, BMFL™ Wash / Wash XF, ESPRITE®, iESPRITE®, iESPRITE® LTL WB, FORTE®, FORTE® Fresnel, iFORTE®, iFORTE® LTX WB, TX1 PosiProfile™, T.5 Profile™, T1 Profile™, T2 Profile™, DL4S Profile™, DL7S Profile™, Pointe®, iPointe65®, iPointe®, MegaPointe®, LedPOINTE®, CUETE®, SPOTE™, PAINTE®, PAINTE® SPOT, iPAINTE®, iPAINTE® LTM WB, ProMotion™, iProMotion™, Viva CMY™, SilverScan™, Spiider®, iSpiider®, iSpiiderX®, Tarrantula™, LEDBeam 150™, LEDBeam 350™, iBeam 250™, iBeam 350™, SVB1™, MMX WashBeam™, MMX Blade, MMX Spot™, FOOTSIE1™, FOOTSIE1™ Slim, FOOTSIE1™ MC, FOOTSIE2™, FOOTSIE2™ Slim, FOOTSIE2™ MC.
• MDC™ – Multi Device Control (up to 12 fixtures)
Control and programming
• Display: QVGA Robe touch screen with battery backup
• Movement control: manual
Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: 15 W
• Power in connector: Neutrik powerCON TRUE1
• DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
• Ethernet port in/out: RJ45
Video inputs
• Ethernet port in: RJ45
