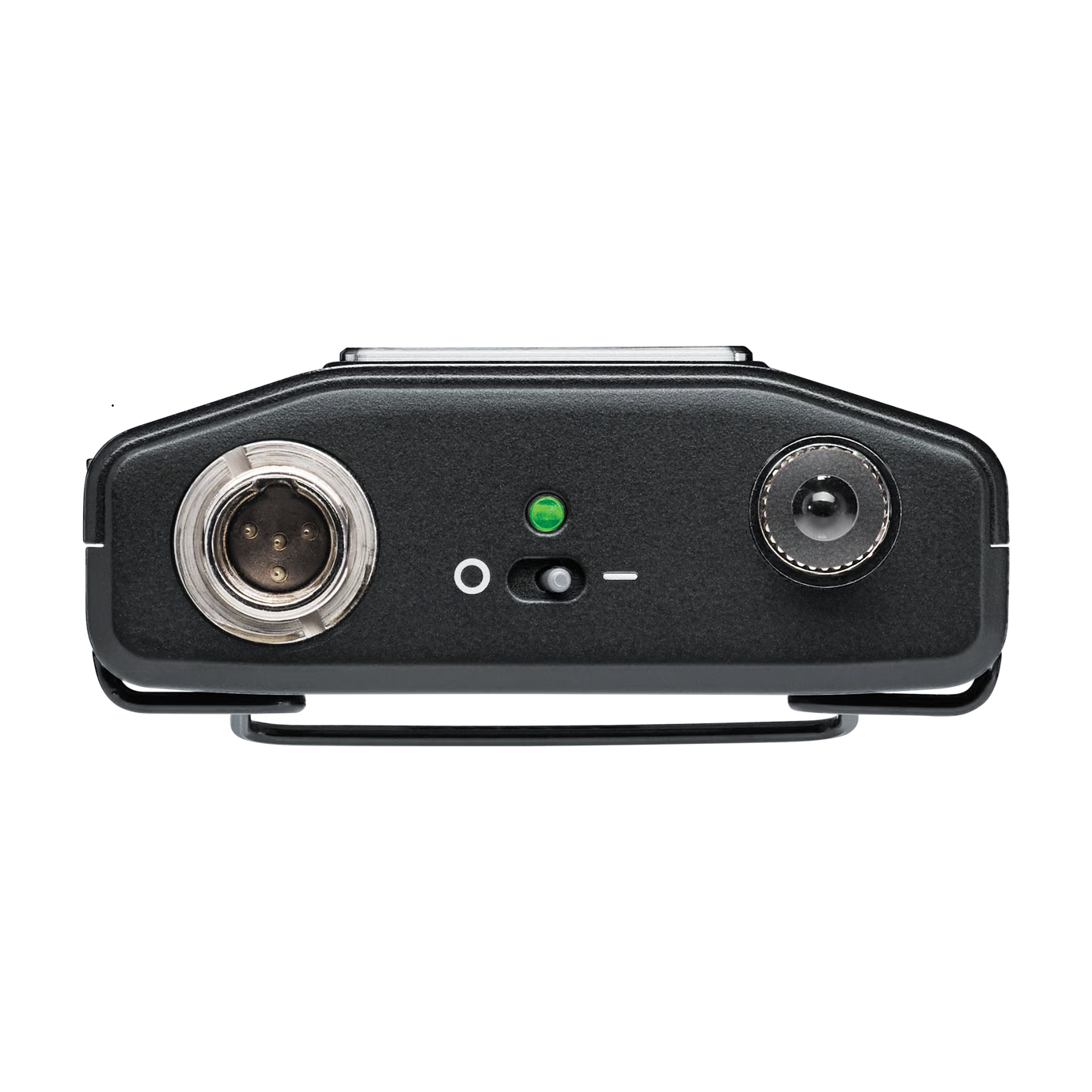

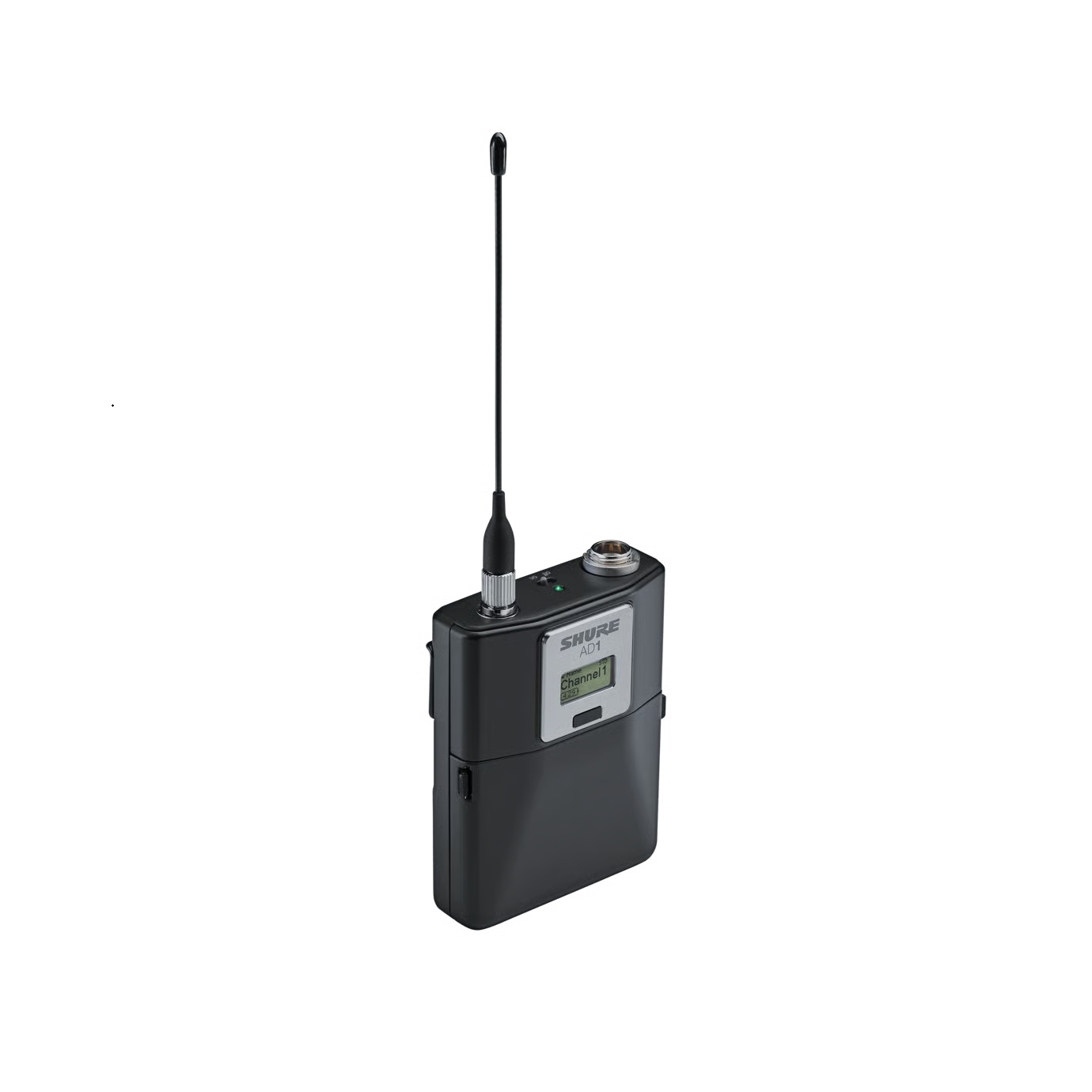

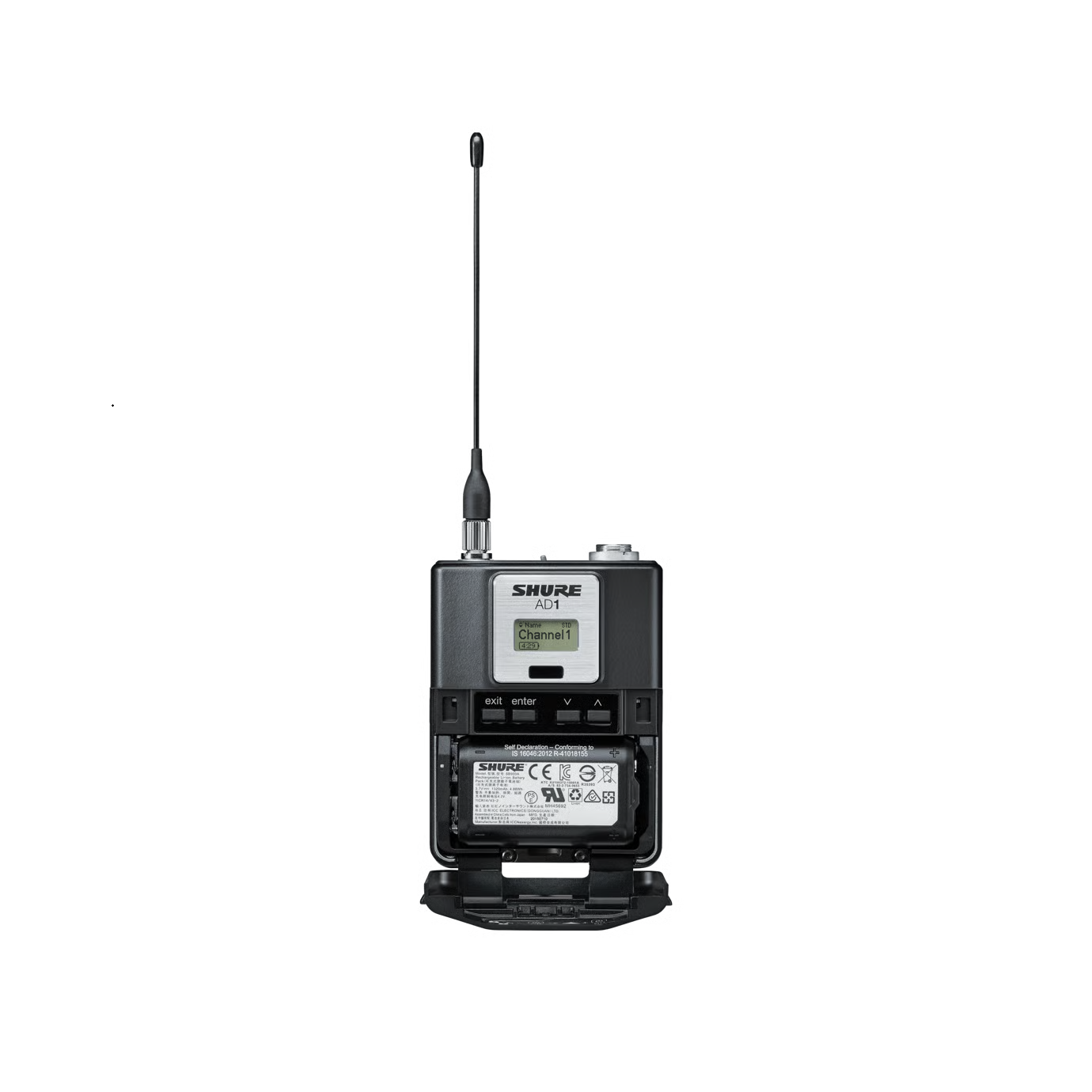

Shure AD1 Bodypack Transmitter

AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options.

  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Two connector options: TA4 and LEMO3
  • Detachable ¼-wave antenna
  • AA or SB900C lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging
分類: ,
System
Wireless Technology
Digital UHF
RF Frequency Band
470 to 616 MHz
Max Operating Range
328.1′ / 100 m (Line of Sight)
Max Transmitters per Band
47
Latency
2 to 2.9 ms (Selectable)
Encryption
AES 256
Transmitters
Included Transmitters
1x Bodypack
RF Output Power
10 / 2 / 35 mW
Antenna
Removable 1/4 Wave Flexible Whip
Input Level
Microphone / Instrument / Line
Audio I/O
1x TA4M/Mini-XLR 4-Pin Male Input
Bias/Plug-In & Phantom Power
5 V Bias/Plug-In Power
No Phantom Support
USB I/O
No
Muting
Off/On Switch
Gain Range
-12 to +21 dB (1 dB Steps)
Auto-Level/Gain
Yes
Sync Method
IR
Display
Backlit LCD
Power
Transmitter Battery Type
2x AA (Included) or
1x Rechargeable (Not Included)
Transmitter Battery Life
8 Hours (Alkaline)
Med.:
9 Hours (Lithium Rechargeable)
