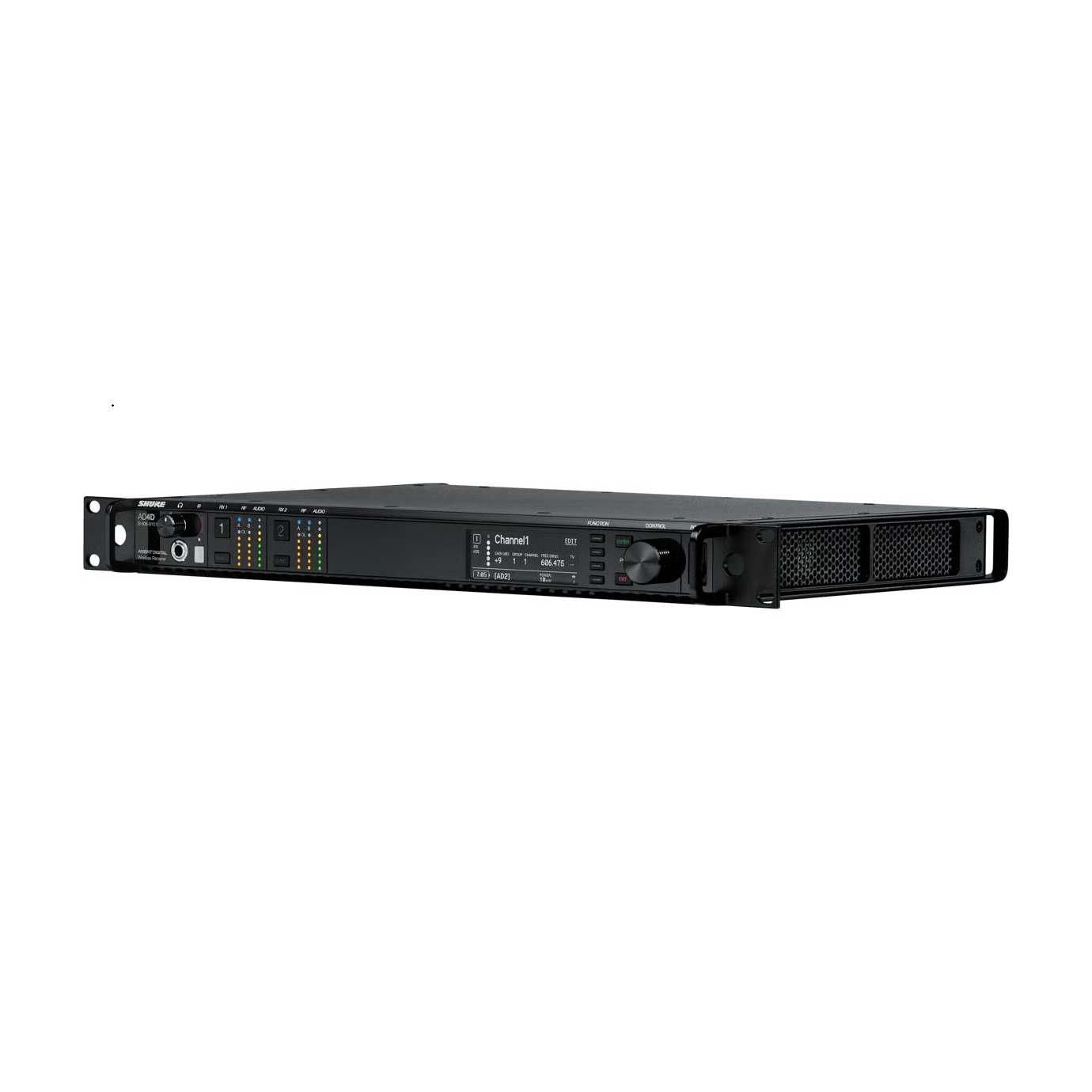

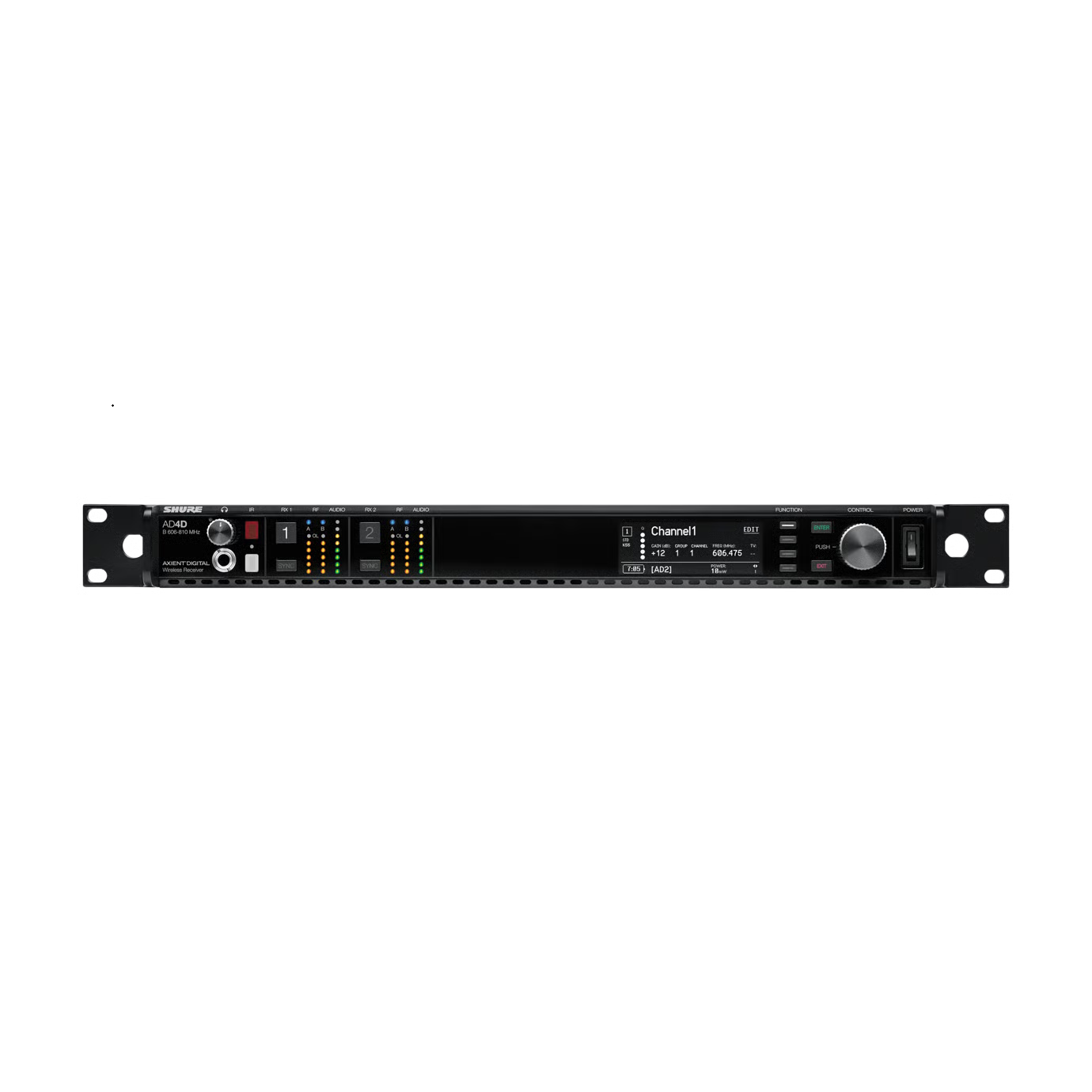

Shure AD4D Two-Channel Digital Wireless Receiver

Compatible with all AD series and ADX series transmitters.

Works with Axient® Digital Wireless Systems
Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
Available with or without accessories

Wide tuning range up to 184 MHz
True digital diversity reception per channel for drop-out resistance
Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
Quadversity mode for extended antenna coverage and improved RF signal-to-noise
Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
Configurable Ethernet switch for redundant Dante or AES67 digital output
Switchable XLR and AES3 outputs
Channel Quality meter displays RF signal-to-noise
Locking AC connectors
DC module version available to support redundant power

分類: Shure, Wireless

System

Wireless Technology	Digital UHF
Diversity	Yes, True Diversity
RF Frequency Band	A: 470 to 636 MHz
Number of RF Channel Frequencies	6640
Max Operating Range	328.1′ / 100 m
Max Transmitters per Band	120
Latency	2 to 2.9 ms (Selectable)
Encryption	AES 256
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	Yes: Android & iOS App Name: ShurePlus Functionality: Remote Control

Receiver

Receiver Type	1x Rackmount (19″)
Mounting Options	Rackmount (with Included Hardware, 1 U)
Antenna	2x Removable BNC 1/2 Wave External (Rear-Mount)
Number of Audio Channels	2

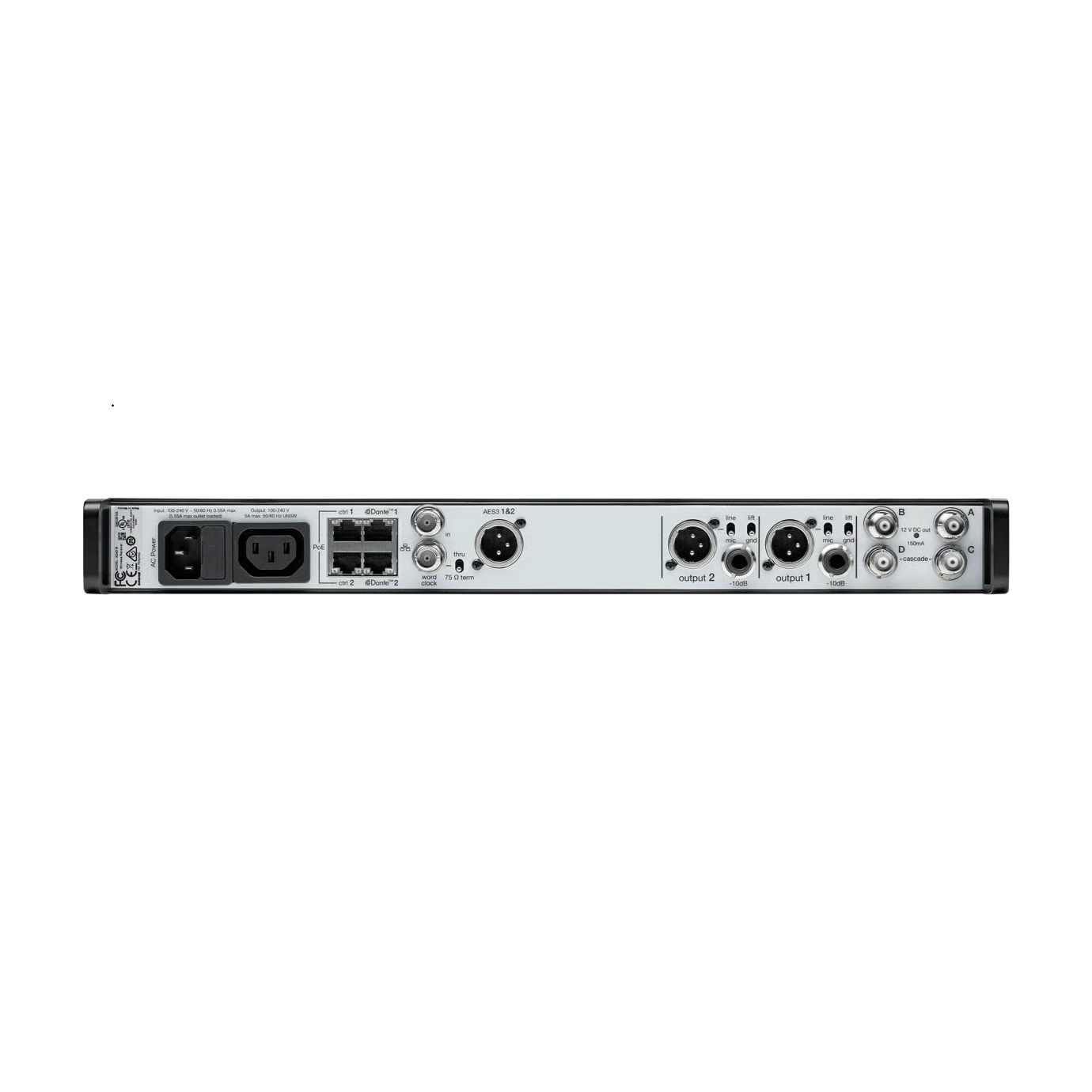

Audio I/O	2x XLR 3-Pin Balanced Output 1x XLR AES3 3-Pin Digital Output 2x 1/4″ TRS Balanced Output 1x 1/4″ TRS Headphone Output
Network I/O	4x RJ45 (Manual IP, Dante, DHCP)
Word Clock I/O	1x BNC Input 1x BNC Through
USB/Lightning Connectivity	No
Gain Range	-18 to +42 dB (1 dB Steps)
Frequency Response	20 Hz to 20 kHz ±1 dB (Dependent on Mic)
Display	Backlit LCD
Power Requirements	AC Input

Power

Included Charging Case	No

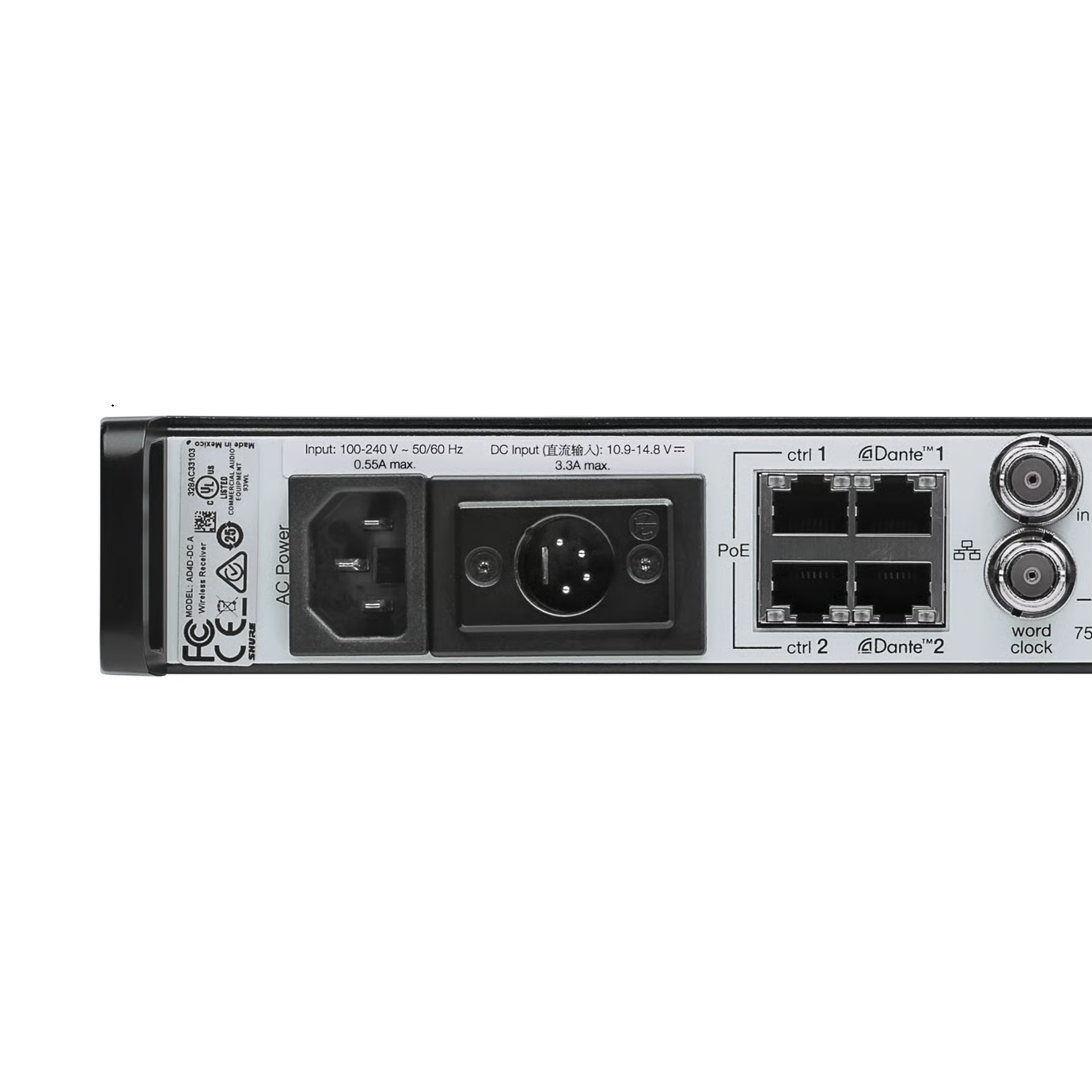

Input Power	10.9 to 14.8 VDC at 3.3 A 100 to 240 VAC, 60 / 50 Hz at 0.68 A
