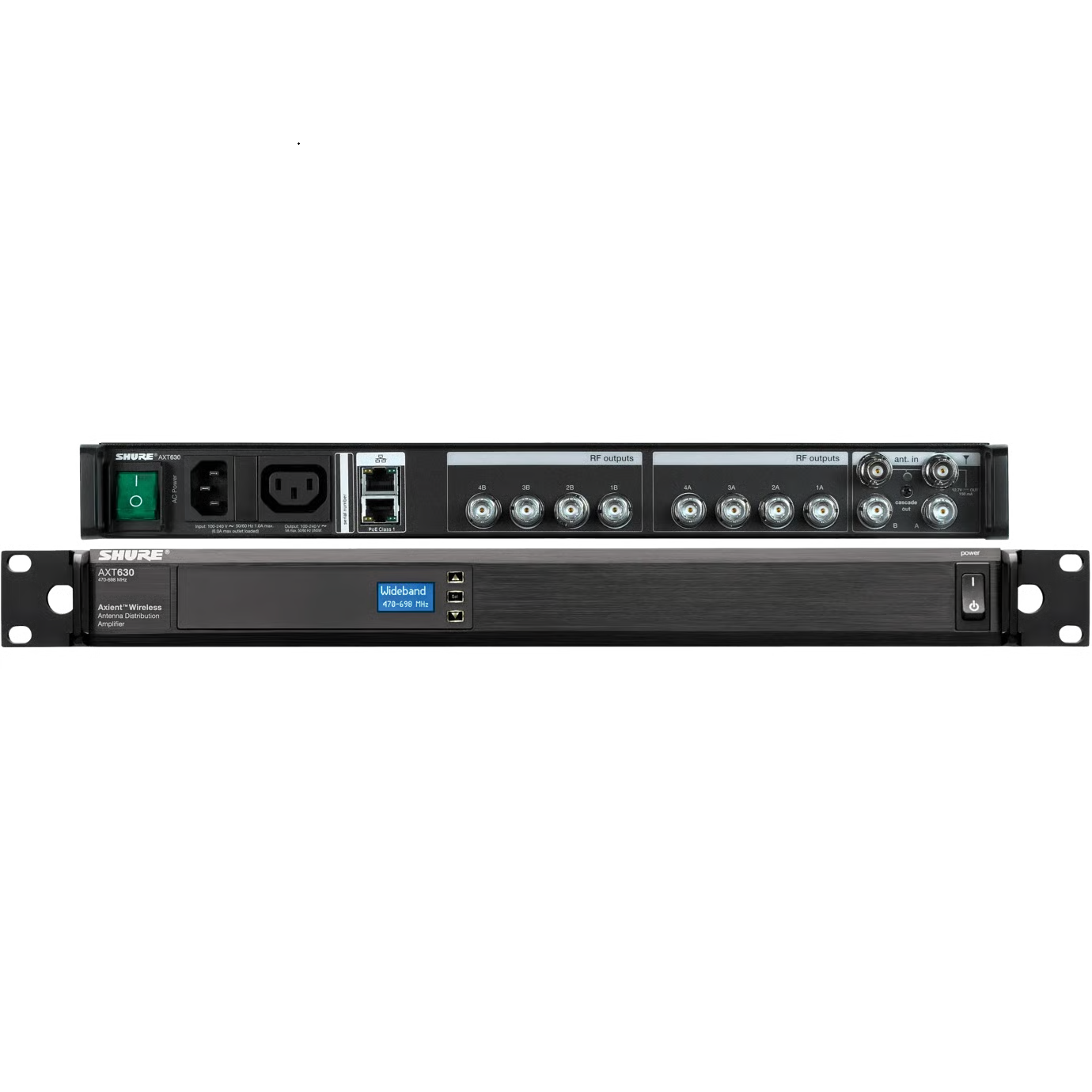

Shure AXT630 Axient Antenna Distribution System

Axient antenna distribution system delivers ultra-linear amplification and precision filtering for optimal performance. Features include wideband filtering and up to 15 dB of selectable RF attenuation for signal-to-noise optimization.

RF Optimization

  • Ultra-linear distribution amp handles high signal levels without distortion.
  • Selectable input filtering provides system-wide protection against strong out-of-band signals.
  • Filter ranges are matched to Axient transmitter bands.
  • Wideband filtering option covers multiple bands.
  • Up to 15 dB selectable RF attenuation for signal-to-noise optimization.

Connectivity

  • Front panel interface and WWB6 control provides easy setup and control of filtering, antenna power and attenuation.
  • BNC outputs: 4 antenna output pairs.
  • Unfiltered RF cascade port with selectable 3 dB make-up gain for connecting wideband devices.
  • Ethernet networking: 2 PoE-enabled Ethernet ports.
  • IEC in/out power ports enable daisy-chaining of AC power.
分類: , ,
RF Input Specs
Connectors
BNC, Unbalanced, Active
Bands
Wideband: 470 to 698 MHz
G1: 470 to 530 MHz
H4: 518 to 578 MHz
J5: 578 to 638 MHz
L3: 638 to 698 MHz
Impedance
50 Ohms
Bias Voltage
12 VDC, 150 mA (300 mA Maximum)
Output
Connector Type
8 x BNC (4 Pairs)
Configuration
Unbalanced, Active
Impedance
50 Ohms
Gain Adjustment Range
Cascade Enabled: -15 to 0 dB (in 1 dB Steps)
Cascade Disabled: -12 to +3 dB (in 1 dB Steps)
Output Intercept Point
>25 dBm, Typical
Cascade Output
Connector Type
2 x BNC
Configuration
Unbalanced, Wideband
Impedance
50 Ohms
Insertion Loss
<5 dB
Physical
Power Requirements
100 to 240 VAC, 50 to 60 Hz
Current Drain
1.0 A RMS (Referenced at 120 VAC)
Operating Temperature Range
0 to 145°F / -18 to 63°C
Storage Temperature Range
-20 to 165°F / -29 to 74°C
Dimensions
1.7 x 19.0 x 14.4″ / 44 x 483 x 366 mm
Weight
10.1 lb / 4.6 kg
