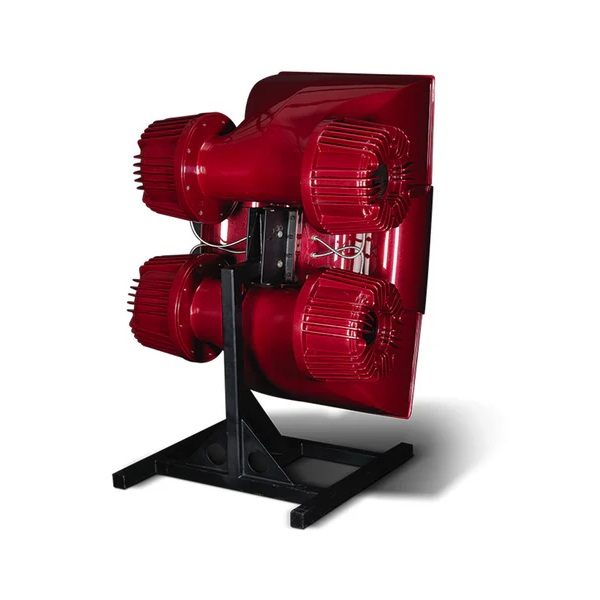

VOID ACOUSTICS AIR ARRAY loudspeaker

Three-Way Bi-Amped Sculpted Loudspeaker Array

Radically designed with captivating features and exceptionally defined output; this progressive loudspeaker array is an acclaimed piece of armoury within the industry, breaking boundaries to create a brave new standard of audio innovation.

Purposefully Designed

The Air Array is the only mid-high enclosure that provides constant SPL at all distances. The heatsink cooling system reduces power compression levels to result in an exceptionally defined and powerful output; perfect for larger style-led nightclubs.

Void Acoustics Air Array Key Features:

  • Three-way bi-amped sculpted loudspeaker array
  • Line source radiation pattern
  • Low resonance fibreglass composite construction
  • 14 discrete proprietary transducers
  • Integrated mounting system
  • Ground stack on subwoofers
分類: ,
  • Frequency Response: 90 Hz – 26 kHz ±3 dB
  • Efficiency: LF: 111 dB 1W/1m, MF: 114 dB 1W/1m, HF: 116 dB 1W/1m
  • Nominal Impedance: LF: 2 x 4 Ω, MF: 2 x 4 Ω, HF: 2 x 5.33 Ω
  • Power Handling: LF: 3600 W AES, MF: 800 W AES, HF: 320 W AES
  • Maximum Output: 146 dB cont, 152 dB peak
  • Driver Configuration: 4 x 12” LF, 4 x 3” MF compression driver, 6 x 1” HF compression driver
  • Dispersion: 90°H x 45°V
  • Connectors: 2 x 8-pole speakON NL8
  • Weight: 144.8 kg (319.2 lbs) including stand
  • Enclosure: Fibreglass composite
  • Mounting: Stack mounted or proprietary suspension system
  • Finish: Smooth cellulose

相關商品

Void Acoustics

貨號：

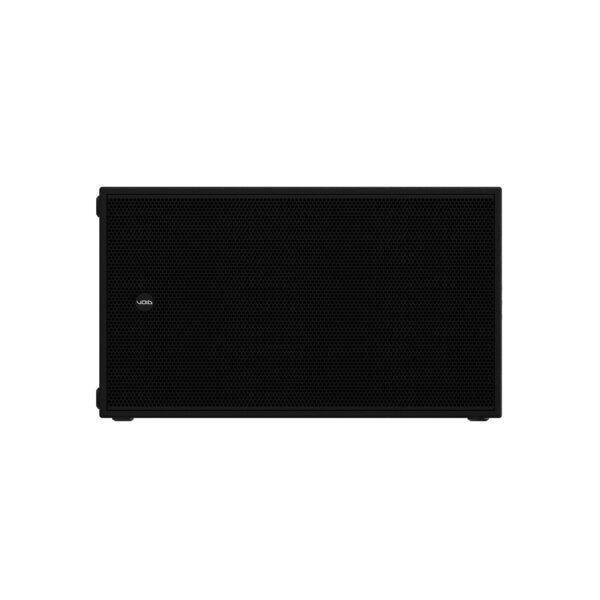

VOID ACOUSTICS VENU 218 – V2 Subwoofer
