- Networking: 100Mbit Ethernet port for PC control (QuickShow/BEYOND) or ArtNet/DMX from consoles.
- Storage: SDXC card reader for stand-alone operation (supports up to 1TB).
- Control/Display: Full-color OLED display with a rotary encoder for menu navigation, safety settings, and geometric correction.
- Signal Output: 12-bit X and Y axes, 12-bit color lines (up to 6 colors). Supports scan speeds up to 120K.

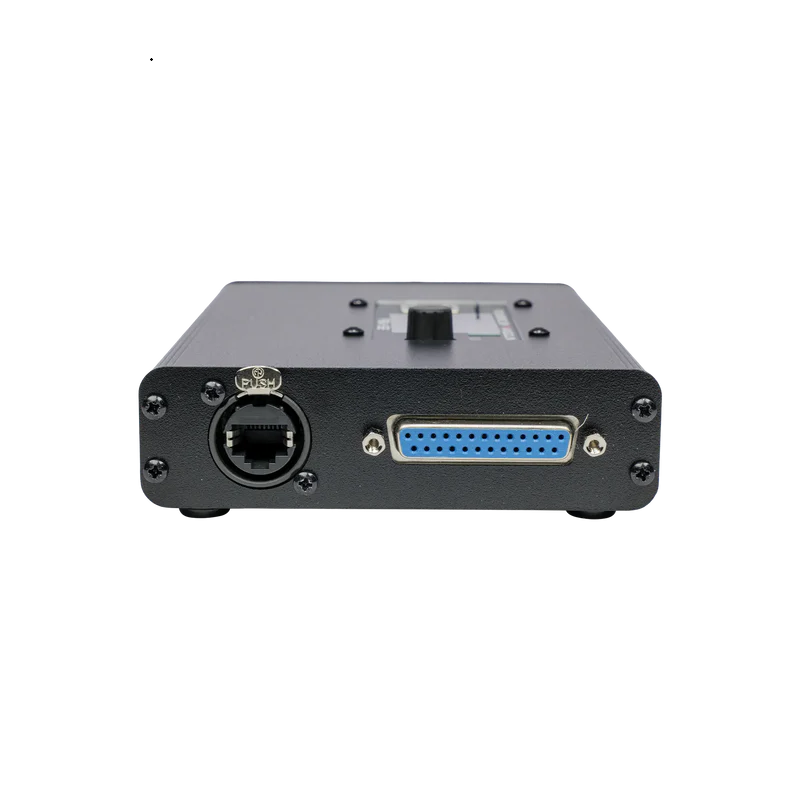

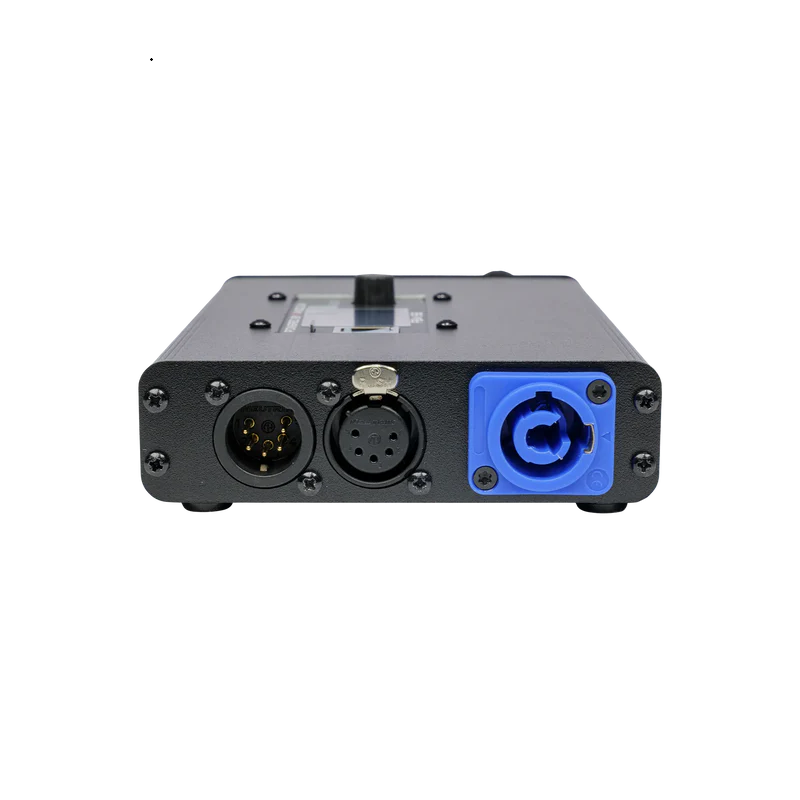

- Physical Connections: 5-pin DMX IN/OUT, ILDA OUT, Ethernet (RJ45).
- Compatibility: Works with Pangolin QuickShow and BEYOND software.

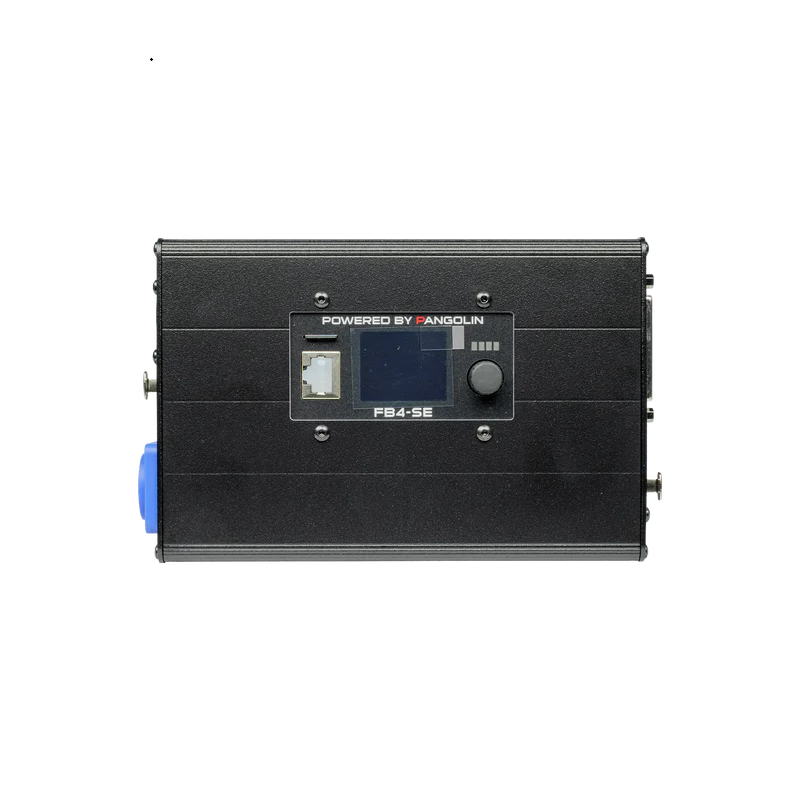

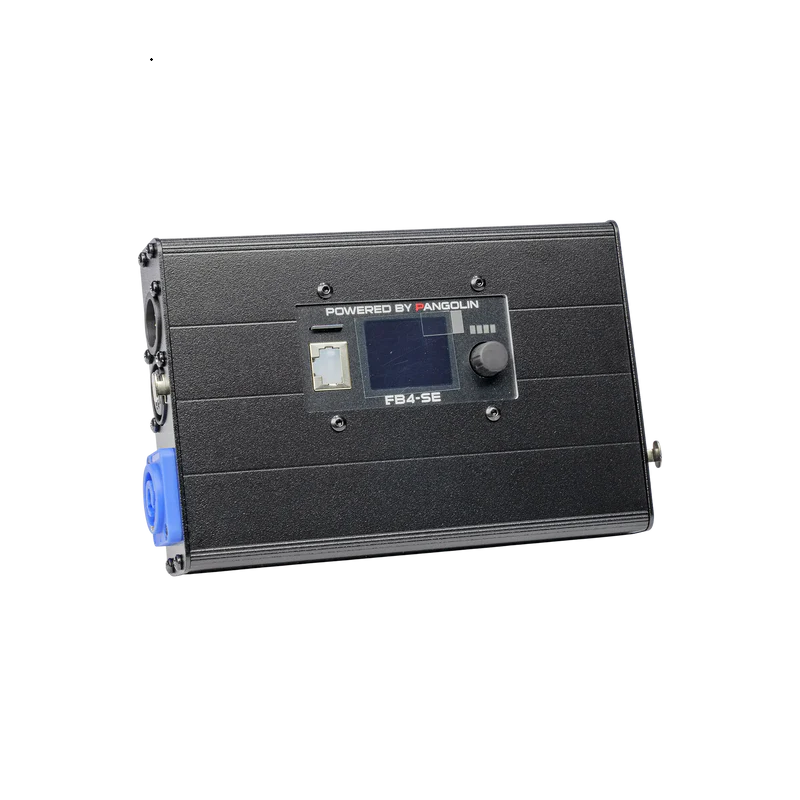

PANGOLIN FB4 External System
FB4 External is designed for users who want the capabilities of our FB4 control hardware, without having to integrate the hardware directly inside of their laser system.

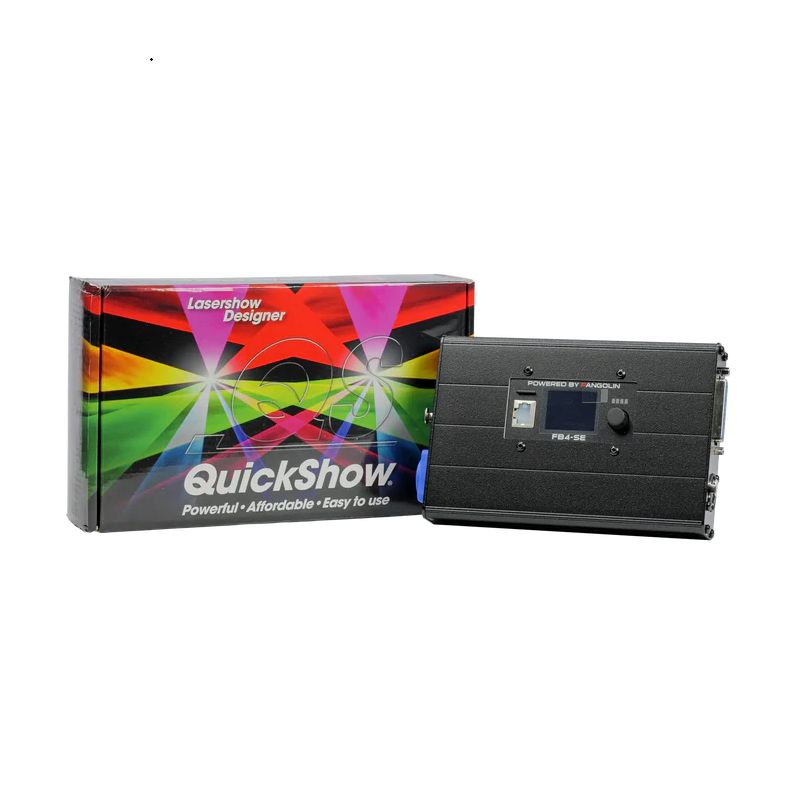

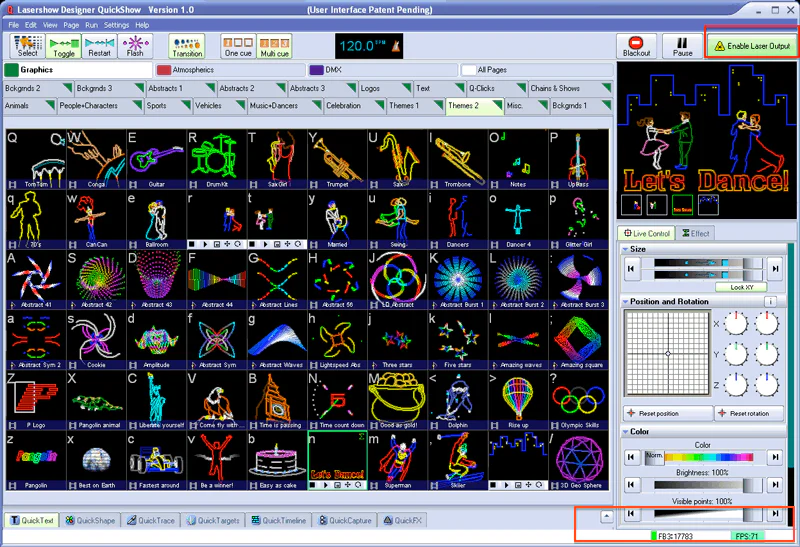

FB4 External features our FB4 DMX control hardware inside of a custom housing, giving you complete control from a PC, lighting console (using DMX or ArtNET), or in Auto Mode. FB4 External includes our award-winning laser control software QuickShow completely free, providing you with over 2,000 pre-programmed laser cues, and all the tools you need to create your own custom laser content.
