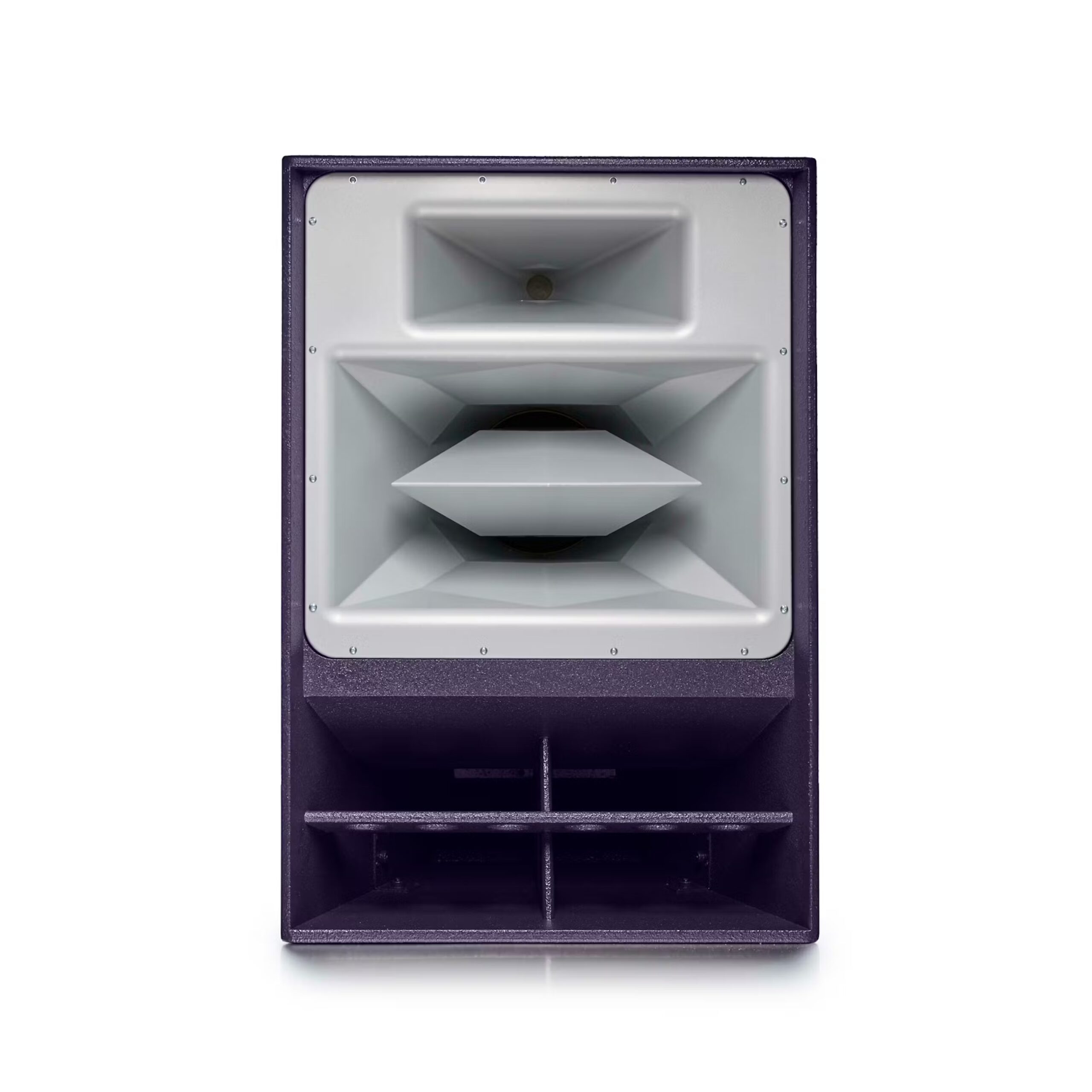

Evolution 6E is a high intensity arrayable point source loudspeaker, combining horn-loaded 15” mid-bass, 10” Funktion-One signature mid-range and a 1.4” compression driver, offering class leading efficiency and performance.
Evo 6E has 50° nominal horizontal dispersion and physically arrays at 40°; two wide giving smooth coverage over 90°.
Perfect for all applications and genres of music, Evolution 6E systems offer state of the art Funktion-One sound quality. We recommend their use with F124, F121, F221 or BR221 bass enclosures.
Fully horn loaded for high efficiency
· Three-way active (triamp)
· Funktion-One designed drivers
· Low weight Neodymium magnets throughout
· Fitted with M10 flypoints
· Optional Wheelboard
· Optional foam backed steel grille
· Evo 6EH and Evo 6SH mid-high versions also available
· Evo 6EL available for extra mid bass headroom
Frequency Response: 70Hz-18kHz
Weight: 57kg (126lbs) without wheelboard
Nominal Dispersion: 50° Horizontal x 25° Vertical
Connectors: 2 x Neutrik NL8
Driver: 15″ (LF), 10” (MF), 1.4” (HF)
Crossover: 85Hz – 220Hz, 220Hz – 4kHz, 4kHz – Up
Frequencies Sensitivity (at 1m)*: 103dB at 2.8V, 112dB at 4.9V, 114dB at 5.6V
Power (AES): 400W, 250W, 75W
Nominal Impedance: 8Ω, 24Ω, 32Ω
