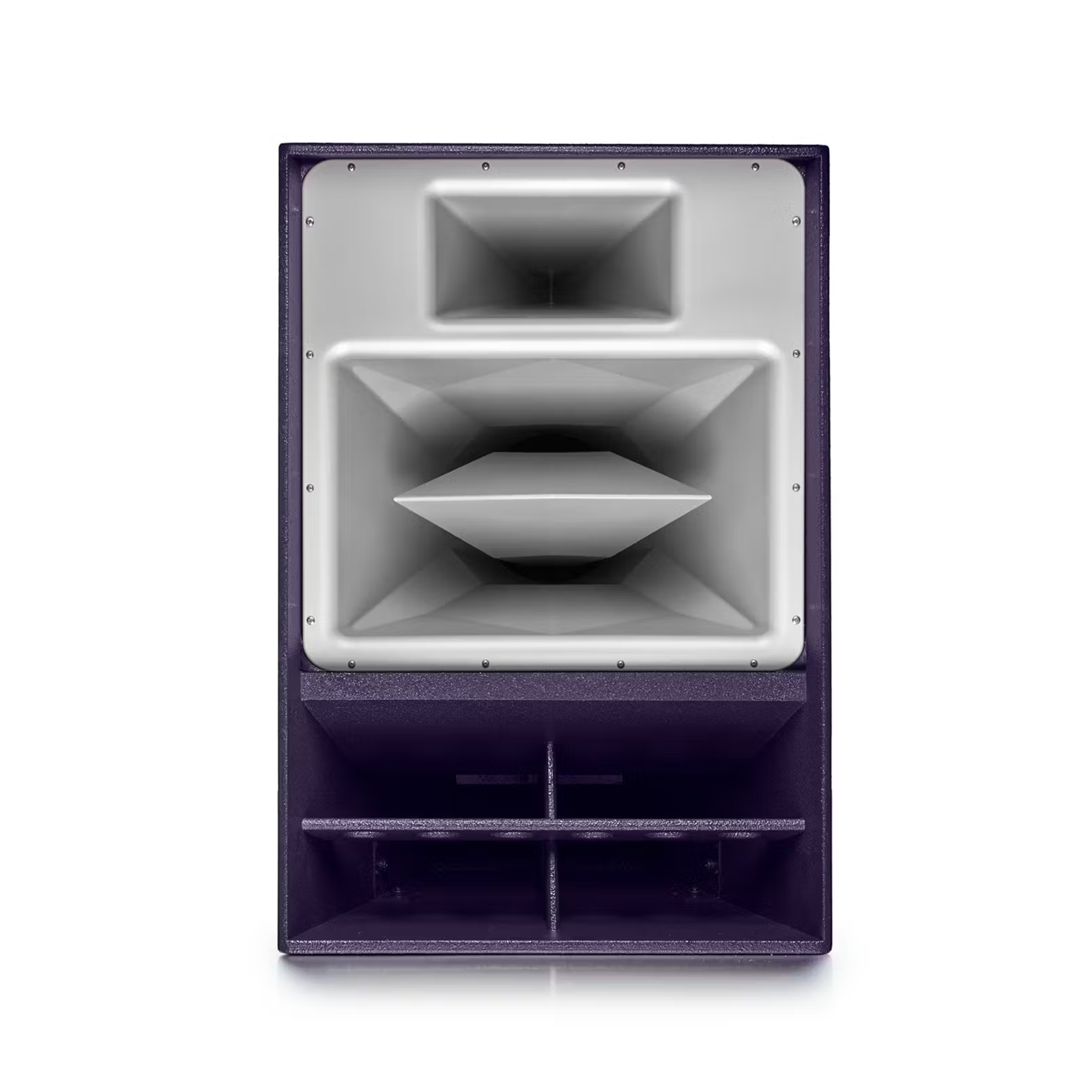

Evo 7E is a very high intensity arrayable point source loudspeaker. Evo 7E is fully horn-loaded with 15” mid-bass, 10” Funktion-One signature mid-range and a 1.4” compression driver.
With 40° nominal horizontal dispersion and physically arrayable at 30°, three wide gives smooth coverage to 100° and is suitable for crowd sizes of around 2,500 people. Perfect for all applications and genres of music, Evo 7E systems offer state-of-the-art Funktion One sound quality.
•Fully horn loaded for high efficiency
•Three-way active (triamp)
•Funktion One designed drivers
•Low weight Neodymium magnets throughout
•Fitted with M10 flypoints
•Optional Wheelboard
•Optional foam-backed steel grille
•Evo 7EH and Evo 7SH mid-high versions available
•Evo 7EL available for extra mid bass headroom
•Touring version (Evo 7T) with integrated flying hardware
Frequency Response: 70Hz-18kHz
Weight: 61kg (134lbs)
Nominal Dispersion: 40° Horizontal x 20° Vertical
Connectors: 2 x Neutrik NL8
Driver: 15″ (LF), 10” (MF), 1.4” (HF)
Crossover: 85Hz – 220Hz, 220Hz – 4kHz, 4kHz – Up
Frequencies Sensitivity (at 1m)*: 103dB at 2.8V, 112dB at 4.9V, 114dB at 5.6V
Power (AES): 400W, 250W, 75W
Nominal Impedance: 8Ω, 24Ω, 32Ω
