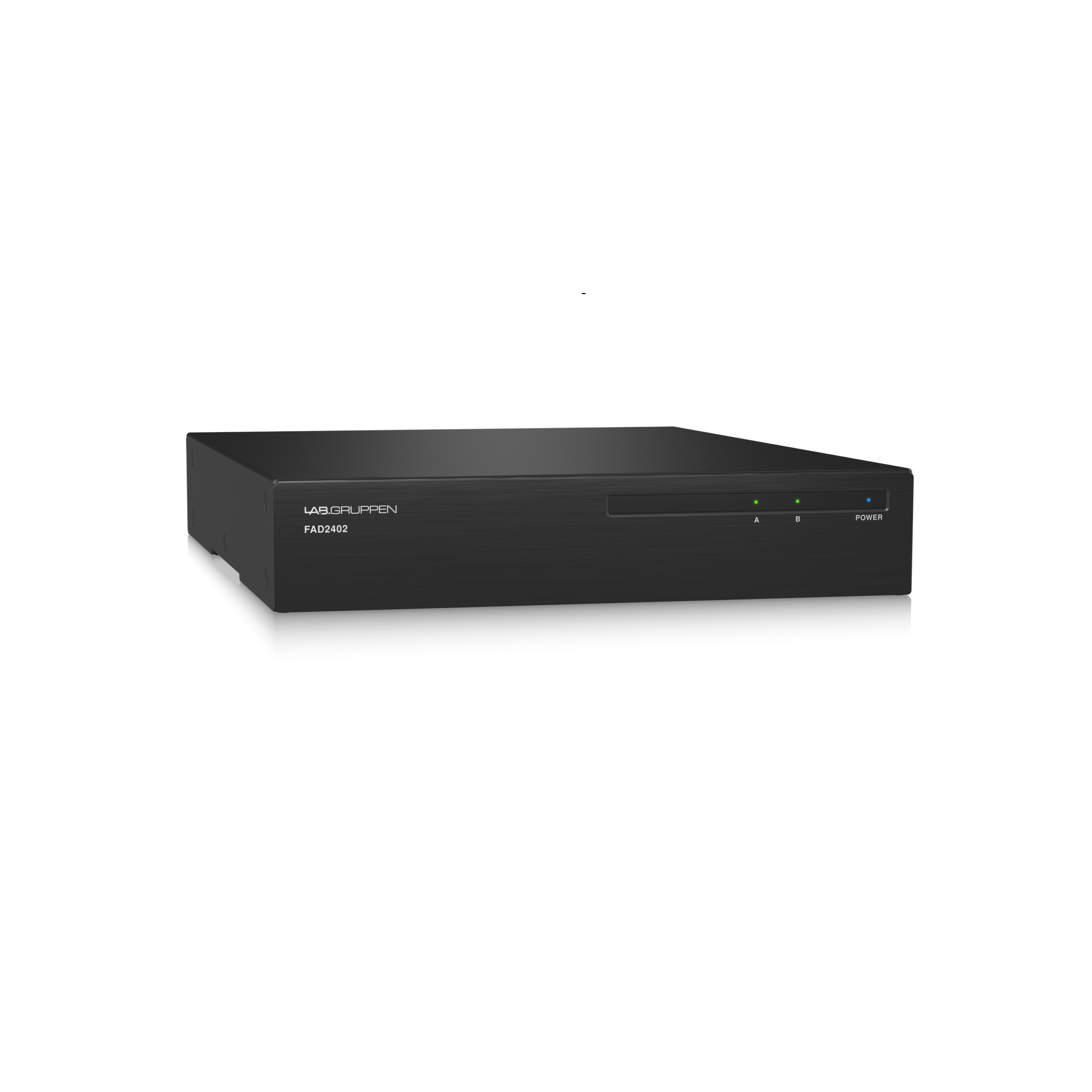

LAB GRUPPEN FAD2402 Dante Commercial mixer amplifier

  • 2 x 240 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
  • Direct drive, constant power technology for superior audio performance and reliability
  • Dante audio connectivity to enable creating large audio systems over a local network
  • Energy Star certified design conserves energy and drastically reduces operational cost
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Tamperproof gain controls for each channel on rear panel location
  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier output connectors
  • Convection-cooled, fan-less amplifier technology for low noise
  • Comprehensive fail safe circuit protection ensures continued operation

分類: , ,
Maximum Output Power
4 or 8 Ω per channel 240 W
Number of Ouput Channels
Number 2
Mininum Load Impedance
4 Ω mode 4 Ω
8 Ω mode 8 Ω
70 V output mode 41 Ω
100 V output mode 82 Ω
Controls
Front N/A
Rear Gain control, load config (4 Ω / 8 Ω / 70 V / 100 V), high-pass filter switch, reset button)
Indicators

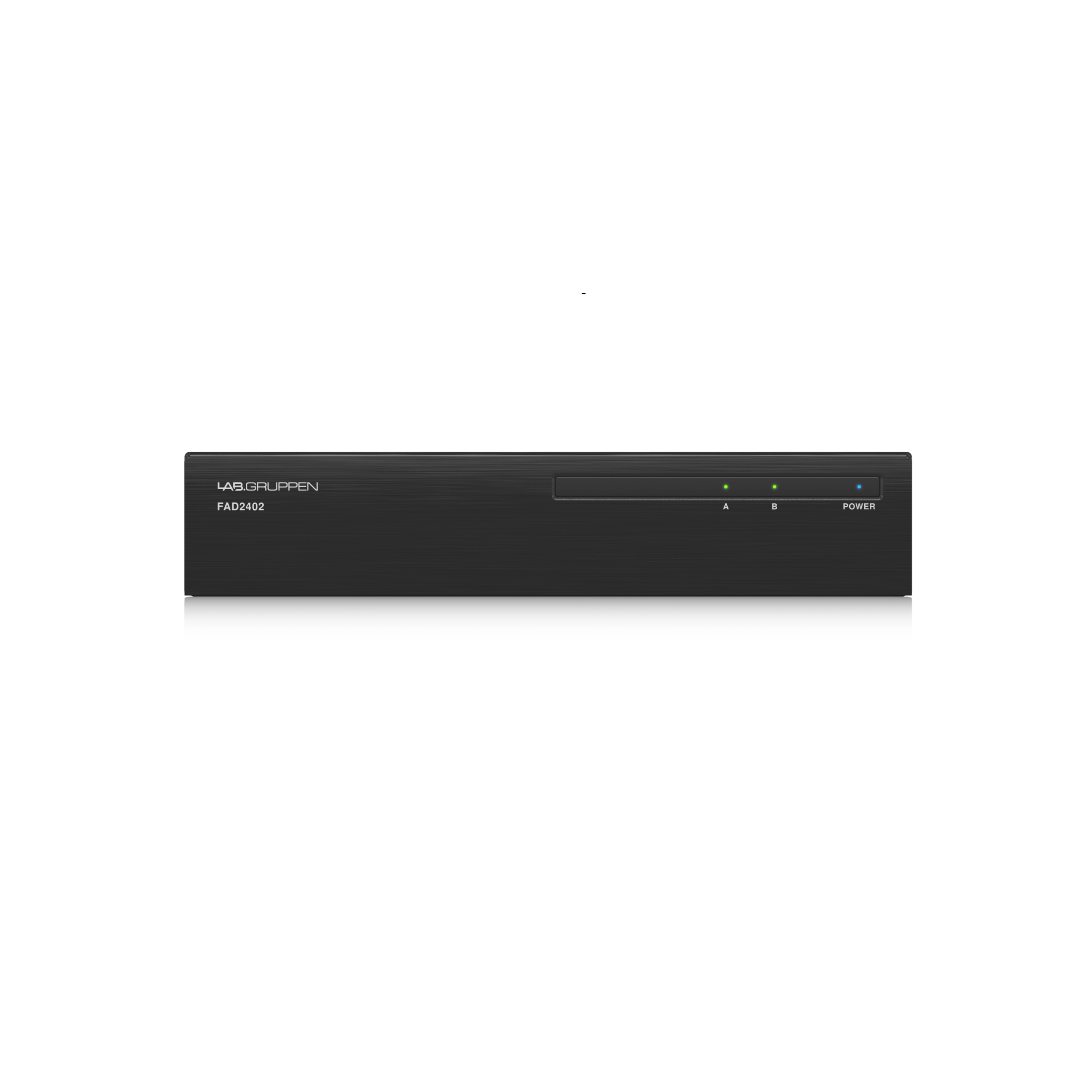

Front
Power On (blue), standby (yellow)
Limit (red LED), per channel -1.5 dBFS (digital)
Signal (green LED), per channel > -63 dBFS (digital)
Fault (red LED) Overheat, DC fault, over current etc

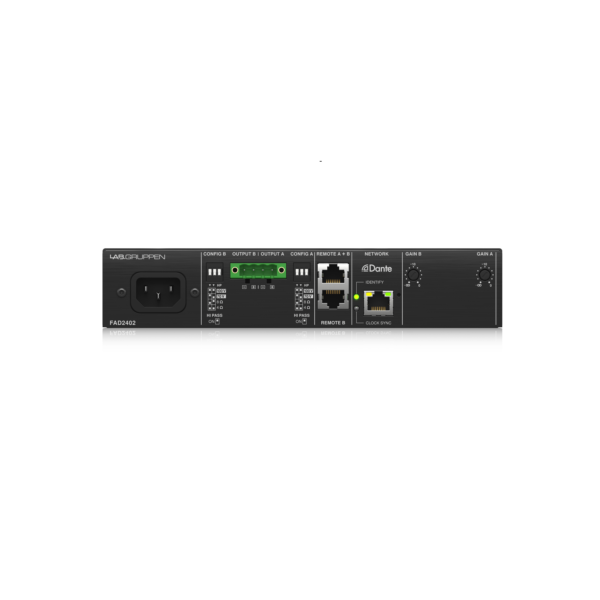

Rear
Dante Indentify (yellow), clock sync (white)
System
Input transmission type Dante, 2 channels Rx
Input connectivity 1 x RJ45 Ethernet connector, 1-port 100 Mbps to Dante interface
Input sensitivty -2 dBFS (digital)
Maximum input level 0 dBFS (digital)
Outputs connectivity 1 x 4-pin 5.08 mm Euroblock connector
Output circuit type Class D
Remote connector 2 x RJ45 Ethernet connector
Performance
Distortion,1/8 rated power <0.1%
Frequency response 20 Hz to 20 kHz, +0/-1.5 dB
Crosstalk >72 dB
Signal-to-noise >101 dBA
High-pass filter 80 Hz HPF
Circuit Protection
Cooling Convection-cooled, fanless
Amplifier protection Thermal protection, over current protection, DC protection, high frequency protection
Load protection Controlled start and shutdown behaviour, DC-fault protection
Power Supply, Voltage (Fuse)
Main voltage 100-240 V~, 50/60 Hz with active power factor correction
Power consumption 1/8th rated power @ 4 Ω 120 W
Mains connector Standard IEC connector
