General
| Number of amplifier channels | 2 |
| Peak total output all channels driven | 3000 W |
| Peak output voltage per channel | 115 V |
| Peak output current per channel | 32 A |
| Bridge mode | No |
| Output circuit type | Class-D |
Amplifier Outputs
| Max Output Power | |
| All channels driven | |
| 2 Ω per channel, stereo | 1000 W |
| 4 Ω per channel, stereo | 1500 W |
| 8 Ω per channel, stereo | 800 W |
Audio Performance
| THD+N 20 Hz – 20 kHz @ 1 W | < 0.1% |
| THD+N @ 1kHz, 1 dB below clip | < 0.1% |
| Signal-to-noise | >90 dB |
| Channel separation (Crosstalk) @ 1 kHz | >75 dB |
| Frequency response | 10 Hz to 20 kHz, +0.5/ -1 dB |
| Input impedance | 10 kΩ unbalanced, 20 kΩ balanced |
| Distortion,1/8 rated power | < 0.1% |
System

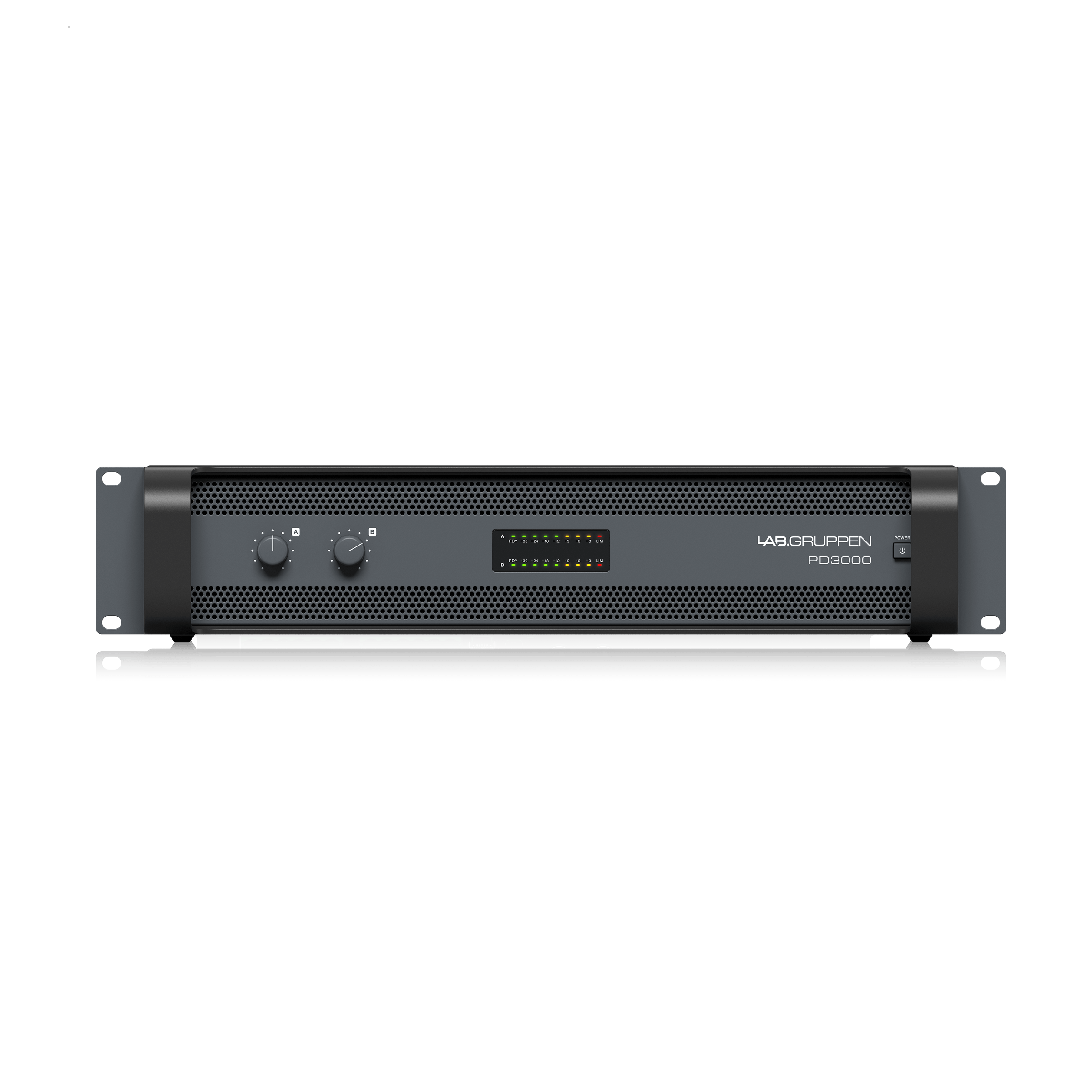

| Controls | |
| Front | Power switch
Gain controls (channels A and B) |
| Rear | Stereo / mono,
switchable Xover: LF / full range / HF, switchable |
| Crossover frequency | 100 Hz |
| Indicators | |
| Power | RDY LEDs lit green |
| Limit, per channel | LIM LEDs lit red |
| Signal, per channel | -30 dB, -24 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, LEDs lit green/orange |
| Thermal Warning, per channel | RDY LED blink orange |
| Thermal Warning 90%, PSU | Both RDY LEDs blink orange |
| Thermal fault, per channel | RDY LED blink red |
| Thermal fault 100%, PSU | Both RDY LEDs blink red |
| Fault, channel | RDY LED lit constantly red |
| Fault, device | Both RDY LEDs constantly lit red |

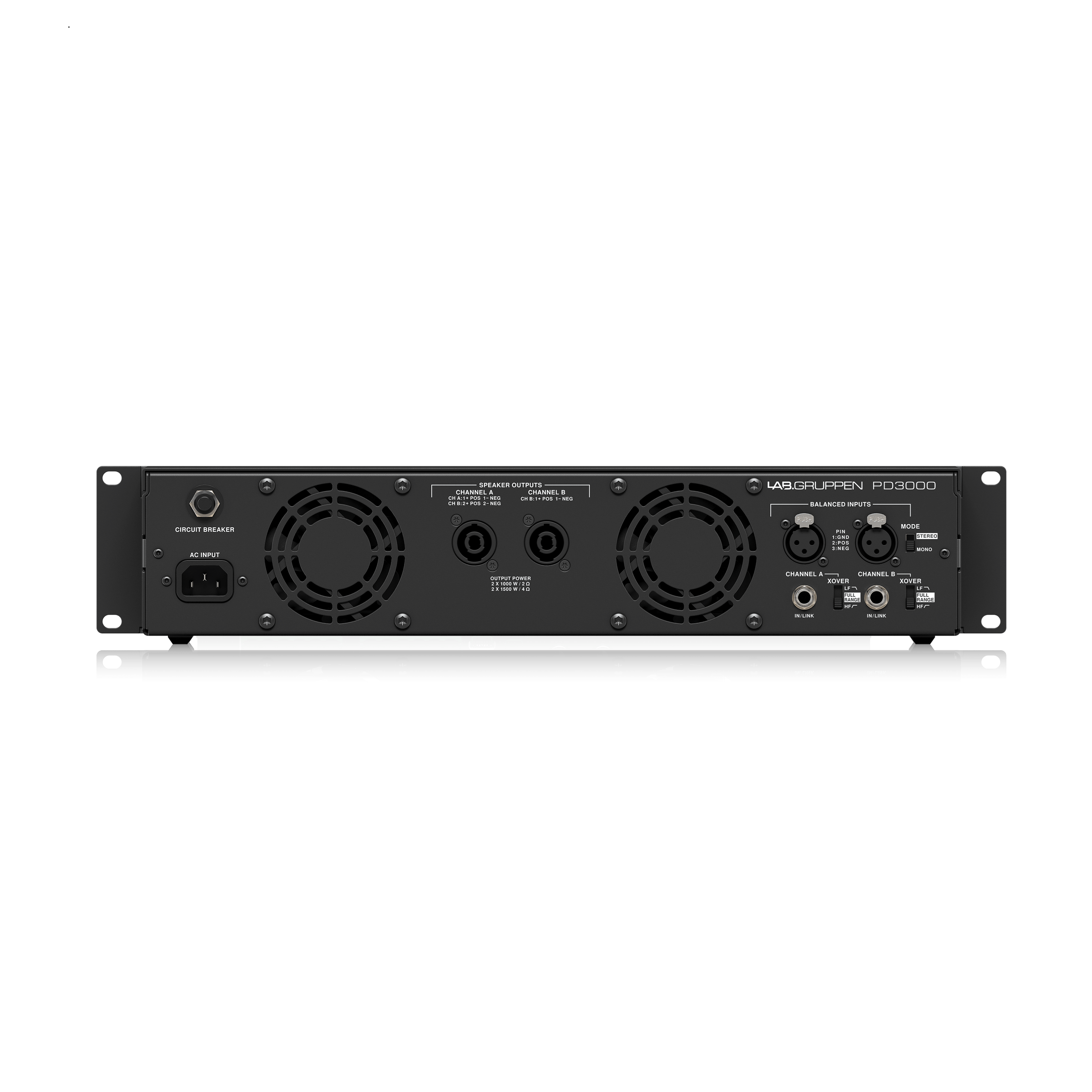

| Connectors | |
| Inputs / link | 2 x XLR
2 x 1/4″ TRS |
| Outputs | Industry-standard twist-lock speaker connector (2 x NLT4) |
| Mains connector | Locking IEC appliance inlet, C14 |
| Protection Features | |
| Cooling | Two fans front-to-rear air flow, temperature controller speed |
| Amplifier protection | Thermal and DC protection, Rail sensing and peak current limiting. |
| Load protection | Controlled start and shutdown,
behavior, DC-fault protection, Short-circuit protection |
Power Supply
| Voltage | Separate 230 V and 115 V versions available. Not selectable on the product. |
| USA / Canada / Japan | 100-120 V, 50/60 Hz |
| UK / Australia / Europé / Korea / China | 220-240 V, 50/60 Hz |
| Power consumption @ 4 ohms | 1050 W |
Dimensions / Weight
| Dimensions (H x W x D) | 93 x 483 x 326 mm (3.7 x 19 x 12.8″) |
| Weight | 6.5 kg (14.3 lbs |
