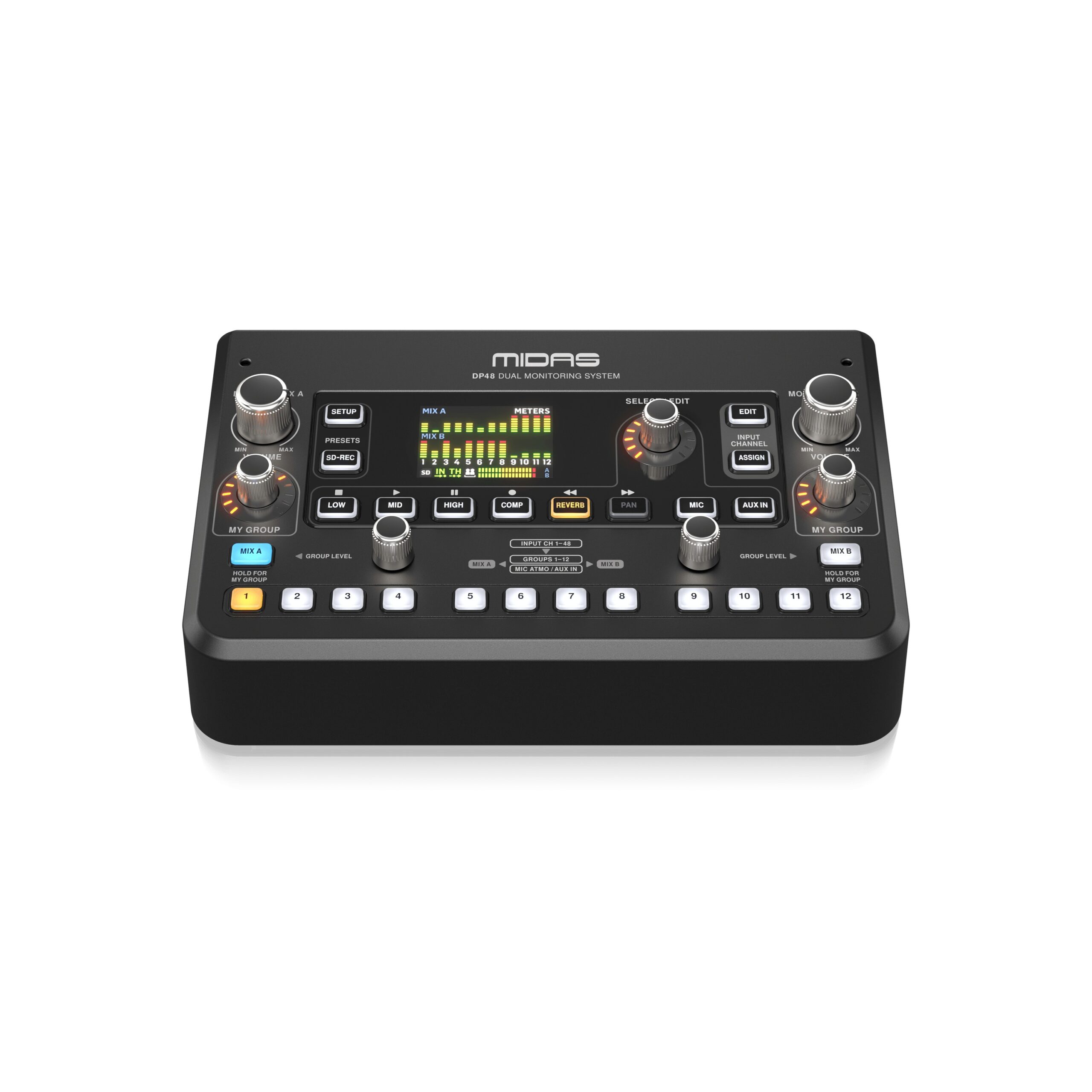

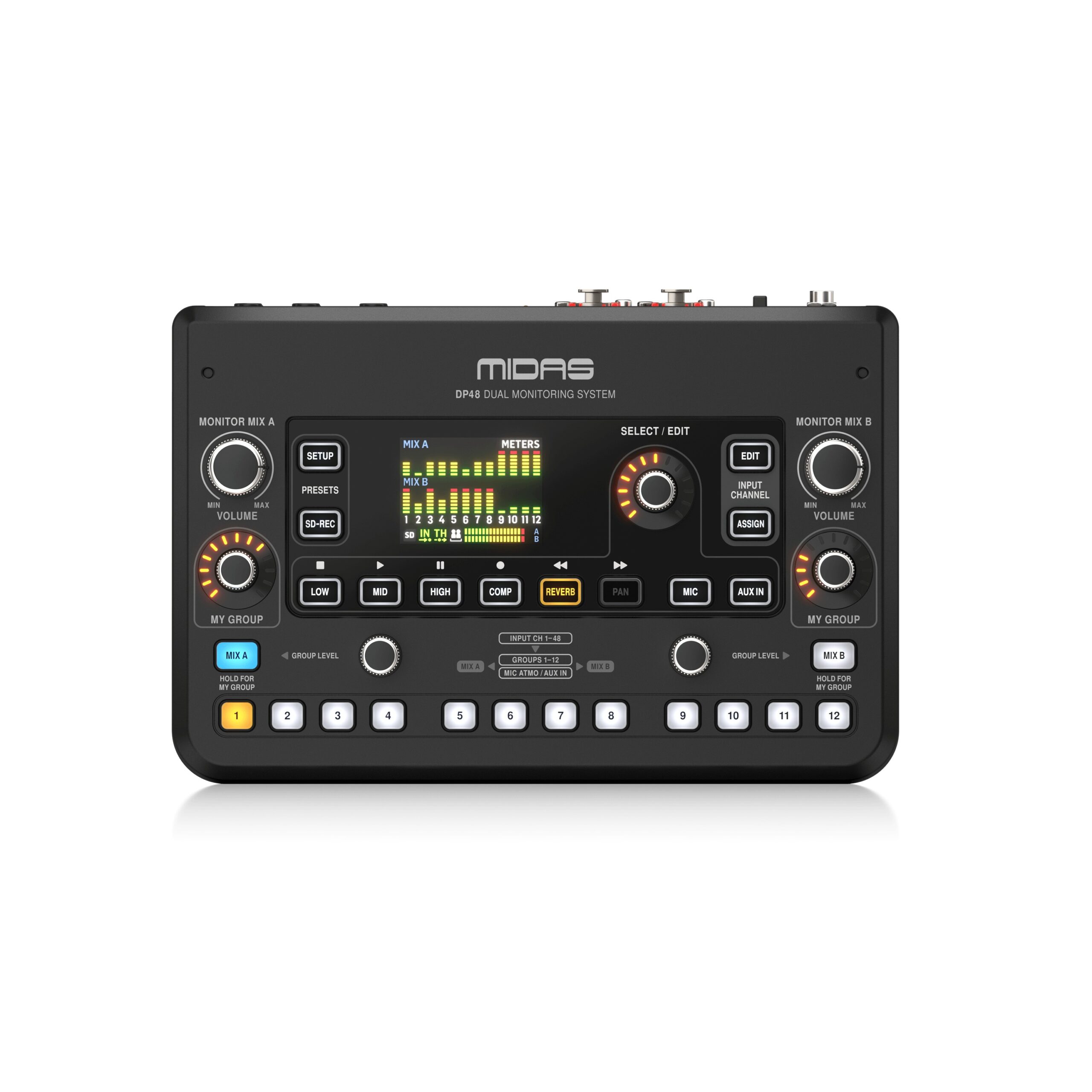

MIDAS DP48 Monitor Mixer

Dual 48-Channel Personal Monitor Mixer with SD Card Recorder, Stereo Ambience Microphone and Remote Powering

48-channel dual personal monitor mixer with 12-stereo groups
Dual mix function for running two independent mixes from a single unit
Intuitive interface and high-contrast TFT display screen for easy navigation
Onboard signal processing, including EQ, compression, and studio-quality reverb
Inject room ambiance into your IEM mix with the DP48’s built-in stereo microphone
Connect with any AES50-equipped digital console, monitor hub, or I/O box via Cat 5e cable
Remote power over ethernet or with a separate DC power supply
Powerful headphone output for reliable stage monitoring in loud environments
Integrated SD recorder for capturing rehearsals and performances
Match console and monitor mixer track labels and color automatically over AES50
Attach to a microphone stand for easy access with Midas DP48MB mounting bracket (optional)

分類: Midas, Midas, Midas

描述

Tech Specs

Type:Dual Monitor Mixer
Compatibility:Midas AES50 Hubs

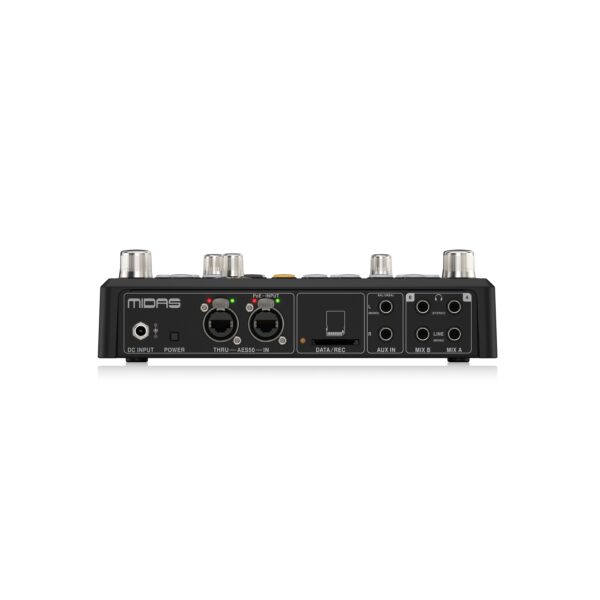

Number of Ports:1 x In, 1 x Thru
Connection Type:Locking Ethernet (AES50)
Input Channels:48 Channels, 12 Groups
Analog Inputs:2 x 1/4″ (L/R aux in)
Analog Outputs:2 x 1/4″ (A mix, B mix)
Headphones:2 x 1/4″ (A mix, B mix)
Data I/O:SD/SDHC Card Slot
Form Factor:Stand Mount
Power Source:Power over Ethernet / 24V DC power supply
Height:2.72″
Width:9.53″
Depth:6.46″
Weight:2.9 lbs.
