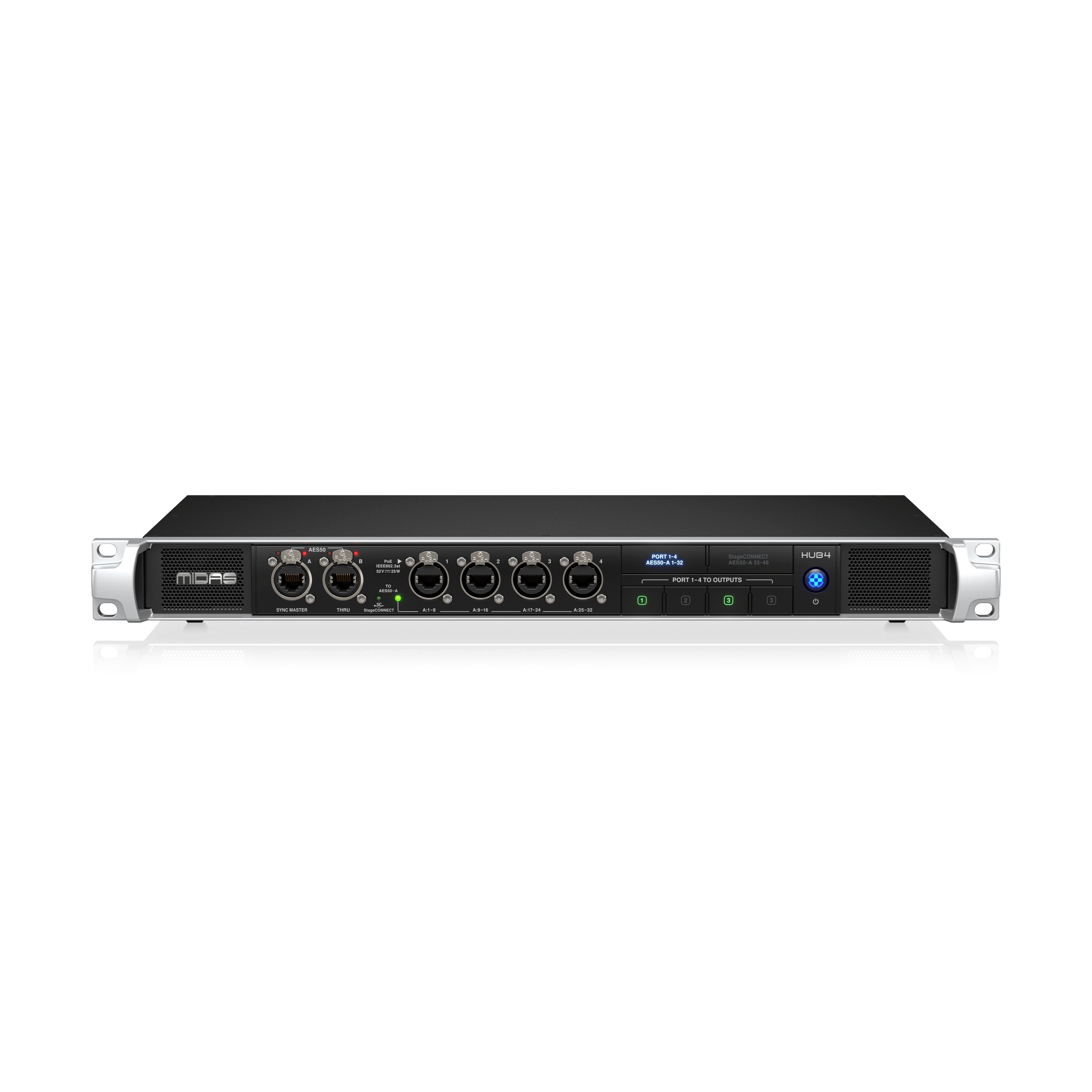

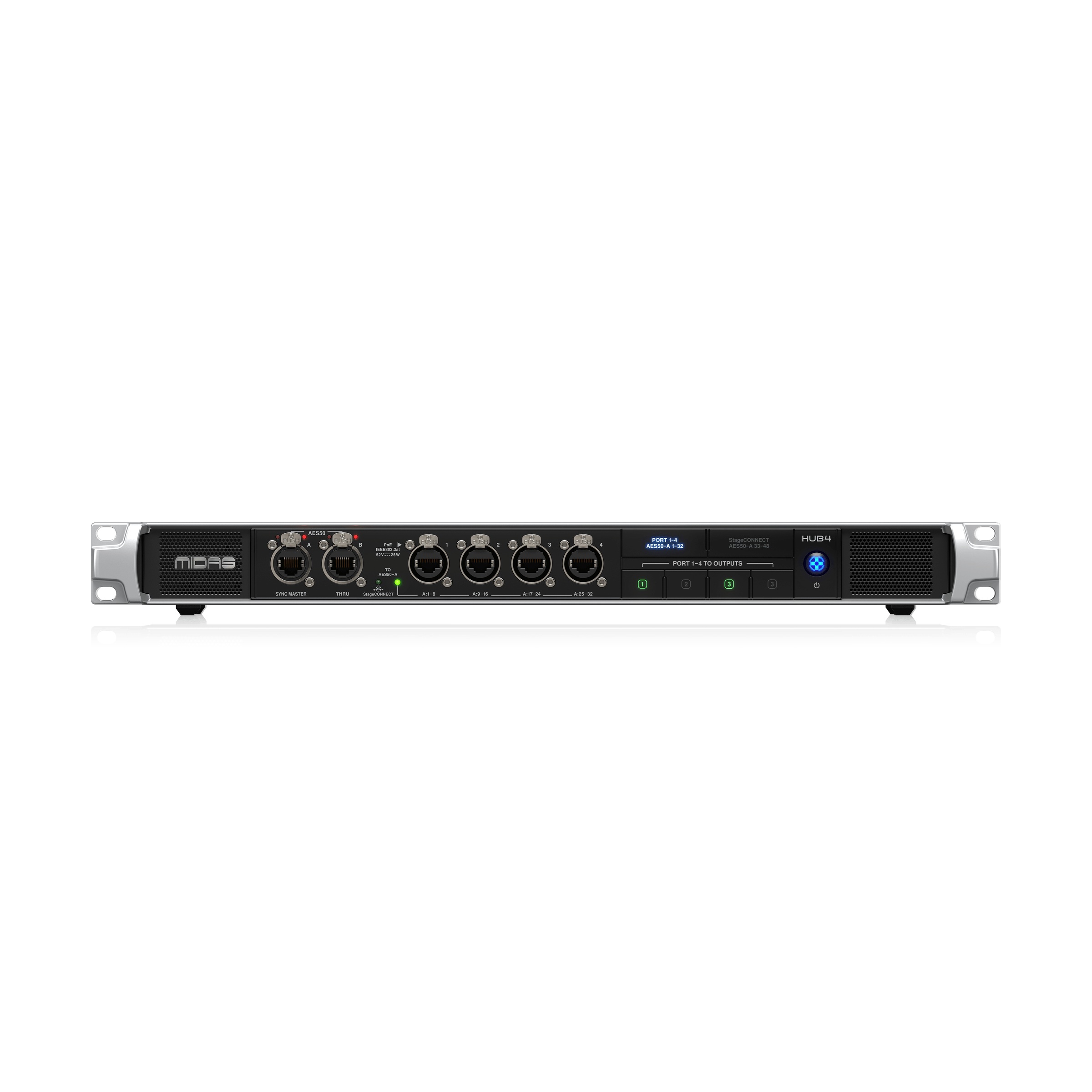

MIDAS HUB4 Monitor System Hub

Monitor System Hub with 4 PoE Ports for Personal Mixers or Compatible Stage Boxes, 48/44.1 kHz AES50 In and Through, StageCONNECT and 16-Channel Analogue Out

Personal Monitoring with DP48

Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio. HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.

Analogue Outputs for IEM Transmitters

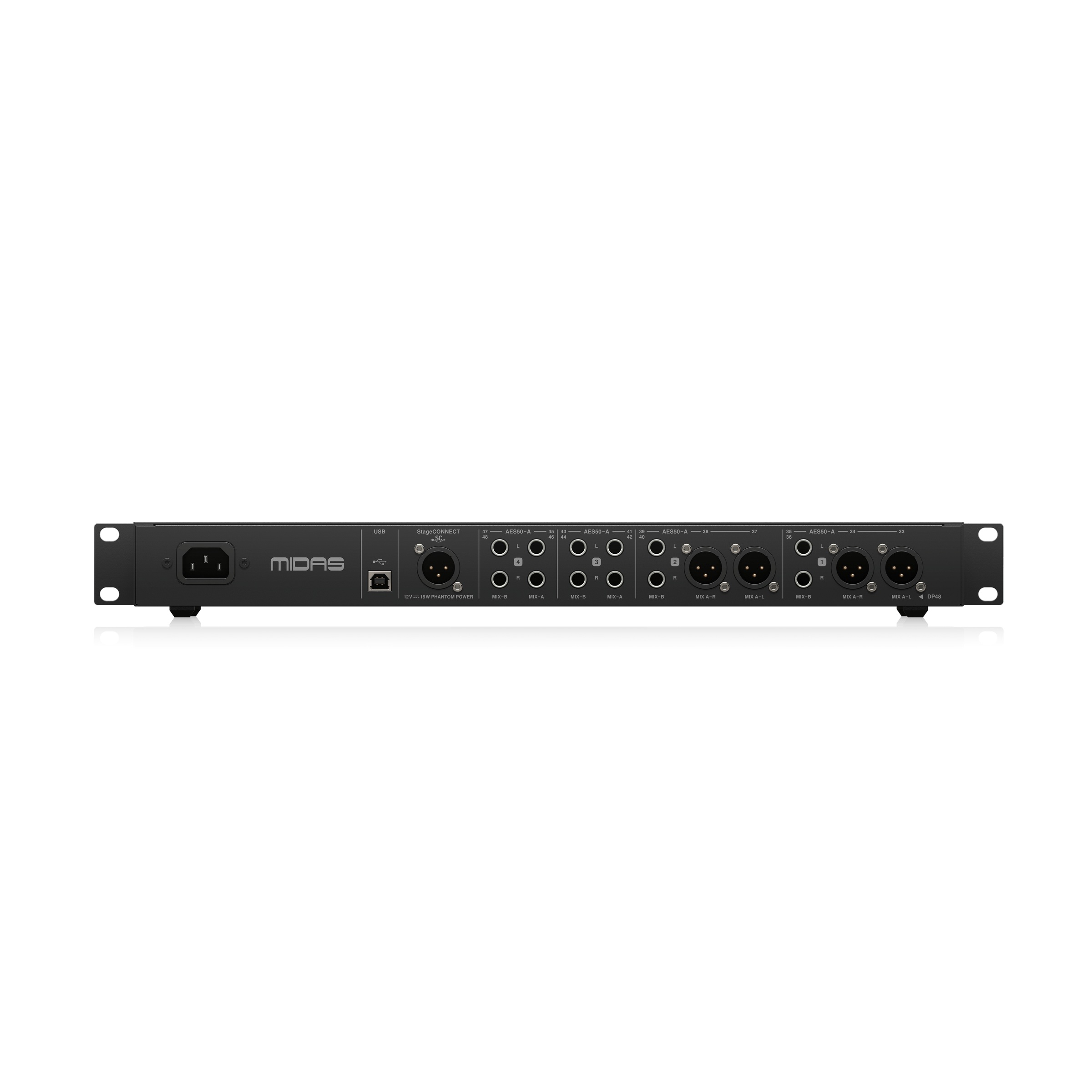

HUB4 features 16 balanced line-level outputs that can carry the 8 stereo mixes from the connected DP48 mixers for connections in the side rack. So there is no need to run additional lines from personal mixers to the transmitters, reducing setup time and reliability considerably. Alternatively, these analogue outputs can also be used as spare outputs on stage receiving signals directly from the FOH consoles, e.g. for providing talkback or side fill outputs.

• Supplies PoE (Power over Ethernet) for up to 4 DP48 personal mixers and compatible stage boxes
• AES50 connectivity for daisy-chaining hubs or stage boxes with 48 bidirectional channels of 24-bit/48kHz audio or 2 x 24 channels at 96kHz
• 16 analog outputs for sending personal stereo mixes to IEM transmitters
• Receives channel names and group assignments from compatible consoles
• Can also connect and power Midas stage boxes
• Personal mix outputs can be monitored via AES50 upstream to connected consoles
• Supports remote control forwarding of a personal mixer from another
• StageCONNECT port outputs 32 channels of low-latency audio via a single XLR cable
• Offers remote operation via Cat 5e cable
• Universal switch-mode power supply allows you to use your gear anywhere in the world
• Durable Neutrik etherCON ports, and a rugged, road-worthy chassis
