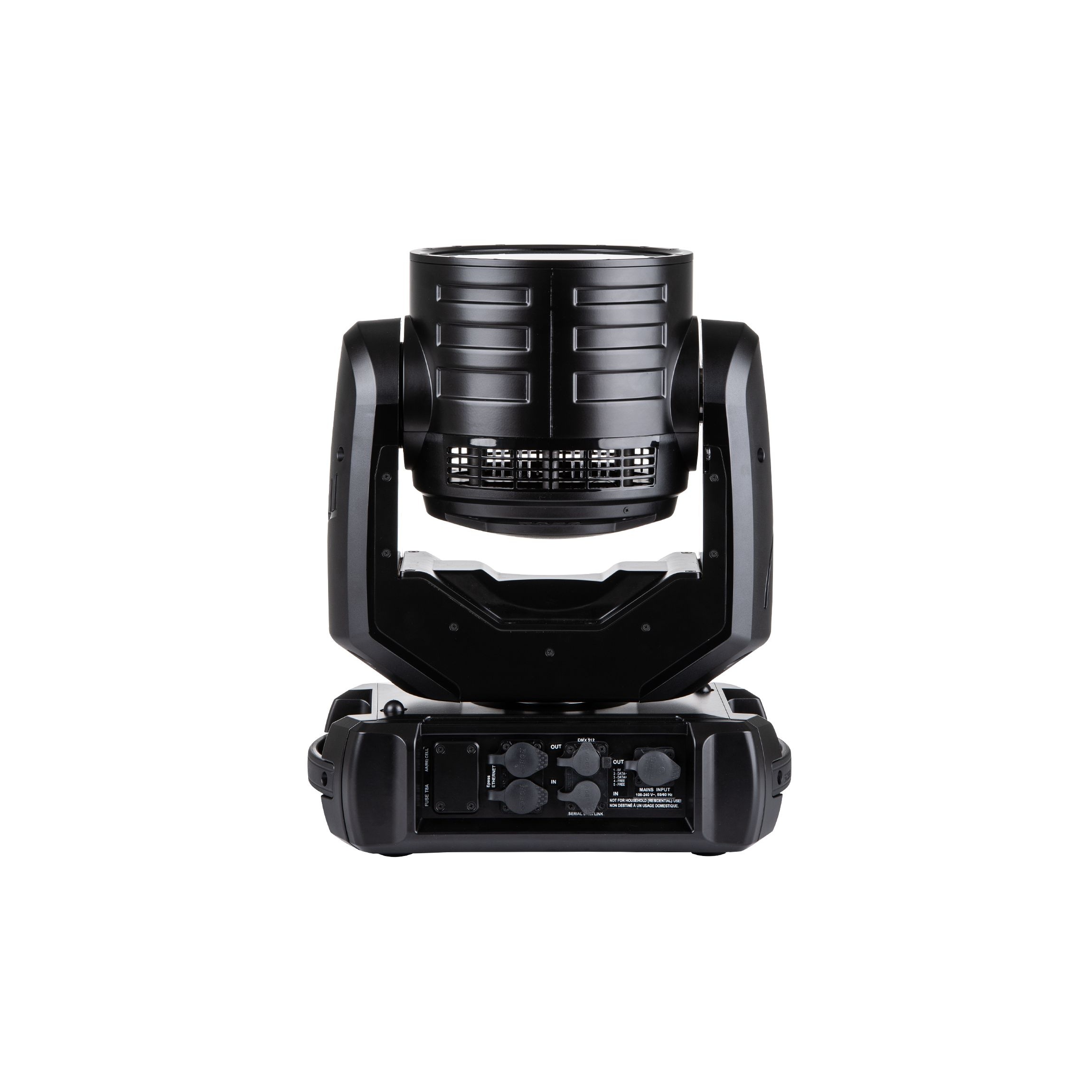

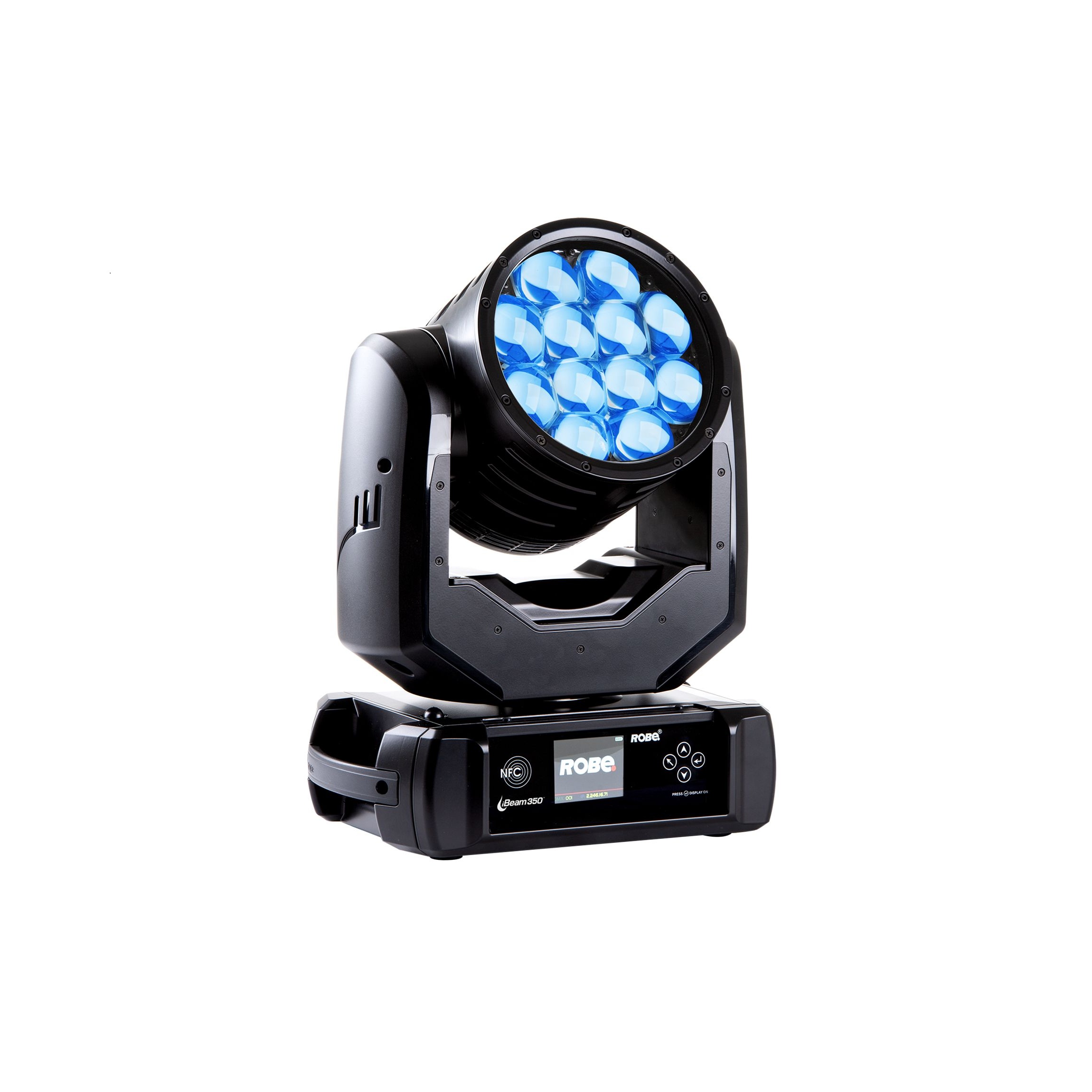

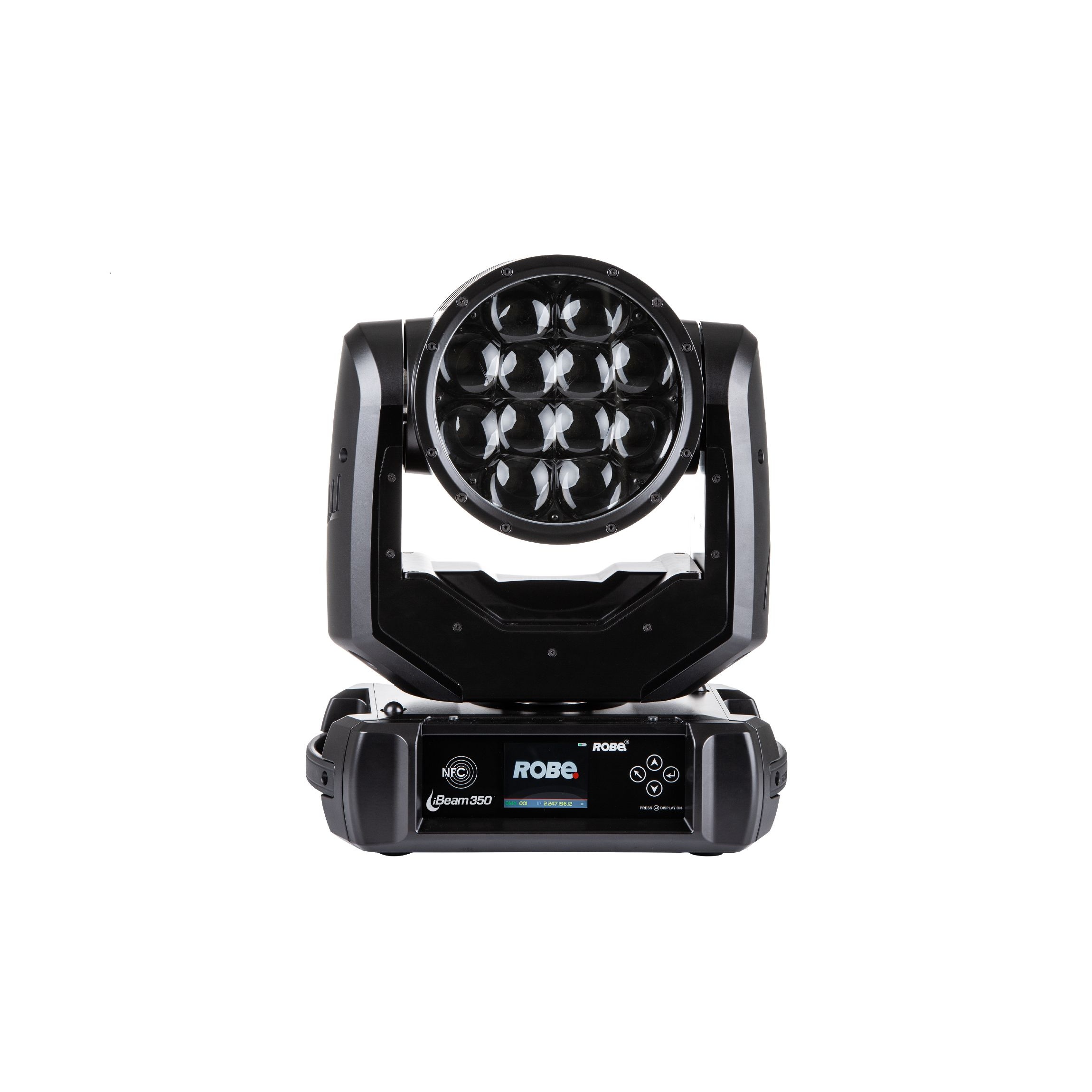

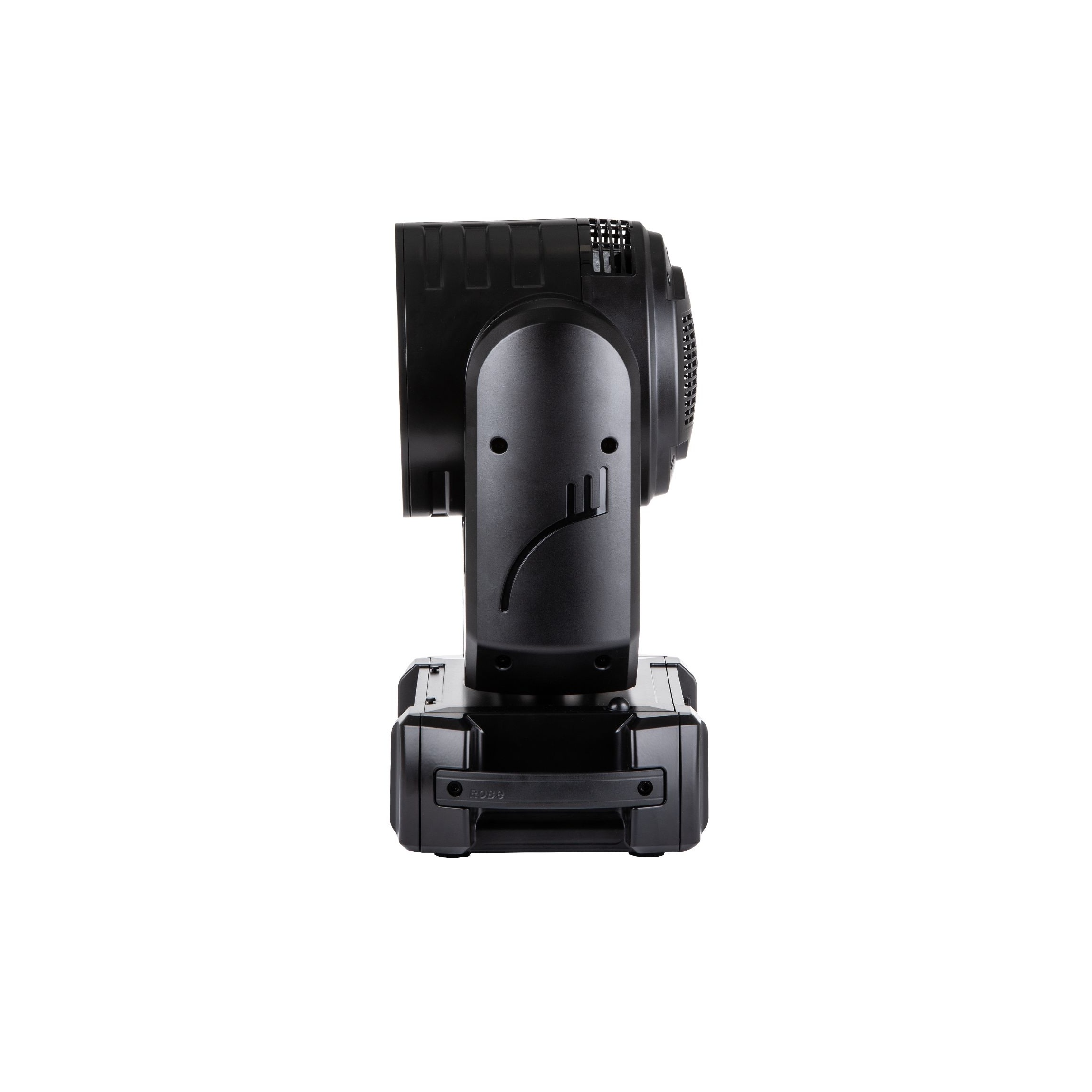

ROBE IBeam350 moving light

Joining the Robe iSeries, the IP65-rated iBeam 350™ retains all the qualities and features of its highly successful indoor brother, the LEDBeam 350™. Our groundbreaking, self-managing, low-maintenance ingress protection technology allows outdoor use of this classic indoor wash fixture by removing the threat of rain, dust, humidity, smoke or haze damage, even in the harshest conditions.
As with other fixtures in the iSeries they maintain an identical DMX map, similar footprint, and minimal weight difference the iBeam 350™ and LEDBeam 350™ can used within the same lighting rig!
The onboard patented RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control. This active monitoring system automatically removes any moisture detected within the fixture, providing constant monitoring to ensure peak performance.
Outdoor fixtures need to operate in extreme cold. iBeam 350™ contains an innovative POLAR+™ technology – a special standby mode with low power consumption, in which the fixture´s sensors and communications channels remain active. When activated, POLAR+™ automatically maintains an internal temperature level, giving instant operability down to minus 50 degrees centigrade!
The iBeam 350™ runs a self pressure test and sensors automatically log when a cover was removed and replaced. This self-test, taking under 3 minutes, provides an error message if gaskets and covers were not replaced correctly or locking screws tightened, ensuring maximum protection.
Their lightweight aluminium alloy structure provides a dust-free environment for the optics. This eliminates the need for frequent cleaning, routine maintenance, and UV damage to plastic parts.



分類: ,

Source
• Light source type: 12 x 40W RGBW multichips
• LED life expectancy: min. 50.000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system
• Robe’s proprietary optical design
• High-efficiency zoom optical system, ratio 13,5:1
• Zoom range: 3.8° – 52°
• Fixture total lumen output:
• 7.800 lm (integrating sphere)
• 6.250 lm (goniophotometer)
• Illuminance: 31.468 lx @ 5 m
• RLCT™ Innovative lens coating technology (Patent pending)

Dynamic Effects and Features
• Colour mixing mode RGBW or CMY
• White light: Variable CCT 2.700K – 8.000K
• DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K,
5.600K and 8.000K
• Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
• Motorized exceptionally quiet zoom
• Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 – 100%
• L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
• Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
• Extremely quiet operation suitable for all types of production in Theatre and TV
• POLAR+™ for power saving and instant operation in extremely cold weather conditions
• 7.800 lm (integrating sphere)
• 6.250 lm (goniophotometer)

Movement
• Pan movement:
• 540° standard
• 450° reduced
• Tilt movement: 228°
• Movement control: Standard and Speed
• Controllable speed of Pan & Tilt movement
• Automatic Pan & Tilt position correction

Thermal specification
• Maximum ambient temperature: 45°C (113°F)
• Maximum surface temperature: 80°C (176°F)
• Minimum operating temperature: -5°C (23°F)
• Total heat dissipation: max. 1153 BTU/h (calculated)

Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: Max. 450 W
• Power connector in: IP 65 Neutrik powerCON TRUE1 in
• DMX and RDM data in/out: IP 65 Locking 5-pin XLR
• Ethernet port in/out: RJ45, for Embedded Epass™ switch 10/100 Mbps
