Specifications
| System | |
| AF frequency response | 20 to 20,000 Hz |
| Dynamic range | > 120 dB(A) |
| THD (1 kHz) | typ. 0.1 % |
| Audio sampling | 24 bit/48 kHz |
| Signal-to-noise ratio | > 90 dB(A) |
| Encryption | AES 256 |
| RF frequency ranges | EU: 1,880 – 1,900 MHz USA: 1,920 – 1,930 MHz Brazil: 1,910 – 1,920 MHz Taiwan: 1,880 – 1,895 MHz Japan: 1,893 – 1,906 MHz |
| Modulation | GFSK with back channel |
| Transmission method | TDMA, space diversity |
| Latency | 19 ms |
| SL MCR DW | |
| RF sensitivity | < -90 dBm |
| RF output power back channel | adaptive or manual, up to 250 mW (country-specific) |
| Network protocol | Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6, mDNS (switchable) |
| Power supply | PoE IEEE 802.3af Class 3 |

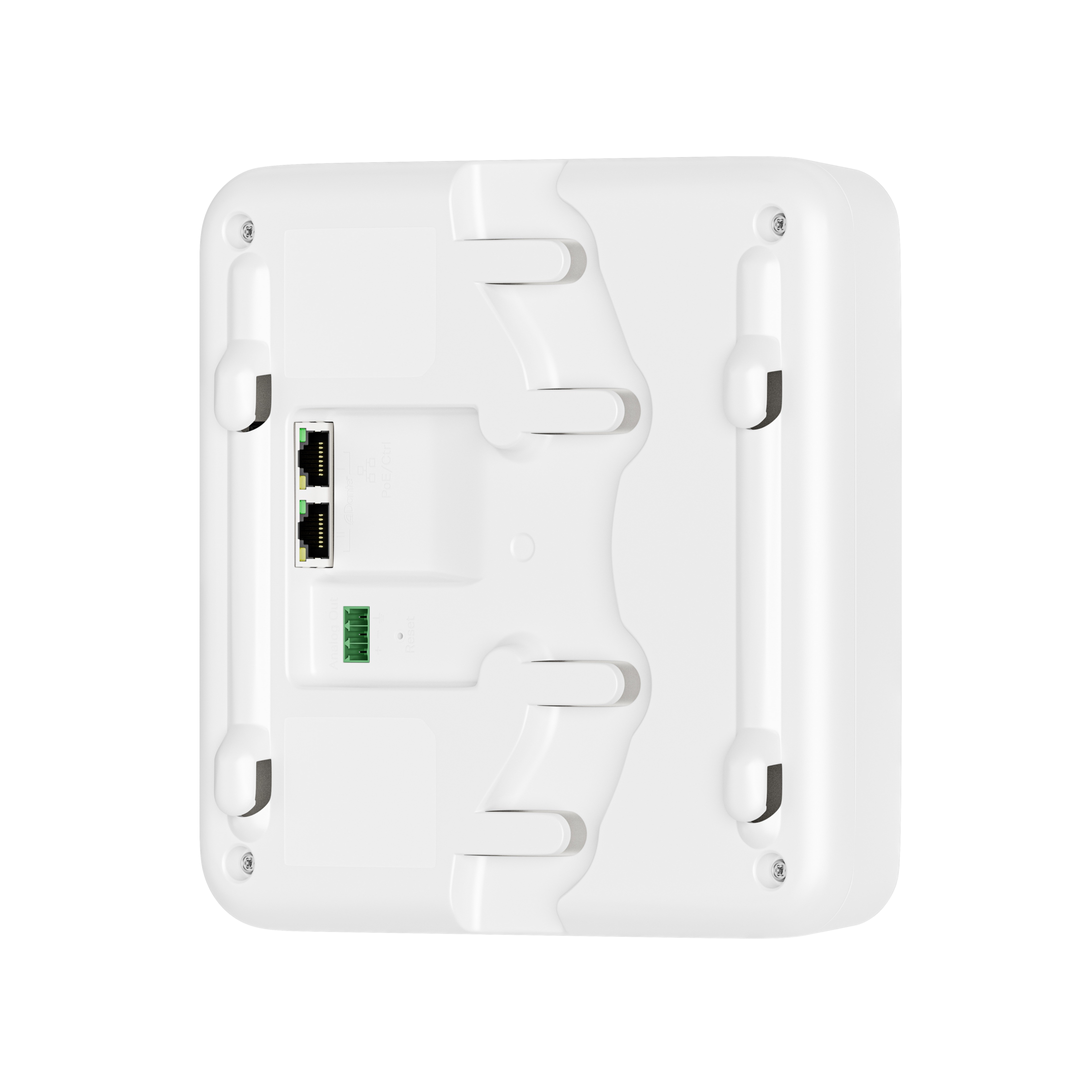

| Audio outputs | One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45) |
| Weight | 650 g (incl. wallmount) 560 g (without wallmount) |
| Dimensions | 180 x 180 x 45 mm (incl. wallmount) |
| Operating temperature | –10 °C to +45 °C (14 °F to 113 °F) |
| Storage temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
| Relative air humidity | max. 95 % |
